The 400 V high-pressure spiral pump airless sprayer
Benefits at a glance
- For paste-like materials
- For coarse-particle materials
- Material hopper made of steel
- Very high delivery rate
- Continuously variable speed control using potentiometer
- Simple operation
The inoBEAM F70 is the 400 V high-performance delivery pump and is suitable for a wide range of indoor and outdoor applications. Especially suitable for restoration plasters,
single-layer sgraffito and concrete repair materials as well as floor levelling compounds or reprofiling mortar.
With the optional sets that are available, the delivery pump can be converted for various fields of application in just a couple of steps. This offers maximum flexibility on your construction site thanks to unlimited areas of application (spraying, bonding, filling, reinforcing, etc.).
Video
| Operating pressure | bar | up to max. 120 |
| Operating voltage | V/Hz/A | 400 / 50 / 32 |
| Drive performance | kW | 7,5 (frequency controlled) |
| Delivery rate (depending on the material) | l/min | max. 2 - 100 |
| Conveying distance (depending on the material) | m | max. 100 |
| Pressure height (depending on the material) | m | max. 50 |
| Nozzle size | " | max. max. 55 |
| Material container | l | 70 |
| Hose connection | " | 1 |
| Machine technique | Airless devices | |
| Dimensions (L x W x H) | mm | 1100 x 720 x 750 |
| Weight | kg | approx. ca. 140 |
inoBEAM F70 (HP) | |
| Airless spattling compounds | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Clear varnishes | |
| EP and PU injection resins | |
| External dispersion paints | |
| Fire protection coats | |
| Highly viscous materials | |
| Internal dispersion paints | |
| Pigmented varnishes | |
| Primers | |
| Silicate paints | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Stains | |
| Varnishes greater than 21°C | |
| Water-based varnishes | |
| Wood preservatives |
Basic module
Item no. 10044712
Scope of delivery
inoBEAM F70:
- Frame
- 4 running wheels
- Material hopper made of steel
- Gear motor
- Switching cabinet
- Tool set
- Assembly spray lubricant
- Operating instructions
Set “HP”-F70
for airless spraying of filling compounds and colour (17 l / 120 bar)
Item no. 10044743*
------------------------------------------
* For scope of delivery, see accessories
Set “HP”-F70
The delivery pump inoBEAM F70 can be converted into a high-performance 400 V airless sprayer using an optional set and just a few, easy steps.
A delivery rate of up to 17 l/min is achieved with 7.5 kW when processing spray-on filler.
Scope of delivery: High-pressure pump SPRAY, 20 m high-pressure hose 1“ and 2 m high-pressure hose 1/2“, airless gun, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle
Set “HP”-F70 (Article No. 10044743)

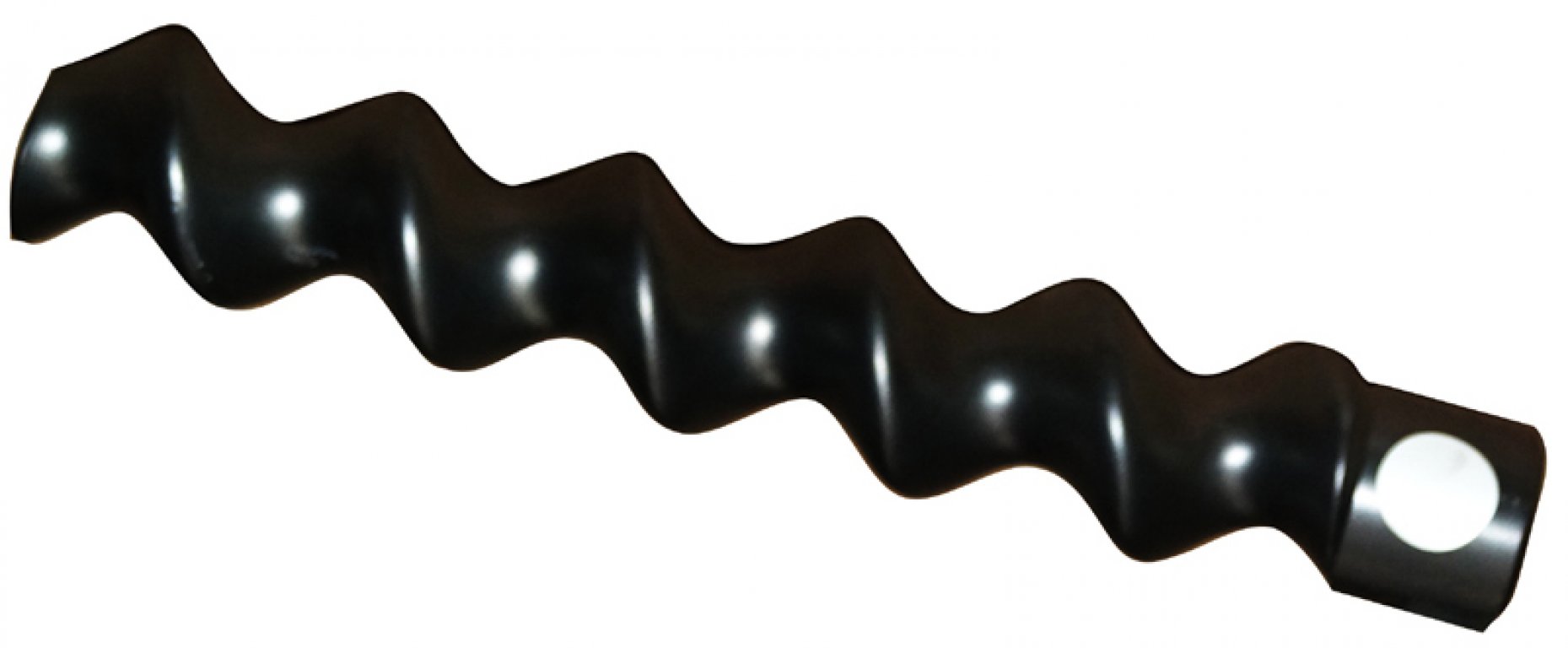

Ser “RS”-F50/-F70 (Rotor/stator R7-1.5 with clamping strip)
- Ø 115 mm, 50 l/min, 15 bar, e.g., for coarse-grained materials, such as sgraffito
Scope of delivery:
Suction flange, pressure flange, mortar pressure gauge, Rotor/stator R7-1.5 with clamping strip, coupling M part 50 (2” IG)
Ser “RS”-F50/-F70 (Rotor/stator R7-1.5 with clamping strip) (Article No. 10043791)
Set “Ü2”-F50/-F70 (rotor/stator 2R6)
- Ø 101 mm, 100 l/min, 30 bar - for e.g. floor levelling compound
Scope of delivery:
Suction flange, pressure flange, mortar pressure gauge, pump shaft with Rotex coupling, rotor/stator 2R6, coupling M part 50 (2” IT), 2 x eyebolts, 4 x M16 nuts, 2 x M16 threaded rods (270 mm), 2 x M16 double nuts
Set “Ü2”-F50/-F70 (rotor/stator 2R6) (Article No. 10043937)
Set “Ü1”-F50/-F70 (rotor/stator 1R6)
- Ø = 101 mm, 100 l/min, 15 bar, e.g., for floor levelling compound
Scope of delivery:
Suction flange, pressure flange, mortar pressure gauge, pump shaft with Rotex coupling, rotor/stator 1R6, coupling M part 50 (2” IT), 4 x M16 nuts, 2 x M16 threaded rods (90 mm), 2 x M16 double nuts
Set “Ü1”-F50/-F70 (rotor/stator 1R6) (Article No. 10043790)

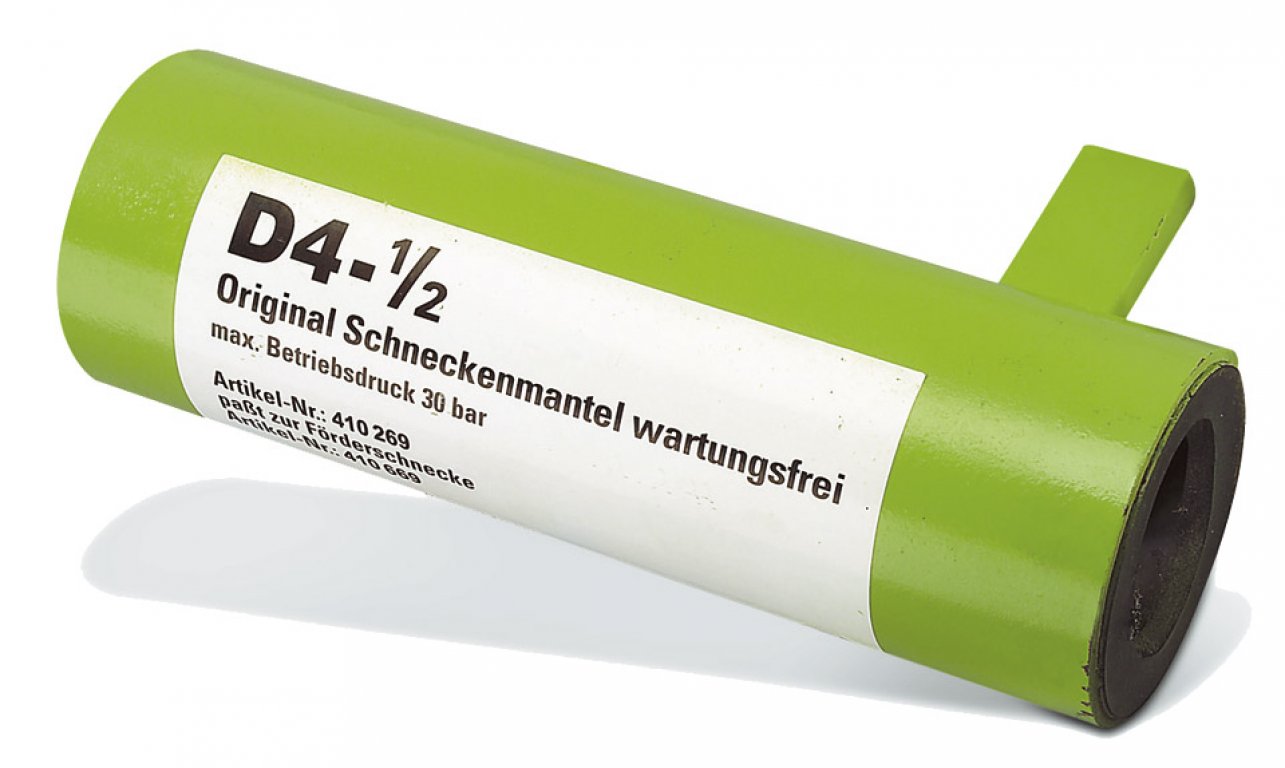

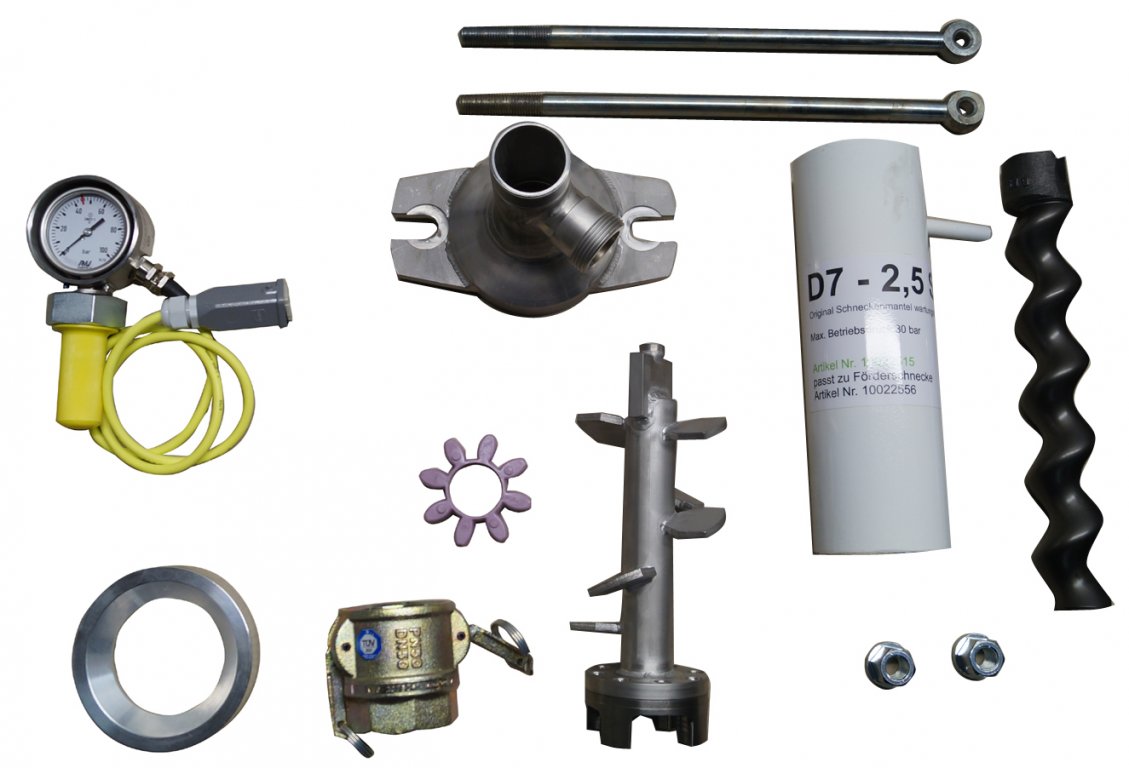

Set “D”-F50/-F70 (Rotor/stator D7-2.5 S)
- Ø 89 mm, 22 l/min, 40 bar, e.g., for spray applications
Scope of delivery:
Pressure and suction flange, mortar pressure gauge, pump shaft with Rotex coupling, rotor/stator D7-2.5 S, coupling M part 35 (1 1/2” IT), 2 x M16 collar nuts, 2 x eyebolts
Set “D”-F50/-F70 (Rotor/stator D7-2.5 S) (Article No. 10043978)

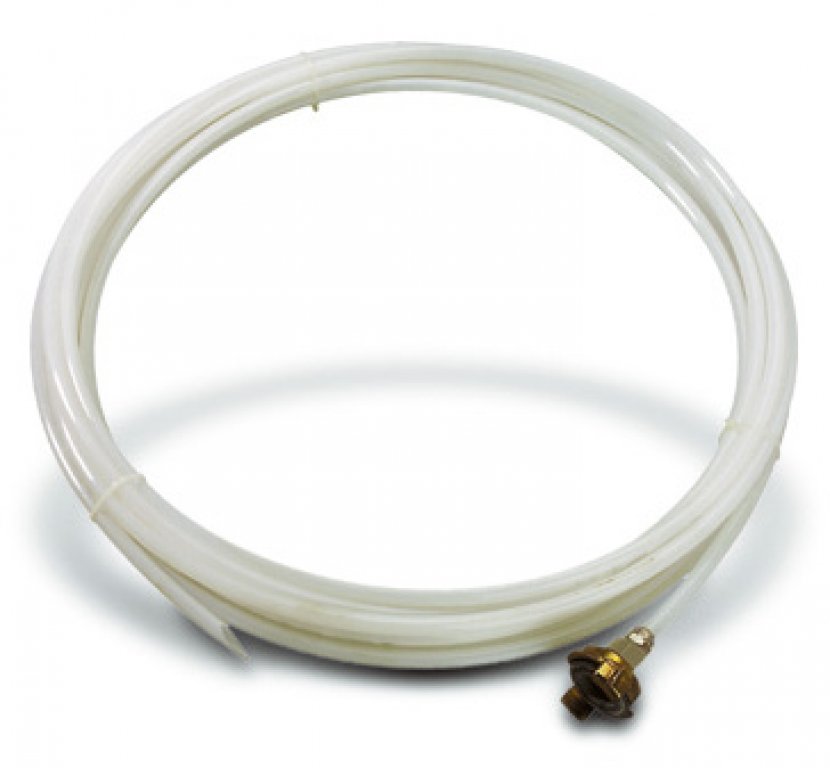

Ultralight hose
Ultralight hose with GEKA coupling (Ø 25 mm / 10 m) (Article No. 10043875)
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)

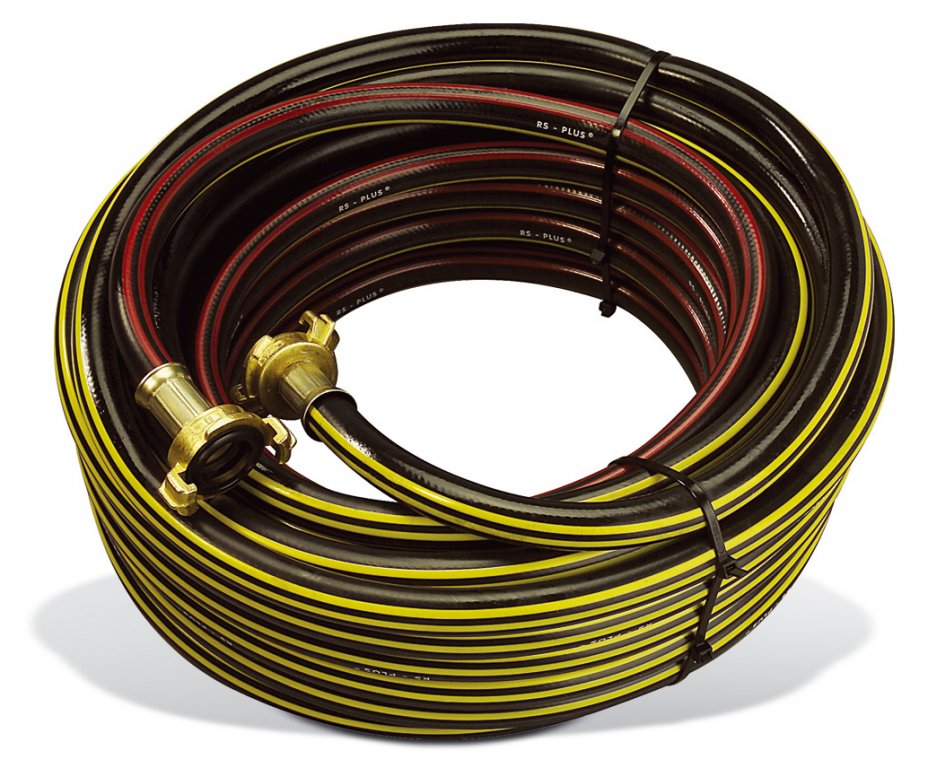

INOTEC mortar hose
- Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
- For an operating pressure of 40 bar with 3 times the reliability
- Yellow on the outside at Ø 35 mm
- Black on the outside at Ø 40 and Ø 50 mm
- With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
- With cam levers on the M-piece
| Technical data: | |
| Operating pressure: | 40 bar |
| Bursting pressure: | 120 bar |
Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)
Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)
Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)
Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)
Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)
Inotec mortar hose - Ø 40 mm - Length 13,3 m (Article No. 10041544)
Inotec mortar hose - Ø 40 mm - Length 20 m (Article No. 10041545)
Inotec mortar hose - Ø 50 mm - Length 13,3 m (Article No. 10008346-009)
Inotec mortar hose - Ø 50 mm - Length 20 m (Article No. 10008346-011)
High-pressure / hoses
(Article No. 10044636)
Flushing hose
- For clearing blockages in mortar hoses
Flushing hose - Length 10 m (Article No. 10024385)
400 V / 5 x 4 mm² extension cable
- 32 A plug and coupling
400 V / 5 x 4 mm² extension cable - Length 20 m (Article No. 10015201)

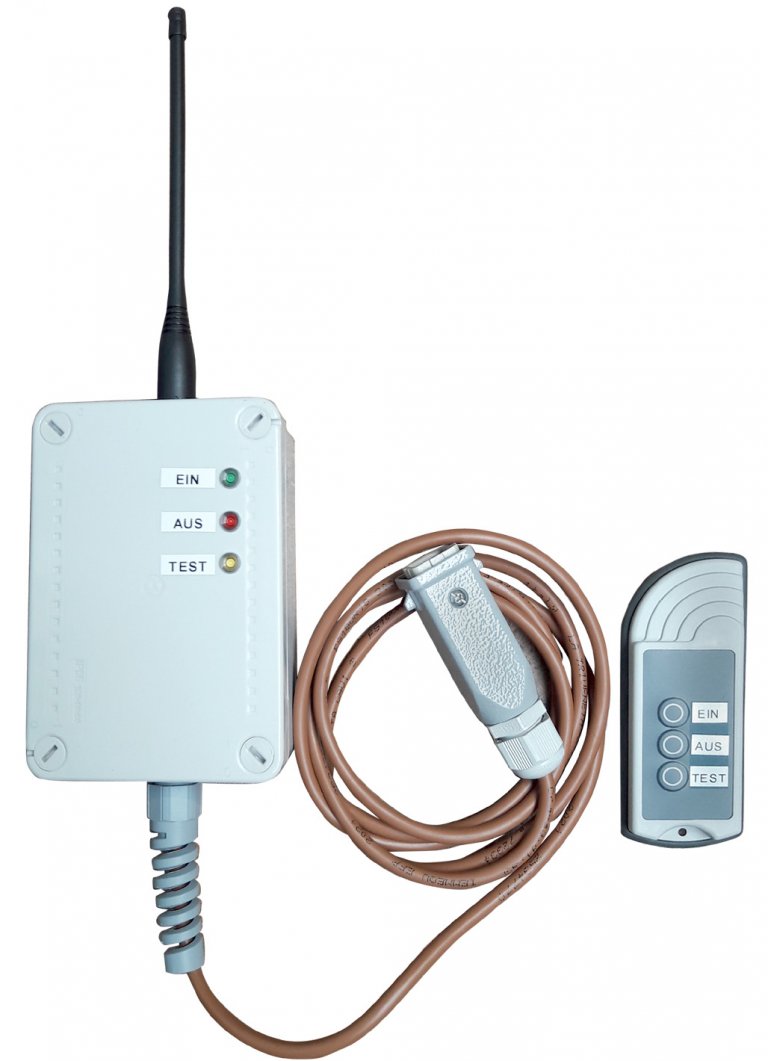

Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST
Wireless remote control (Article No. 10044303)

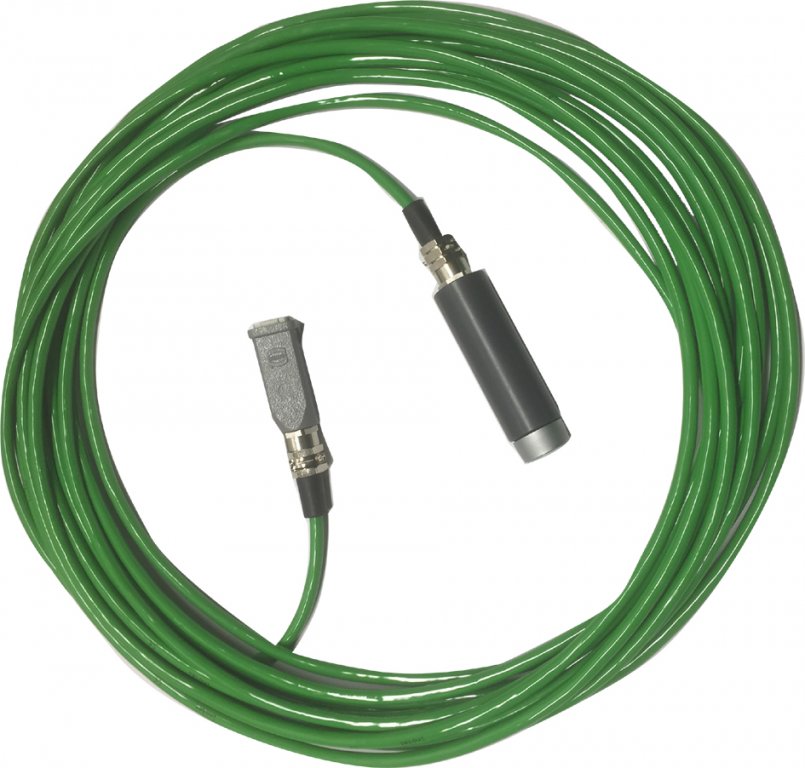

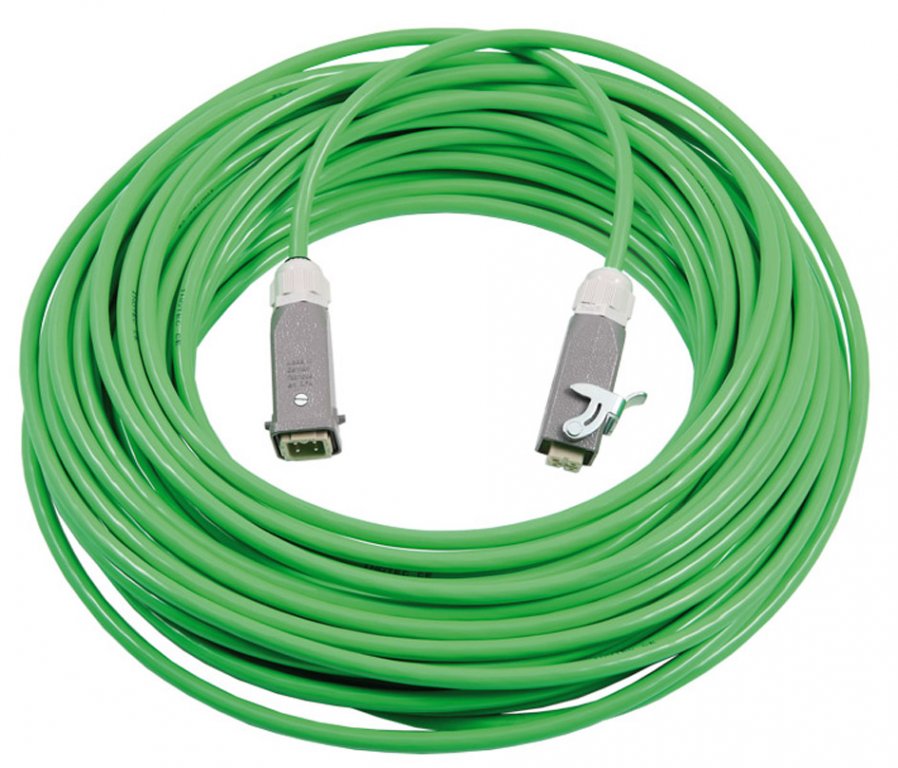

Remote control cable with remote control switch
Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)

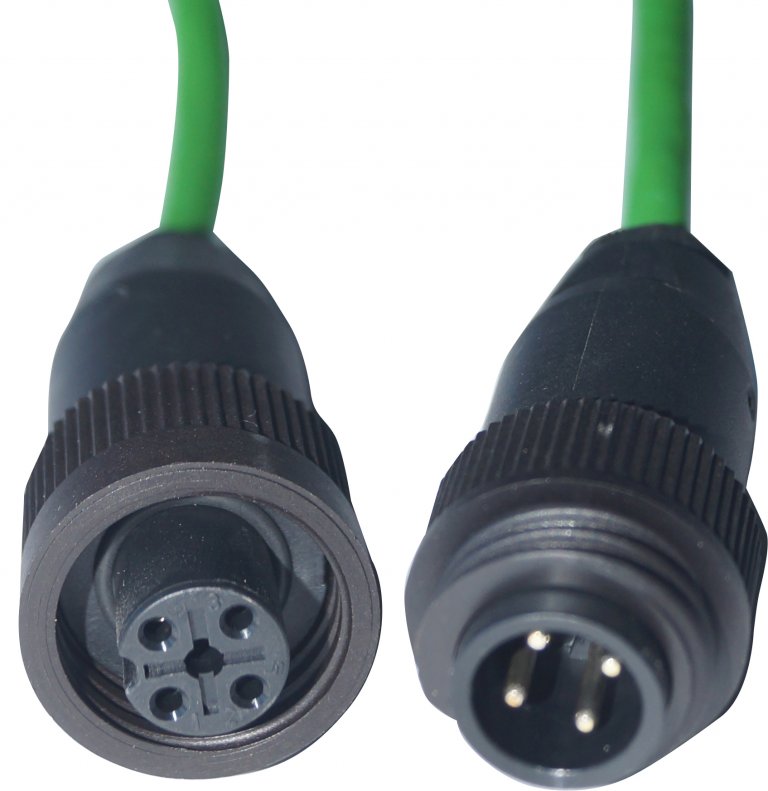

Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)
Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Remote control switch (Article No. 10015134)
Adapter for remote control cable
m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)

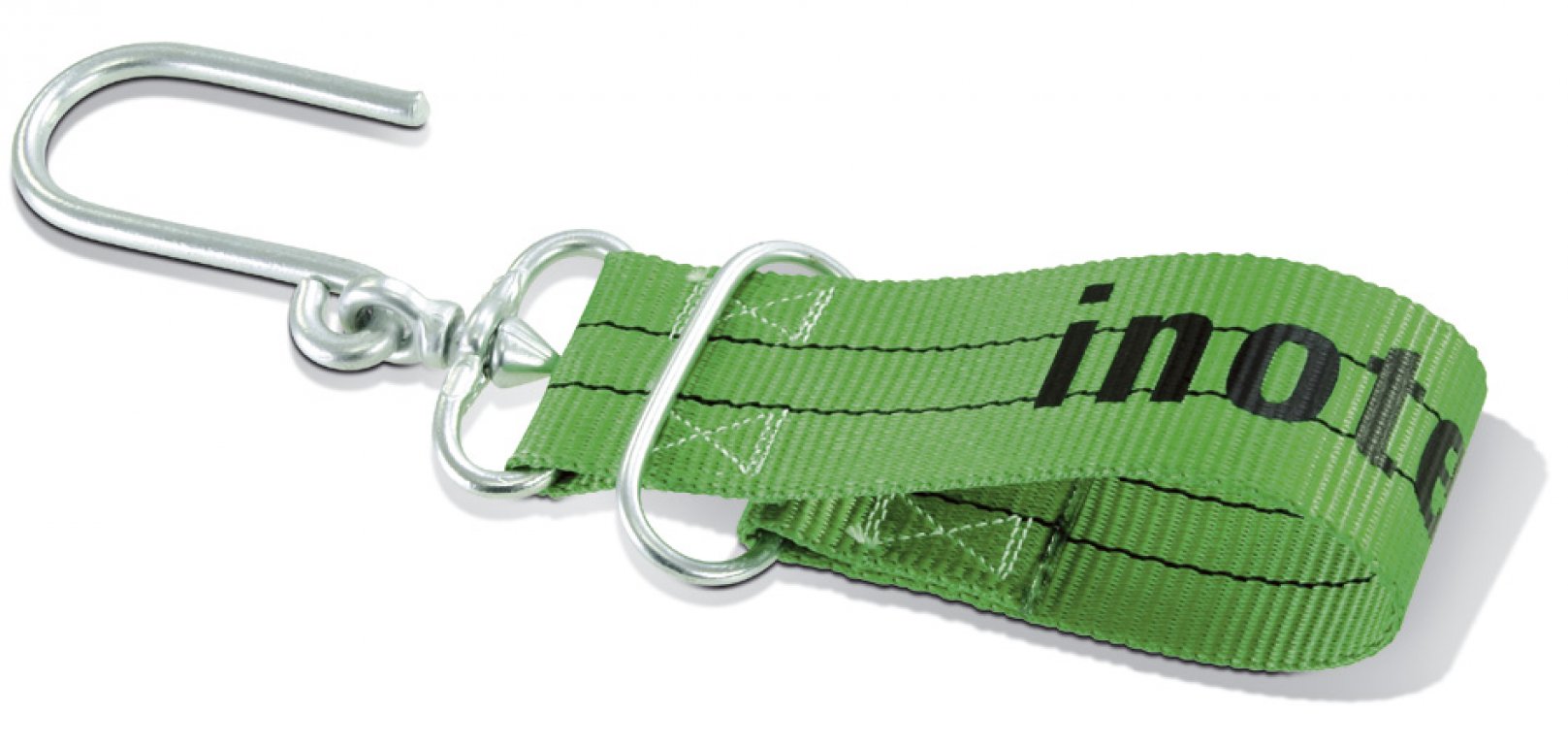

Hose holder
- For rapidly fixing hoses to the scaffold
Hose holder (Article No. 10018503)

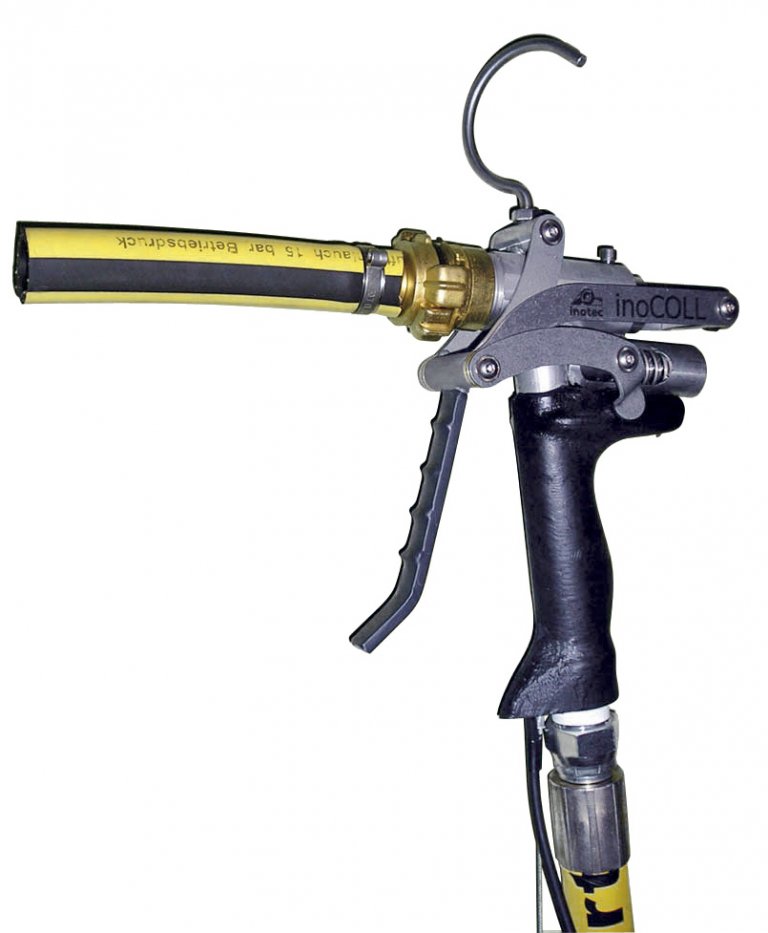

inoCOLL one-handed gun
- For bonding and basecoat mortars
- 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
- For grit sizes up to 1.5 mm
inoCOLL one-handed gun with mortar coupling (Article No. 10024144)
inoCOLL PRO one-handed gun with mortar coupling
- For bonding and basecoat mortars
- For particle sizes up to 4.0 mm
inoCOLL PRO one-handed gun with mortar coupling (Article No. 10041950)

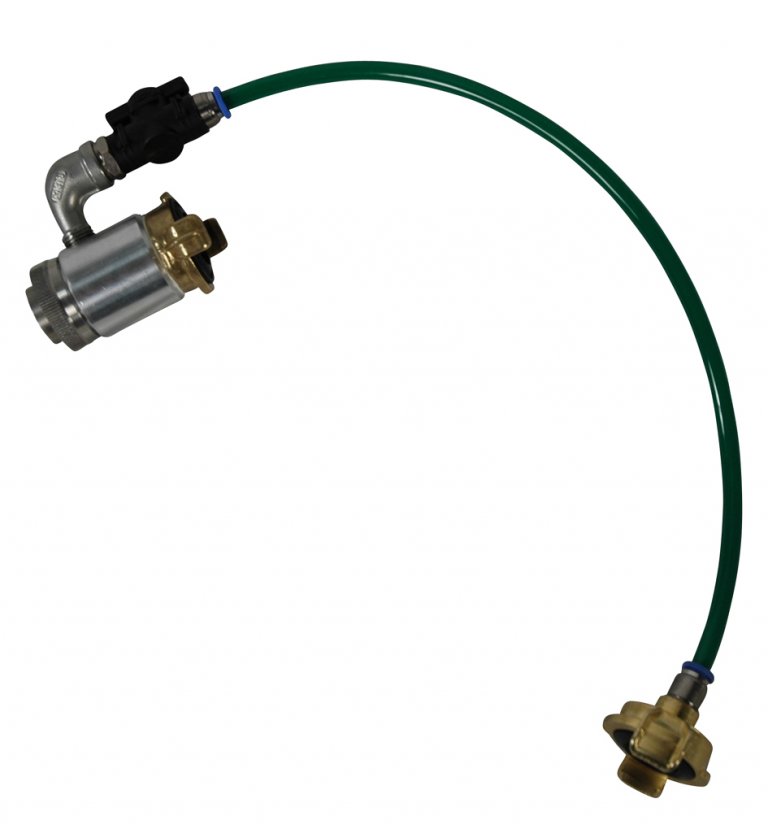

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)

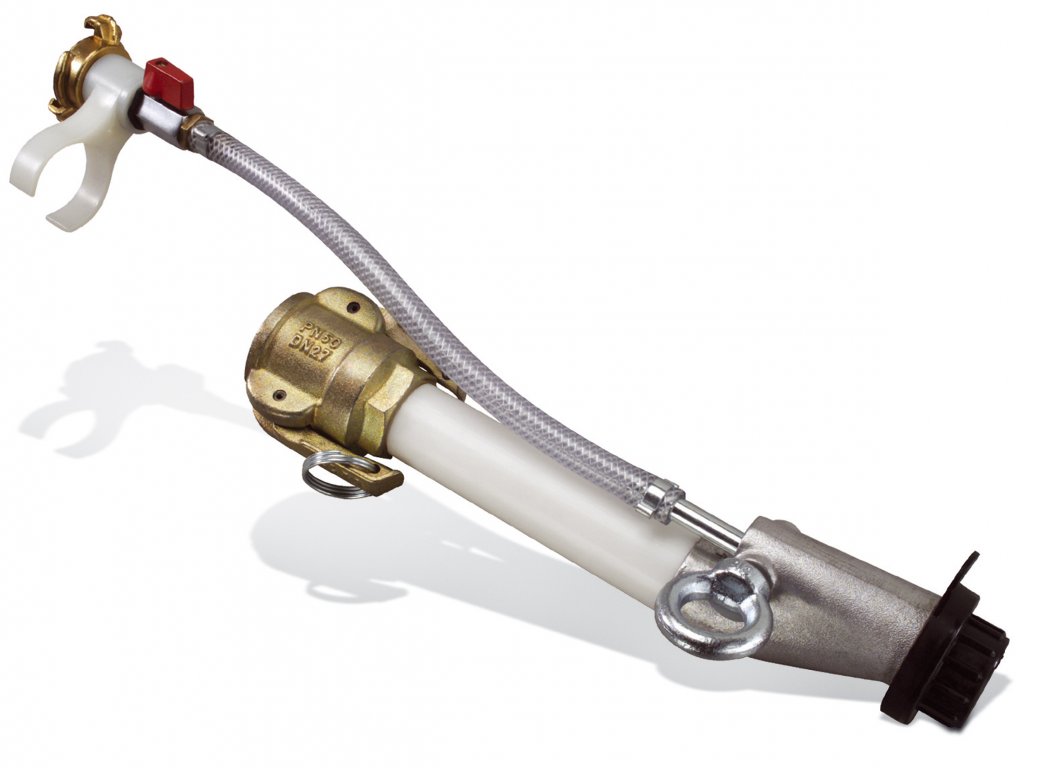

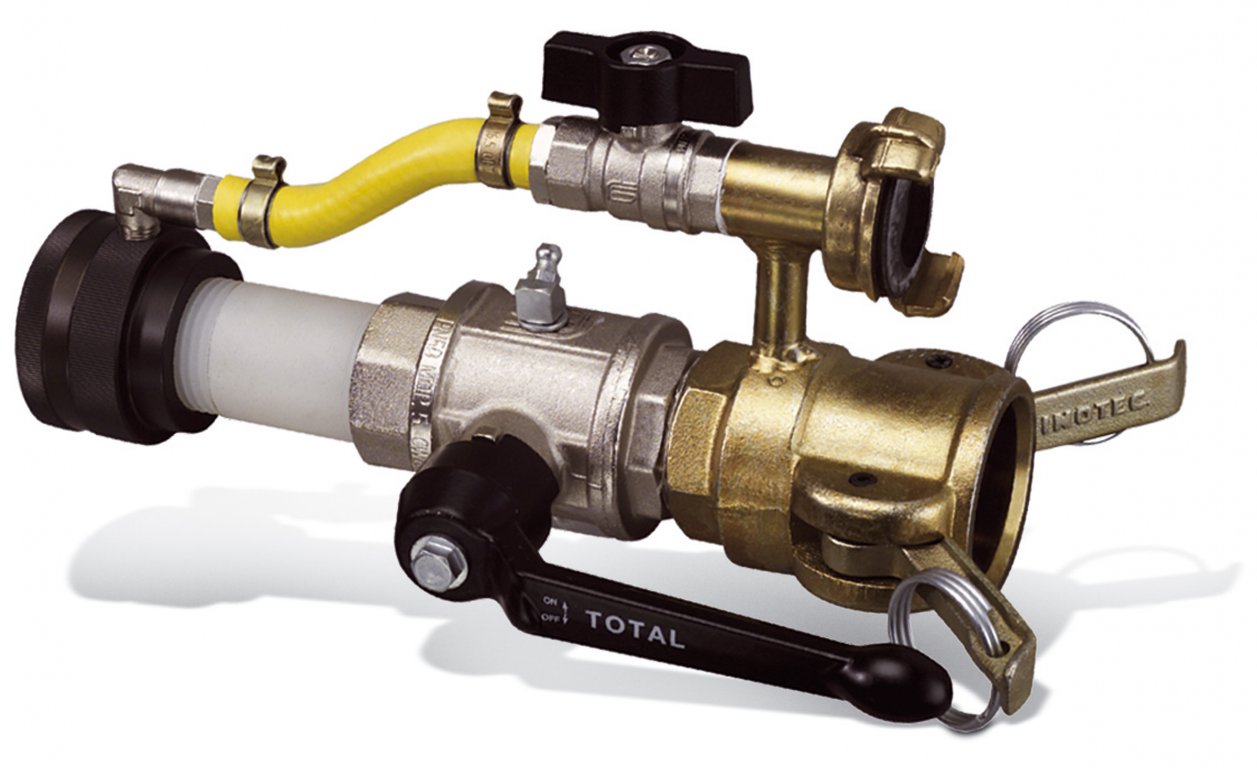

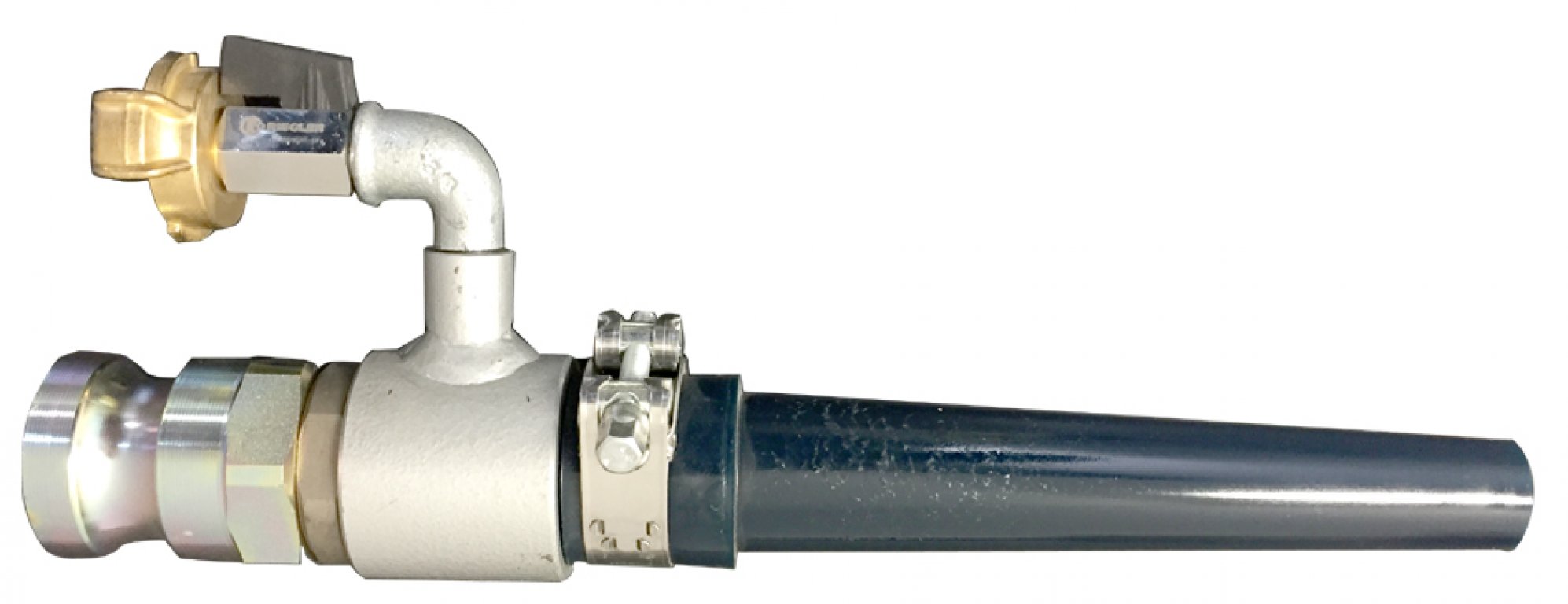

Short spray pipe with mortar coupling 25 mm
Short, lightweight spray pipe with L24 coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (air flow rate from 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.
- For particle sizes up to 3 mm
- Suitable for a 25 mm mortar hose
- Only in conjunction with remote control cable
Scope of delivery:
Short spray pipe with 2 m whip hose (Ø 19 mm), with mortar coupling 25 mm and 2 m air hose with GEKA coupling, without nozzles
Small spray pipe – short design (Article No. 10039887)
Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10044450)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10044445)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10044446)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10044447)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10044448)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10044449)
MAI finishing coat device, straight
- With 25 mm M-piece coupling
- Including a 14 mm jet nozzle
MAI finishing coat device, straight (Article No. 10024362)

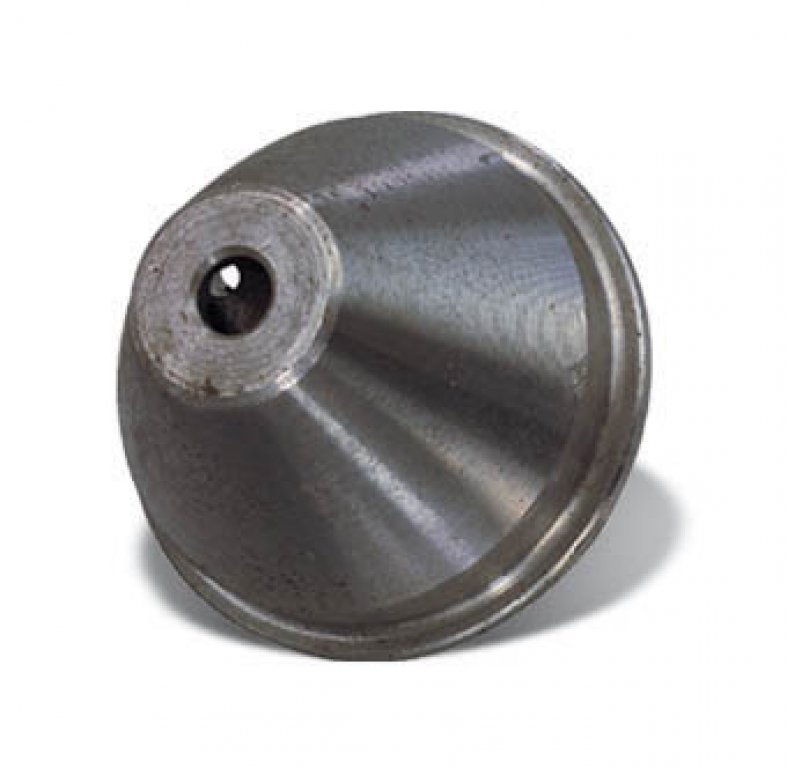

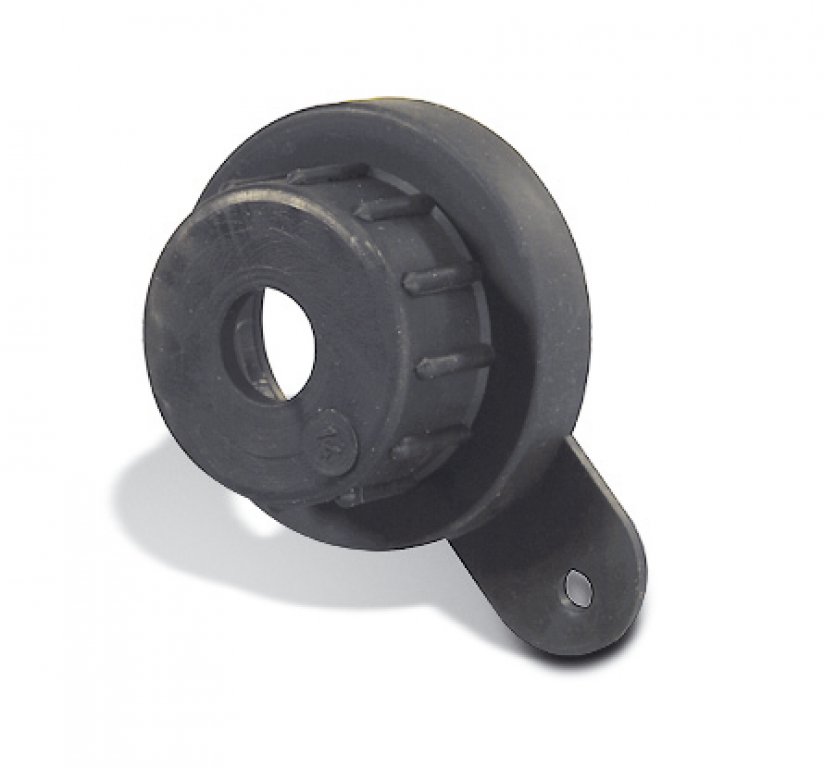

Jet nozzle
- For MAI finishing coat device
Jet nozzle - Ø 10 mm (Article No. 10024378)
Jet nozzle - Ø 12 mm (Article No. 10024379)
Jet nozzle - Ø 14 mm (Article No. 10024380)
Jet nozzle - Ø 16 mm (Article No. 10024381)
Straight finishing coat device
- With 25 mm M-piece coupling
- Incl. a 14 mm finishing coat nozzle
Straight finishing coat device (Article No. 10024098)

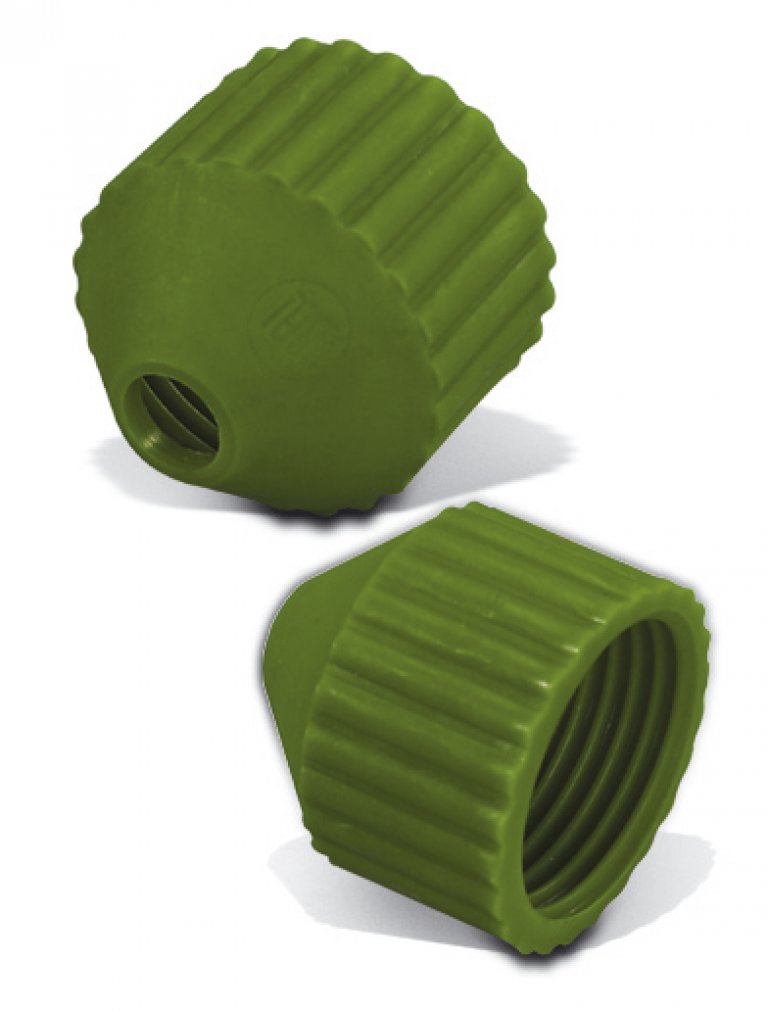

Finishing coat nozzles
- For finishing coat devices, item nos.:
10024098 / 10024099
Finishing coat nozzles - Ø 10 mm (Article No. 10024089)
Finishing coat nozzles - Ø 12 mm (Article No. 10024090)
Finishing coat nozzles - Ø 14 mm (Article No. 10024091)
Finishing coat nozzles - Ø 16 mm (Article No. 10024093)
Straight decorative plaster spraying device
- Not including nozzle with 25 mm M-piece coupling
- For grit sizes up to 6.0 mm
- Only in conjunction with remote control cable
Straight decorative plaster spraying device (Article No. 10024246)

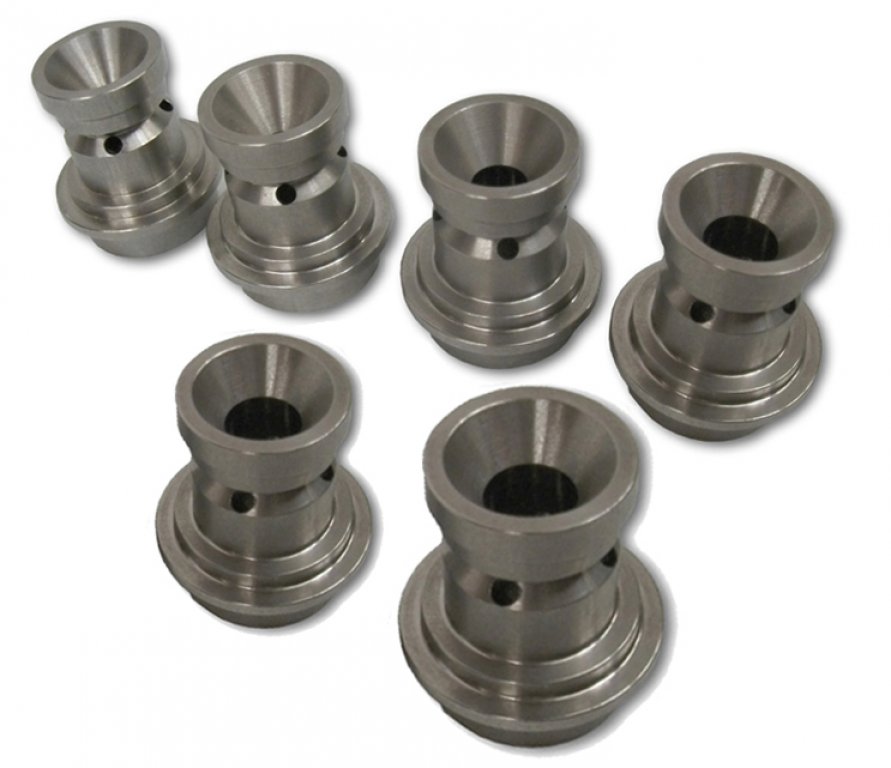

Nozzle for straight decorative plaster spraying device
- Made from stainless steel
Nozzle for straight decorative plaster spraying device - Ø 8 mm (Article No. 10024071)
Nozzle for straight decorative plaster spraying device - Ø 10 mm (Article No. 10024065)
Nozzle for straight decorative plaster spraying device - Ø 12 mm (Article No. 10024066)
Air quantity controller with EWO couplings
- For precisely adjusting the air quantity when spraying.
- Is connected between the air hose and spraying device.
Air quantity controller with EWO couplings (Article No. 10017793)

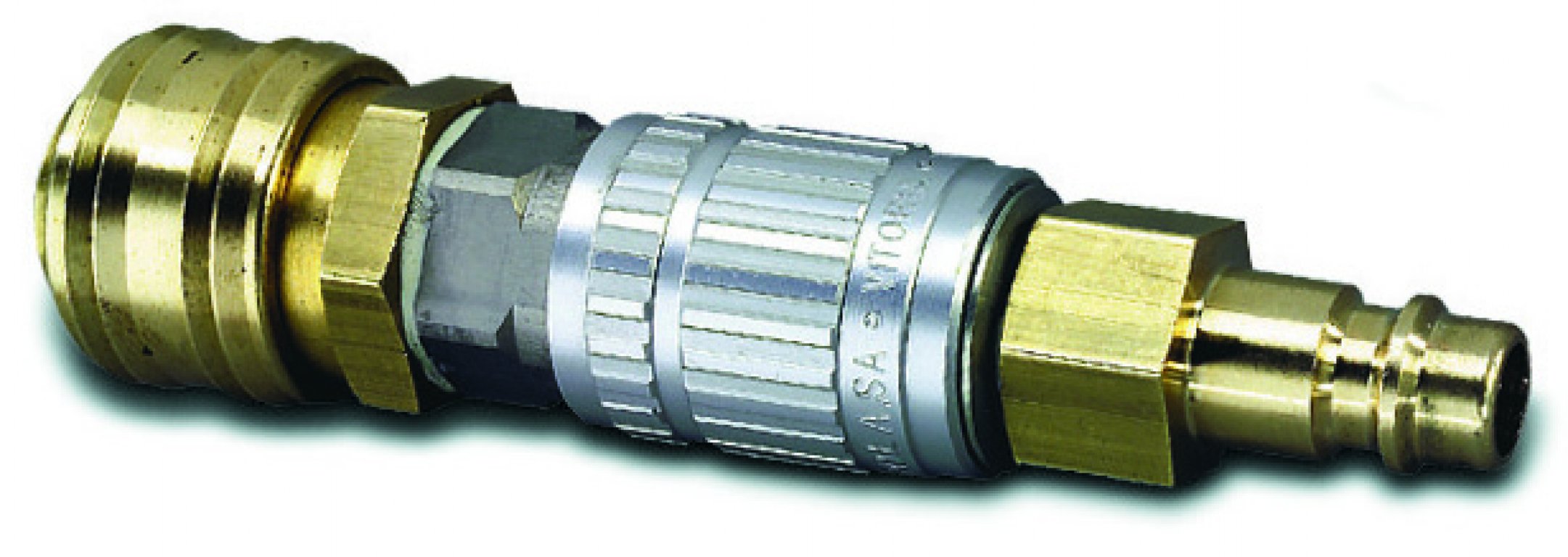

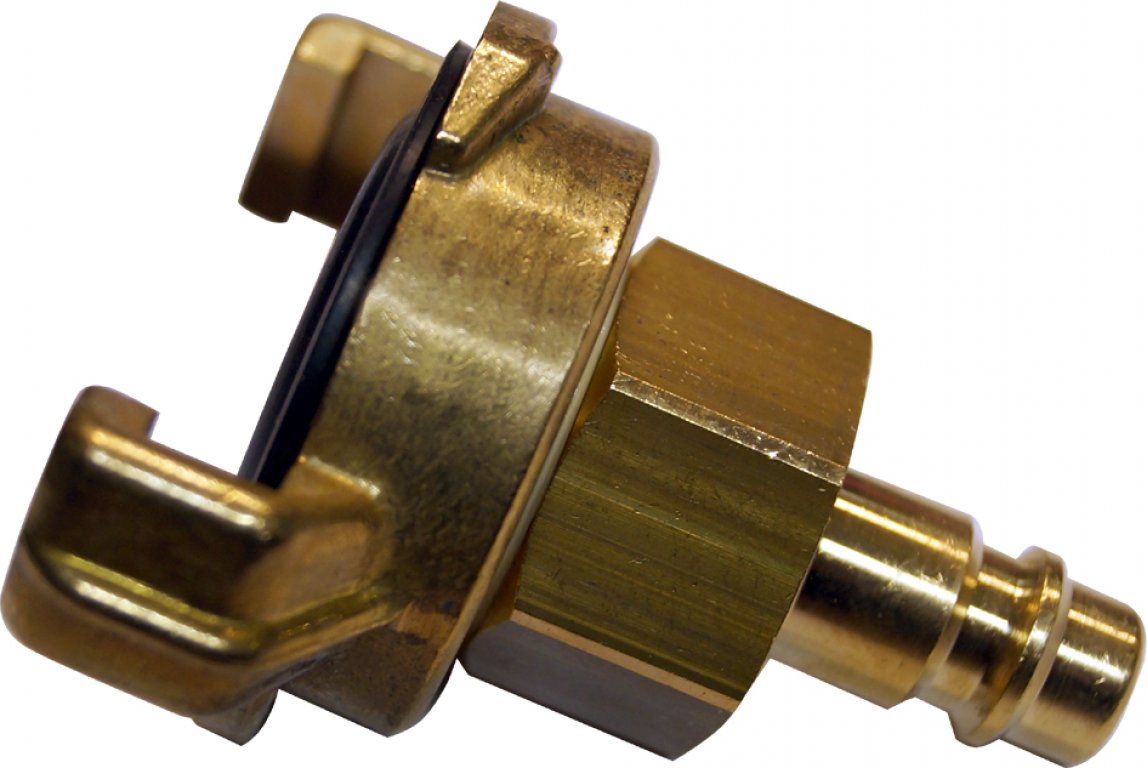

Connecting coupling for compressors
- EWO V-piece on GEKA
Connecting coupling for compressors (Article No. 10022353)

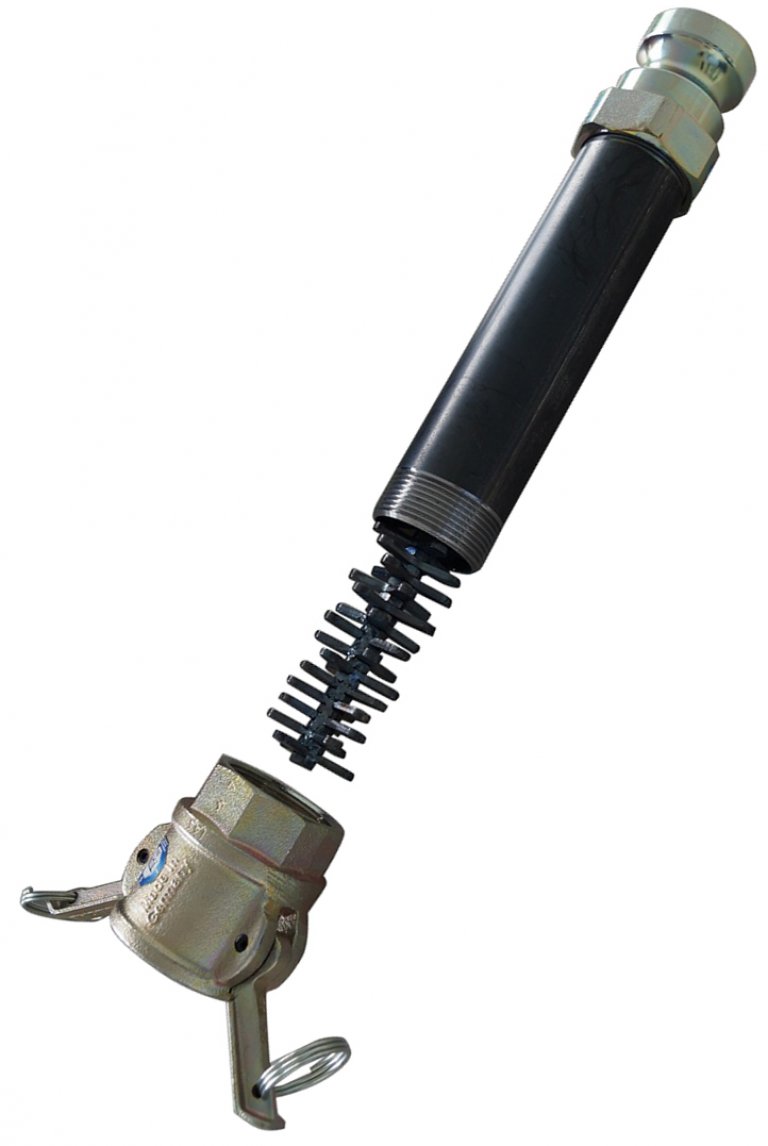

Static mixer
- Prevents / destroys node in mortar
- Diameter: 35 mm
- Length:200 mm
- incl. Coupling M-piece 35 mm and V-piece 35 mm
Static mixer (Article No. 10042362 )
Reprofiling sprayer
- Reprofiling sprayer 35 V with nozzle pipe 12 mm, connection 35 V-piece
Nozzle pipe 12 mm - for reprofiling sprayer (Article No. 10022789)
Nozzle pipe 15 mm - for reprofiling sprayer (Article No. 10022790)
Reprofiling sprayer (Article No. 10023309)

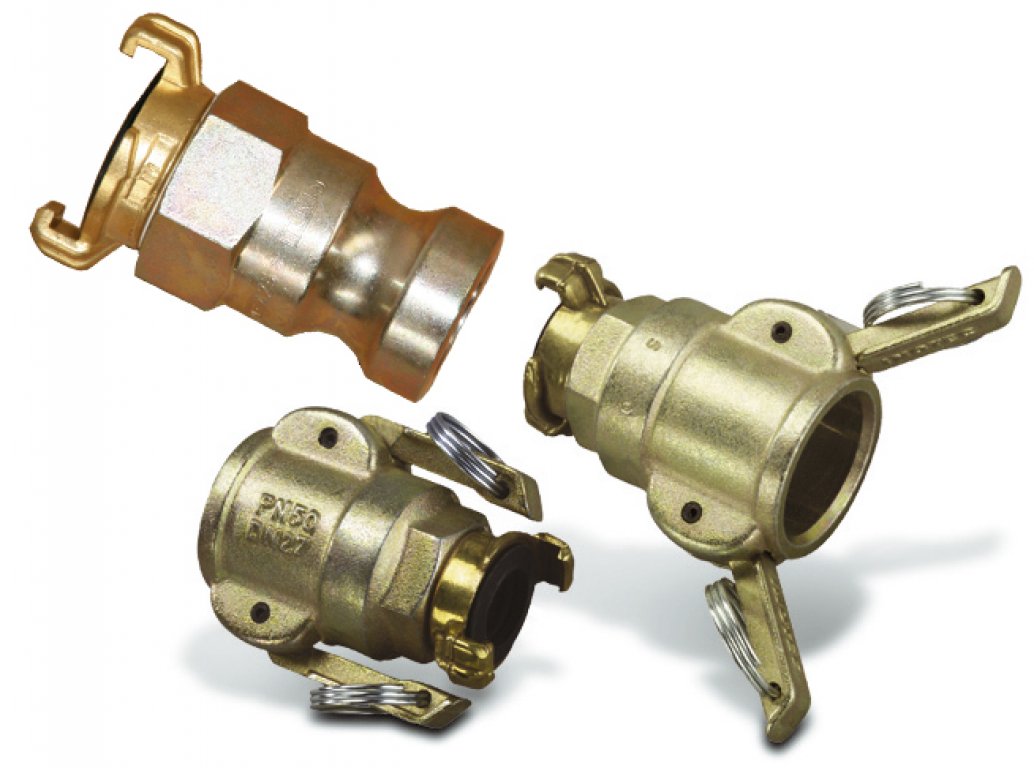

Coupling reducer
- For connecting two mortar hoses or reducing the machine outlet.
Coupling reducer 35 V -> 25 V (Article No. 10022101)
Coupling reducer: 42 M-piece -> 35 M-piece (Article No. 10022097)
Coupling reducer: 50 V-piece -> 35 M-piece (Article No. 10022100)
Coupling reducer: 50 V-piece -> 42 V-piece (Article No. 10041187)
Plaster piece for cleaning mortar hoses
Plaster piece 42-V-part (Article No. 10042213)
Plaster piece 50-M-part (Article No. 10022116)
Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)
Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)
Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)

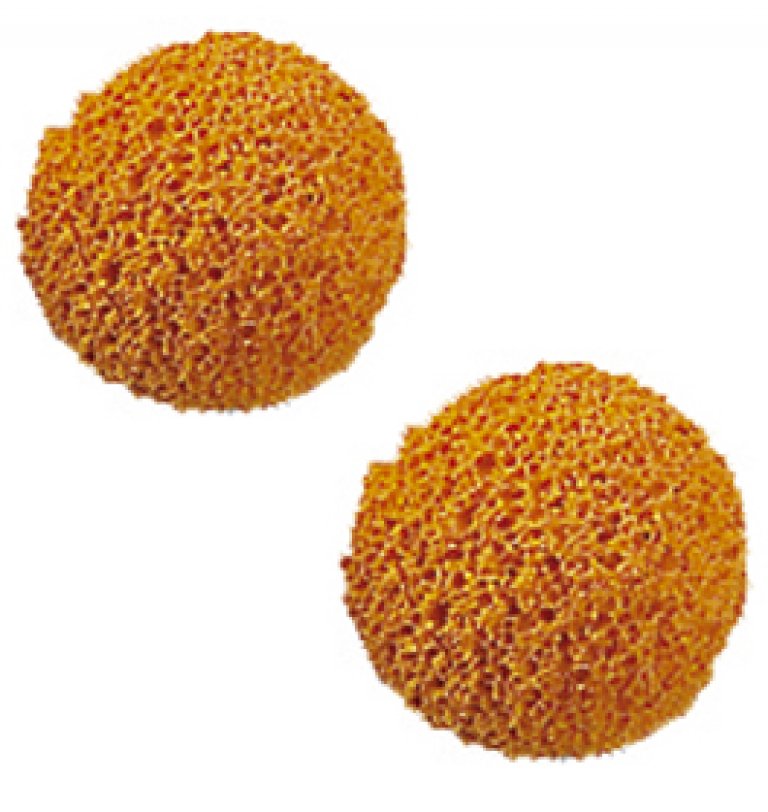

Sponge balls
- For cleaning material / mortar hoses
Sponge balls - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-007)
Sponge balls - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)
Sponge balls - Ø 60 mm for hose Ø 40 / 50 mm (Article No. 10008116-006)
KAESER 230 V Compressor Premium Car 450/30W
The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.
Technical data:
| Operating pressure: | 10 bar | |
| Suction capacity: | 450 l/min | |
| Output: | 2,2 kW | |
| Dimensions (L x W x H): | 870 x 560 x 590 mm | |
| Weight: | 86 kg |
KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)
230 V INOTEC Compact 330 compressor
The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.
| Technical data: | |
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | 32 kg |
230 V INOTEC Compact 330 compressor (Article No. 10034389)

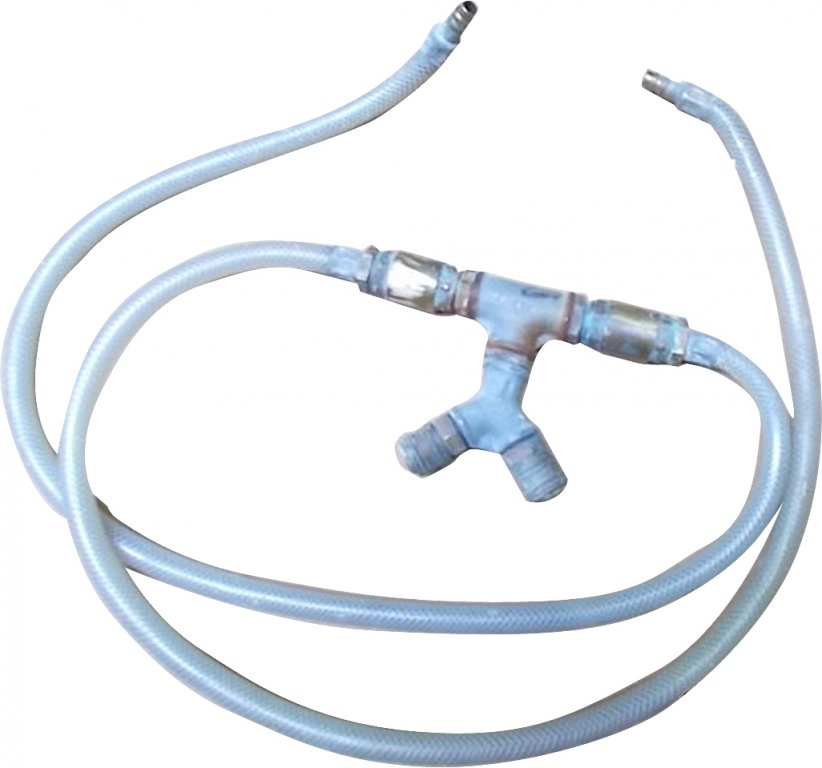

Connection unit for 2 INOTEC Compact 330 compressors
consisting of check valve and EWO coupling
- 2 x V parts
- 1 x M part
Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)

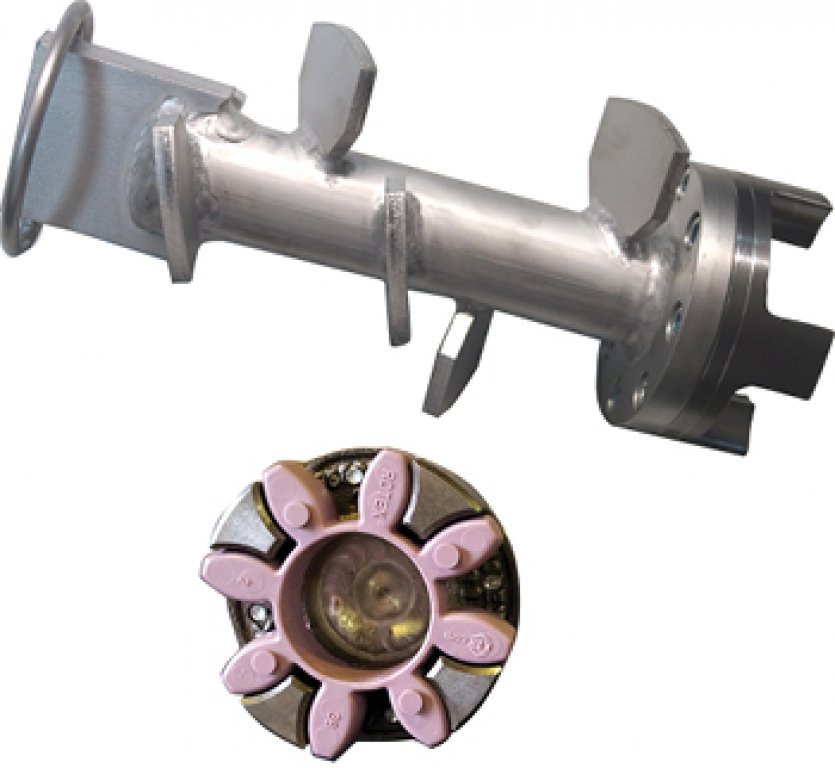

Pump shaft
Pump shaft for Cabrio set inoBEAM F50 “D” with Rotex coupling (without sprocket) (Article No. 10043853)
Pump shaft for inoBEAM F50/-F70 for set “Ü” with Rotex coupling (without sprocket) (Article No. 10041876)
Sprocket for Rotex coupling (Article No. 10041878)

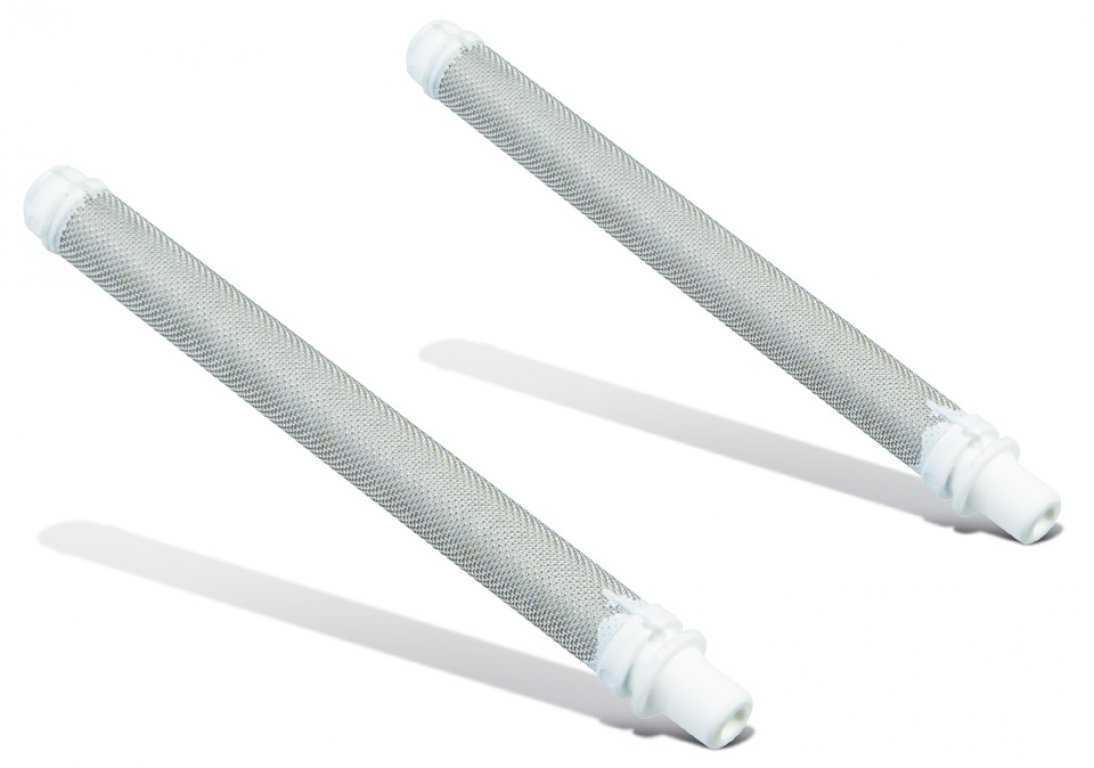

Gun filter for AG 500 L
Gun filter for AG 500 L - White (60 mesh) e.g. for dispersion paint (Article No. 10012364)

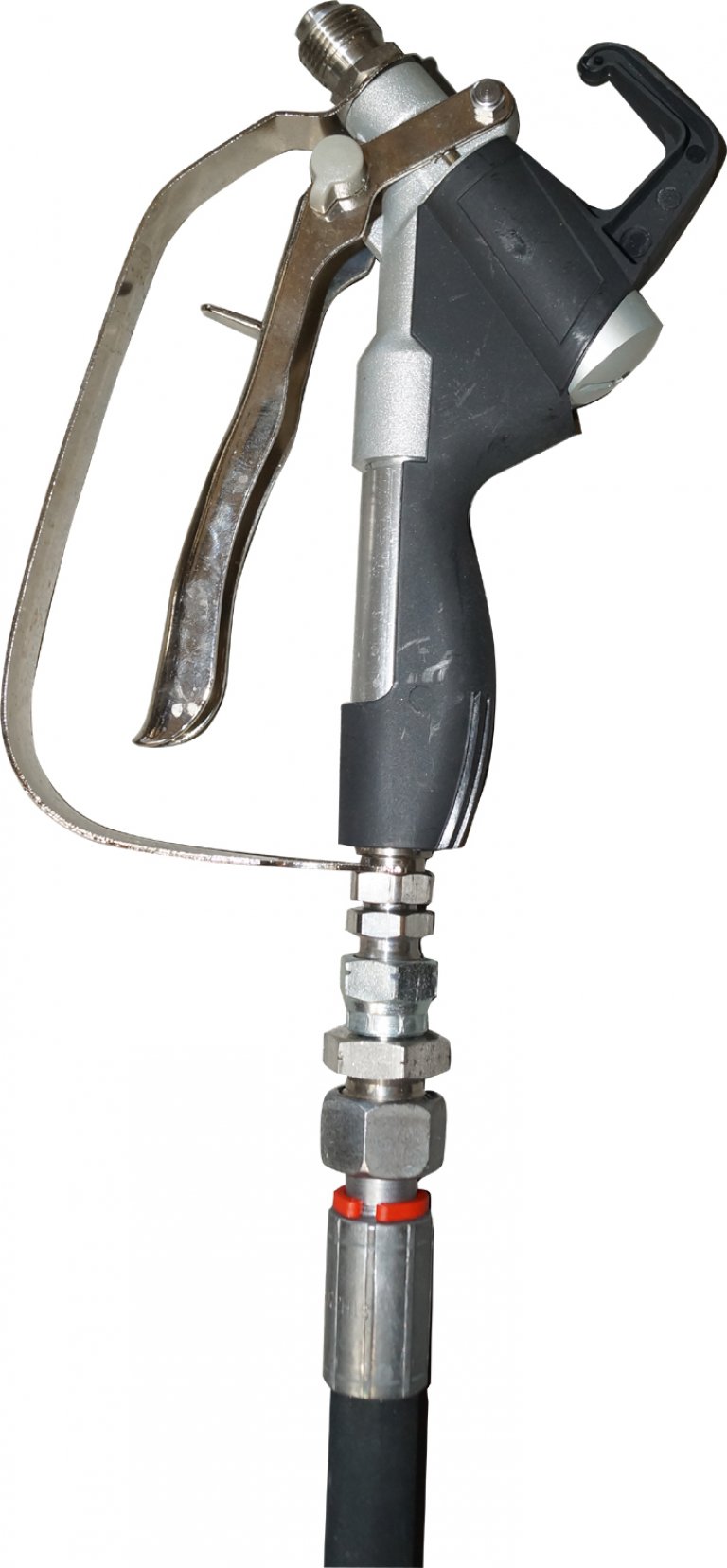

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP
- Connection 3/8” male, including swivel / Maximum pressure: 250 bar
Optional (not included in the scope of delivery):
- RAC X nozzle holder (for F12 HP, F30 HP, F70 HP)
- HDA nozzle 439 (for F12 HP)
- HDA nozzle 543 (for F30 HP)
- HDA nozzle 655 (for F70 HP)
- Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 1“ AG (for F70 HP)
INOTEC airless gun AG 190 LB for inoSPRAY M5 & M7, inoBEAM F12 HP, F30 HP and F70 HP (Article No. 10044654)

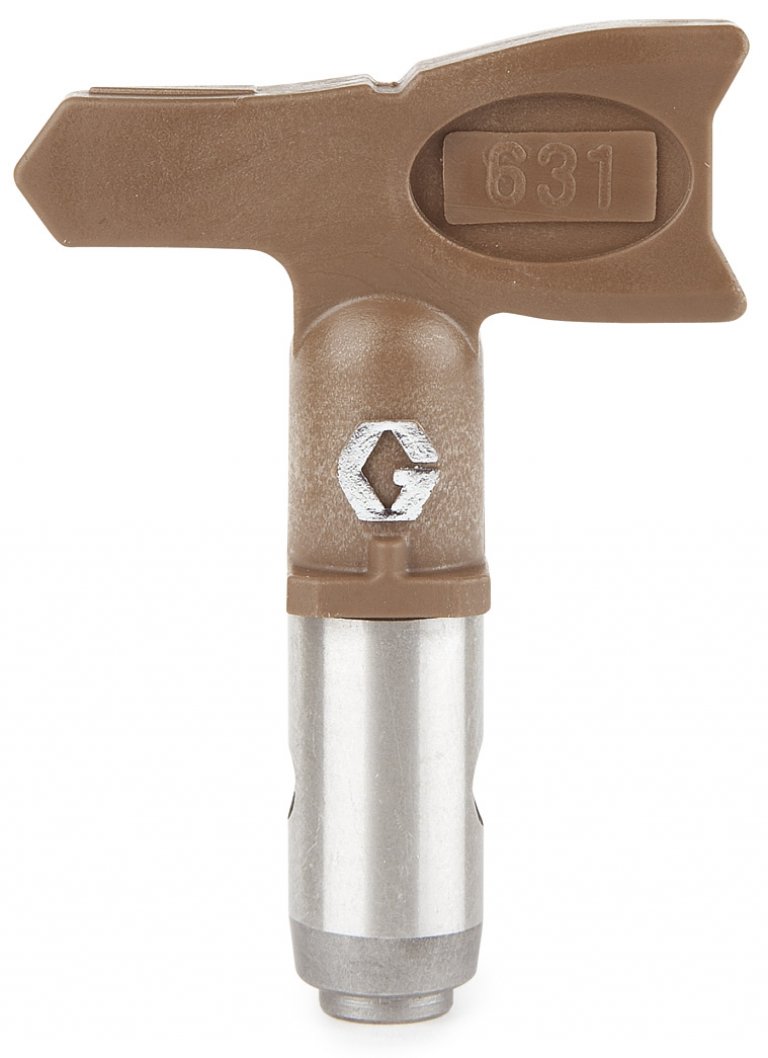

Graco HDA nozzles
for RAC X nozzle holders (HDA = Heavy Duty Application)
- Colour: brown
- E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 40° (Article No. 10008017-003)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 50° (Article No. 10008017-007)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 60° (Article No. 10008017-011)
Graco HDA nozzles - 0,039“ / 0,991 mm - 6,78 l/min / 40° (HDA nozzle 439) (Article No. 10008017-004)
Graco HDA nozzles - 0,045“ / 1,090 mm - 8,20 l/min / 50° (Article No. 10008017-008)
Graco HDA nozzles 543 (Article No. 10008017-004)
Graco HDA nozzles 655 (Article No. 10008017-015)
Double nipple
- Hose connection – this connection is rigid; does not rotate
Double nipple - 1“ ET x 1“ ET - 345 bar (Article No. 10044745)
D4 ½ output conveying screw - Head marked in green
D4 ½ output conveying screw - Head marked in green (Article No. 10022543)
D4 ½ output screw casing (maintenance free) - green
D4 ½ output screw casing (maintenance free) - green (Article No. 10022502)
D4-½ output screw casing with clamping strip
D4-½ output screw casing with clamping strip (Article No. 10022501)
Stator R7-1.5 (maintenance-free)
Stator R7-1.5 (maintenance-free) (Article No. 10023395)

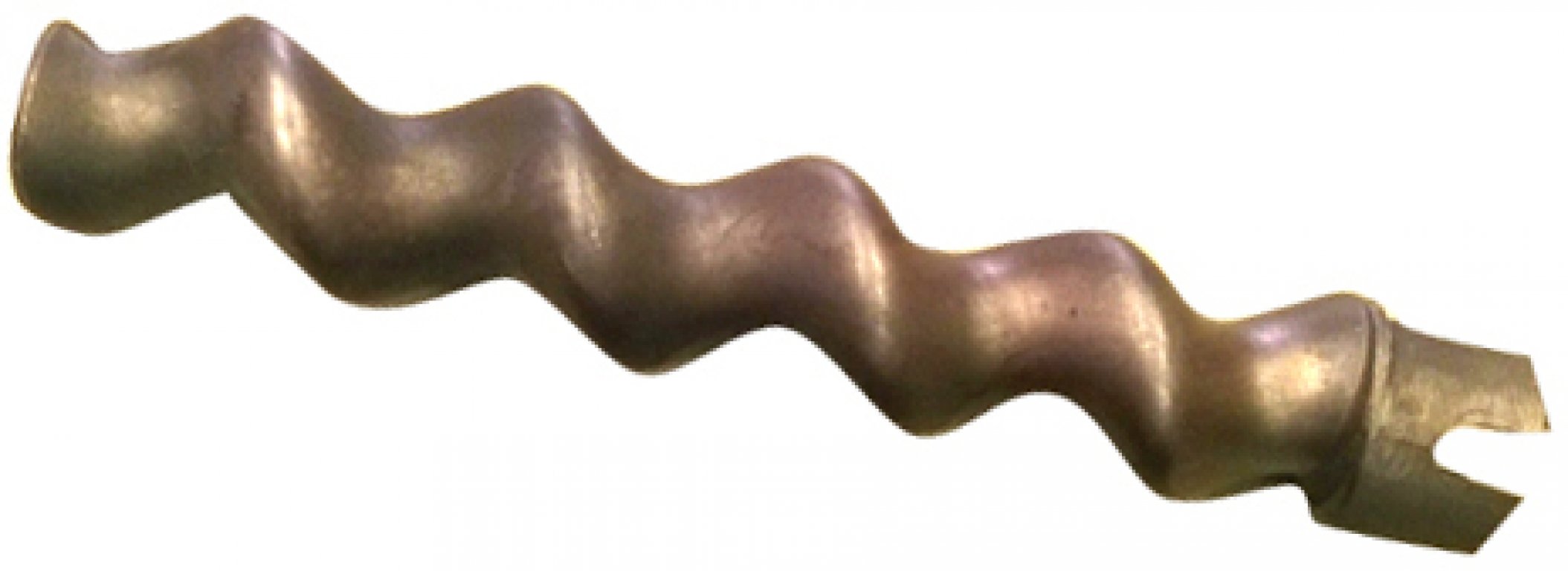

Rotor R7-1.5
R7-1,5 spiral conveyor (Article No. 10022887)
Stator R7-1.5 with clamping strip
Stator R7-1.5 with clamping strip (Article No. 10023395)
D8-1.5 conveying screw
- Tip marked in yellow
D8-1.5 conveying screw (Article No. 10022562)

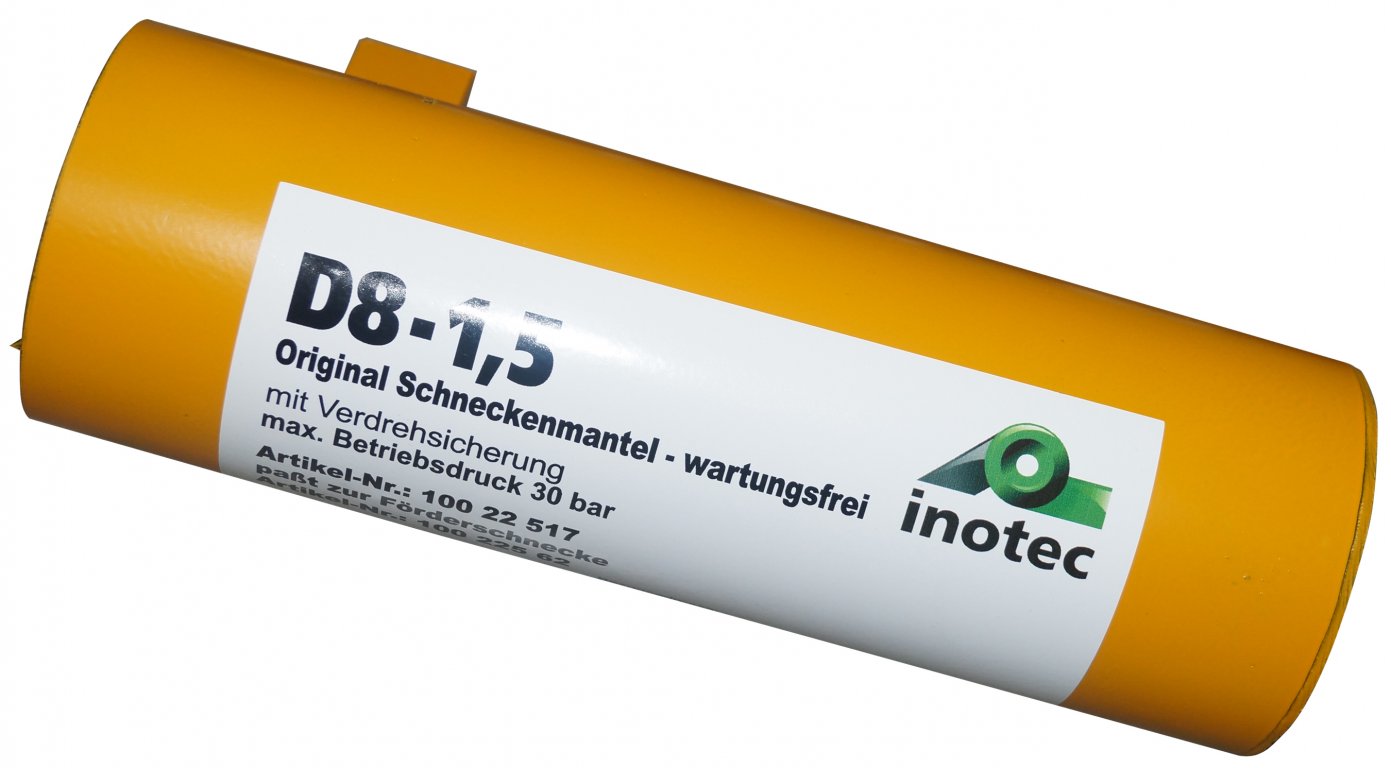

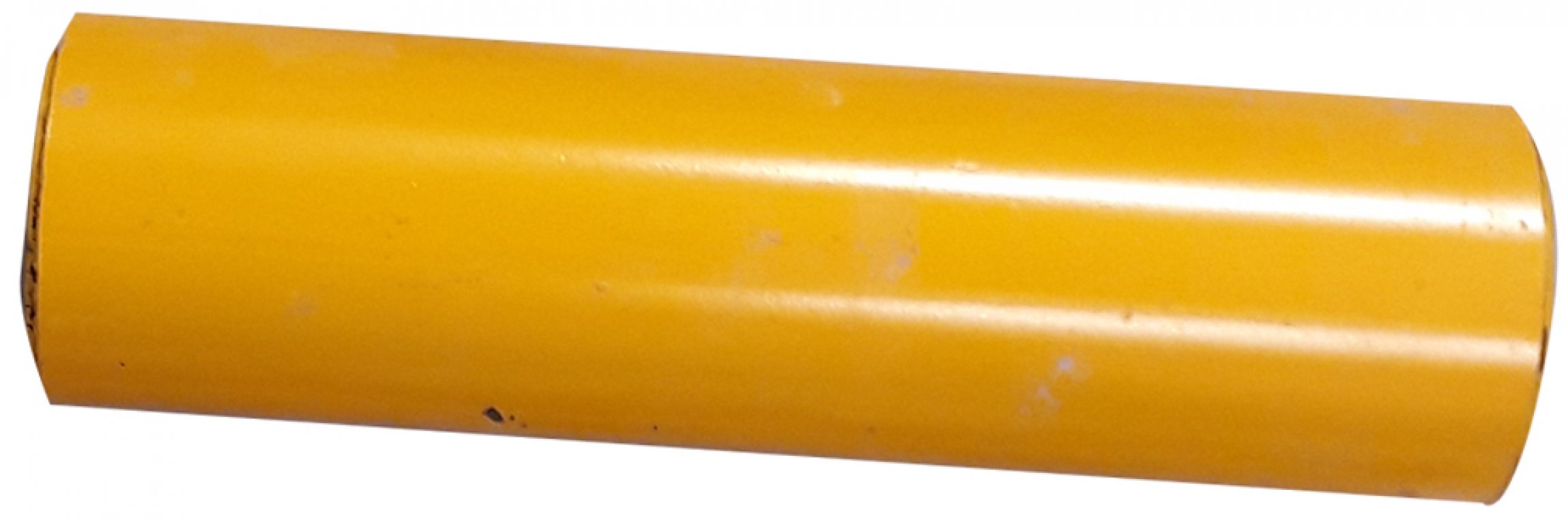

D8-1.5 yellow screw casing (maintenance free)
D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)

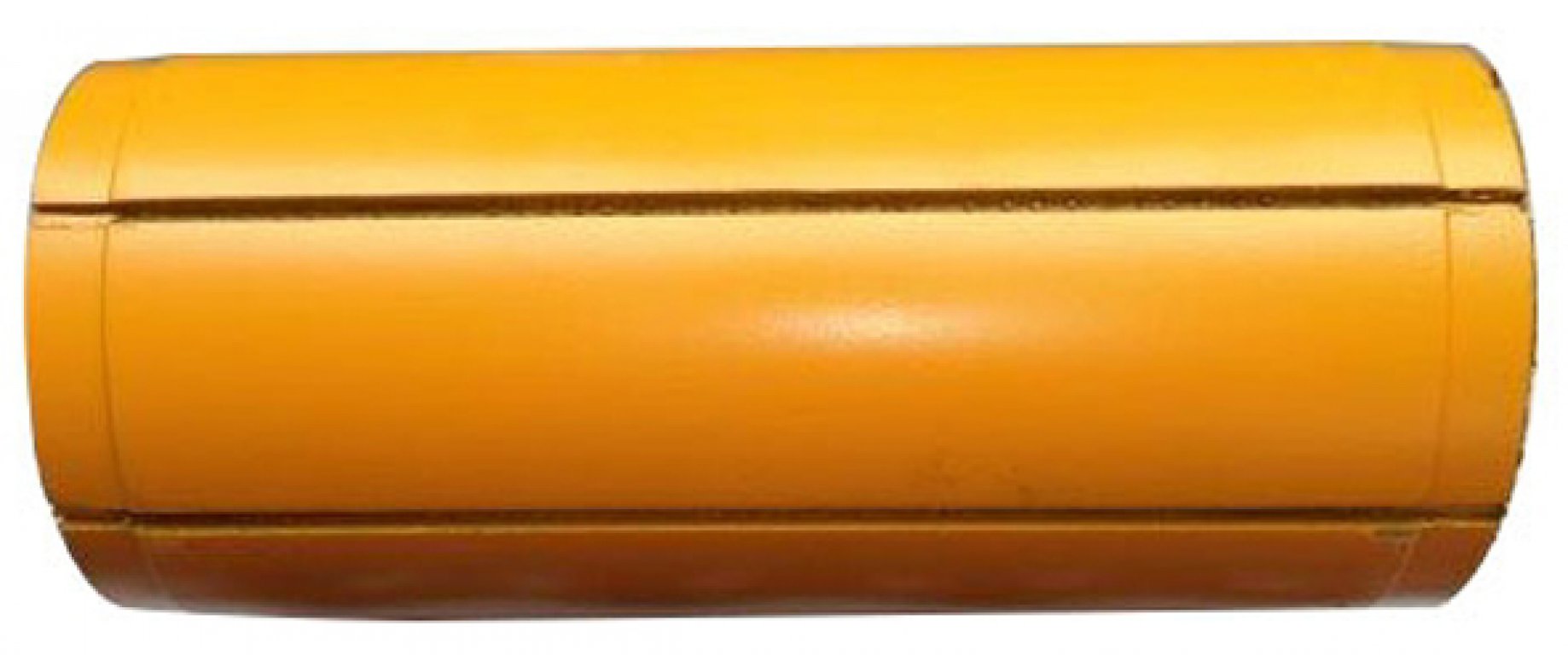

D8-1.5 yellow screw casing with clamping strip
D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)
D8-2 output screw casing (maintenance free)
D8-2 output screw casing (maintenance free) (Article No. 10022565)
D8-2 screw casing (maintenance free)
D8-2 screw casing (maintenance free) (Article No. 10022496)
Rotor D7-2.5 “S”
Rotor D7-2,5 „S“ (Article No. 10022556)

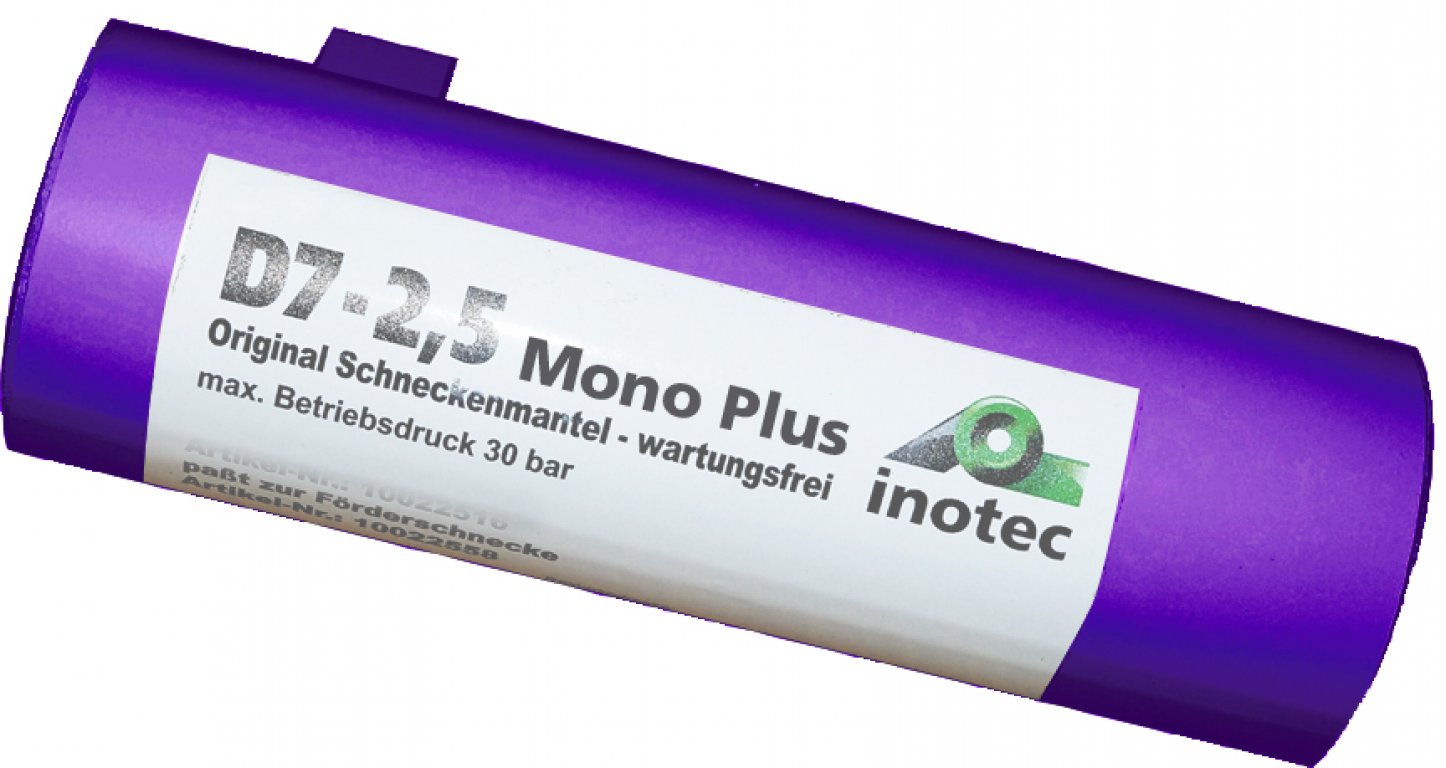

Stator D7-2.5 “Mono Plus” (maintenance free)
Stator D7-2.5 “Mono Plus” (maintenance free) (Article No. 10042506)
1 R6 spiral conveyor
1 R6 spiral conveyor (Article No. 10041243)
1 R 6 screw casing (maintenance-free)
1 R 6 screw casing (maintenance-free) (Article No. 10041242)
Assembly spray lubricant
- For assembling the conveying screw and screw casing
- 400 ml
Assembly spray lubricant (Article No. 10004591)
Professional grease gun: 400 ccm cartridges with hand lever press
- Hose length: 300 mm (Diameter: 8 mm)
- Material: Steel
- Good durability, easy handling
- Weight: 1.10 kg
Professional grease gun: 400 ccm cartridges with hand lever press (Article No. 10026629)

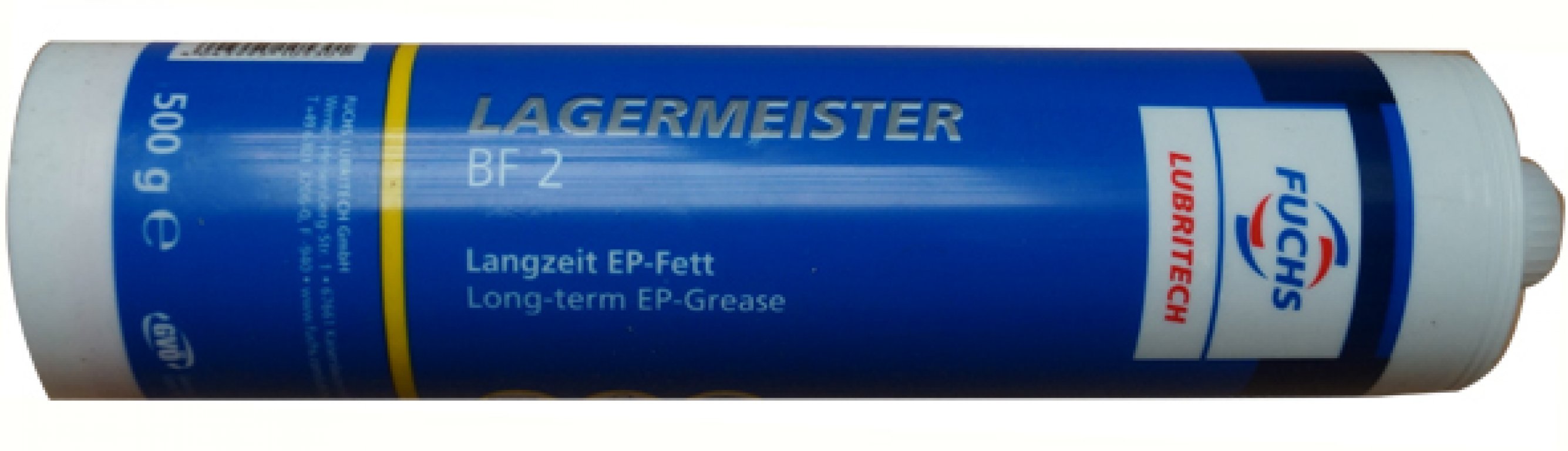

Grease cartridges (replacement cartridges) for professional grease gun
Grease cartridges (replacement cartridges) for professional grease gun (Article No. 10004510)
