The universal 230 V diaphragm airless sprayer for liquid materials

Benefits at a glance

  • Versatile in use
  • Hopper cover protects the material against contamination and prevents a skin from forming
  • Simple operation
  • Handy, portable
  • Robust mechanism
  • No electronic components
  • Quick and simple to clean
  • All parts that conduct paint are made from stainless steel

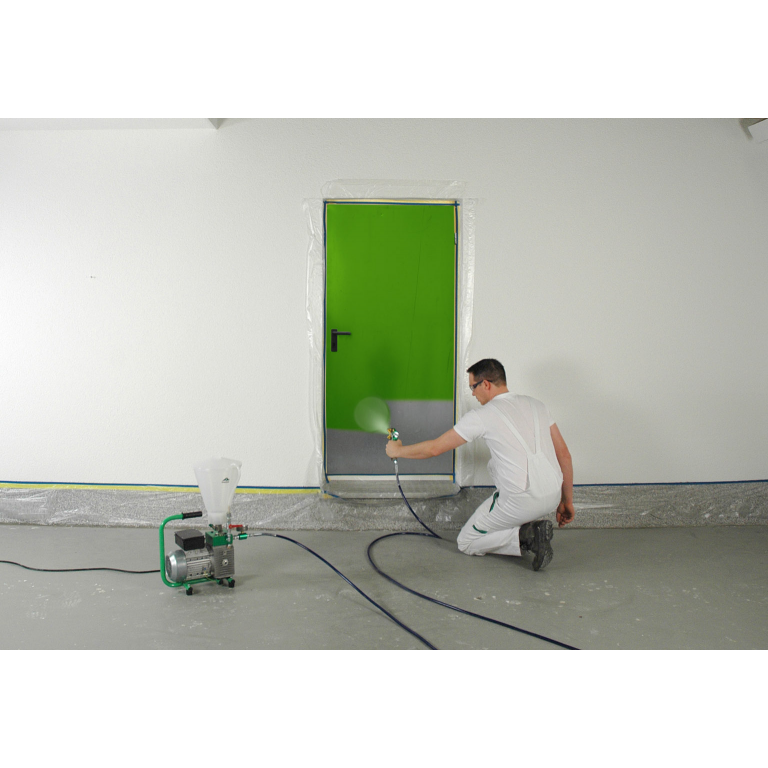

The inoSPRAY A 4000 is a multi-purpose diaphragm-style airless device for spraying dispersions on smaller surfaces, varnishing and injecting.

_______________

* The machine is also available in 110 V



inoSPRAY A 4000

Service details

Services
Operating pressurebarup to 0 - 240
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW0,75
Delivery rate (depending on the material)l/minmax. 2,5
Conveying distance (depending on the material)mmax. 30
Nozzle size"max. 0,52 mm / 0,021
Material containerl6
Hose connection"1/4
Machine techniqueAirless devices
Dimensions (L x W x H)mm450 x 300 x 670
Weightkgapprox. 17
inoSPRAY
inoSPRAY A 4000
Airless spattling compounds
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories)
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Clear varnishes
EP and PU injection resins
External dispersion paints
Fire protection coats
Highly viscous materials
Internal dispersion paints
Pigmented varnishes
Primers
Silicate paints
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”-F12 and “D”- & “R”-F30
Stains
Varnishes greater than 21°C
Water-based varnishes
Wood preservatives

Basic module
Item no. 10007871
Scope of delivery
inoSPRAY A 4000:

  • Material hopper with cover
  • Pressure gauge
  • Carry frame
  • Diaphragm pump unit
  • Operating instructions

Ready-to-spray set
(for varnishes)
Item no. 10040776
Scope of delivery
inoSPRAY A 4000 Set:
As with the basic module
(item no. 10007871)
Plus:

  • 1/4”, 7.5 m material hose with a diameter of 4 mm
  • AG 500 L airless gun
  • FFA 312 airless nozzle
  • RAC X nozzle holder
  • Pistol filter HS red
inoSPRAY A 4000
Trolley with 2 plastic wheels for inoSPRAY A4000 and A5000 airless device

Trolley with 2 plastic wheels for inoSPRAY A4000 and A5000 airless device

Trolley with 2 plastic wheels for inoBEAM M8 delivery pump (Article No. 10030015)
inoSPRAY Temp, heating hose for  airless devices

inoSPRAY Temp, heating hose for airless devices

For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.

Technical data:
Operating pressure: 250 bar
Nominal width: 10 mm e.g. for dispersions, 8 mm for varnish
Connection: 3/8“ IT

Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

inoSPRAY Temp, heating hose for airless devices - Ø 8 mm (varnish) - 7,5 m (Article No. 10034358)
High-pressure / airless hoses

High-pressure / airless hoses

Colours: yellow / blue / black

High-pressure / airless hoses - Ø 4 mm - 1/4' IT - 250 bar - 7,5 m (Article No. 10012241)

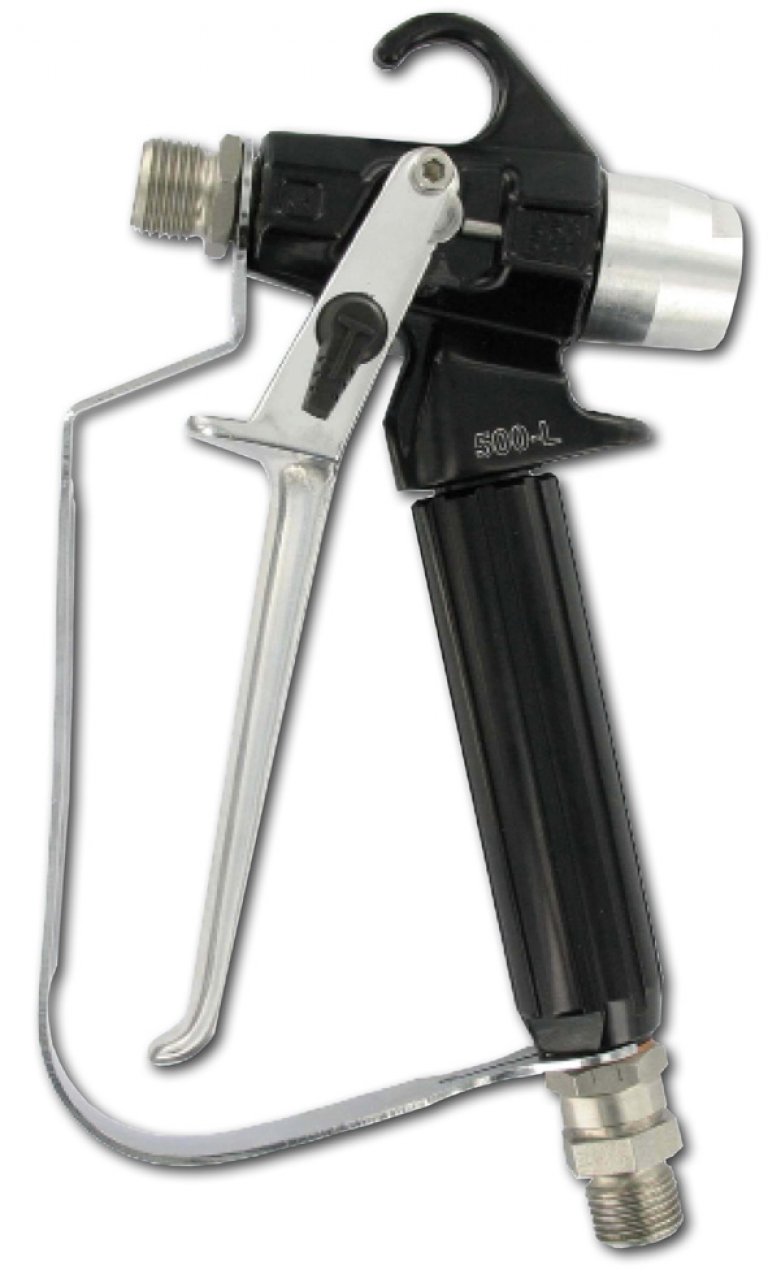

INOTEC AG 500 L airless gun

INOTEC AG 500 L airless gun

  • High-quality airless gun with 4-finger trigger
Technical data:
Needle position / ball: 5 mm
Operating pressure: 500 bar
Receptacle for nozzle holder: 7/8“
Swivel joint with 1/4” hose connection
Filter 60 Mesh
Adapter V2A 1/4” IT – M16 x 1.5 ET

Scope of delivery:
Gun without nozzle holder / nozzles

INOTEC AG 500 L airless gun (Article No. 10036983)
Gun filter for AG 500 L

Gun filter for AG 500 L

Gun filter for AG 500 L - White (60 mesh) e.g. for dispersion paint (Article No. 10012364)
Gun filter for AG 500 L - Yellow (100 mesh) e.g. for fillers, varnishes (Article No. 10012356)
Graco RAC X nozzle holder for RAC X nozzles

Graco RAC X nozzle holder for RAC X nozzles

  • Operating pressure: 280 bar
  • Suitable for:
    Graco PAA, FFA, HDA, WA nozzles

Graco RAC X nozzle holder for RAC X nozzles - 7/8" - 280 bar (Article No. 10012119)
Graco FFA nozzles

Graco FFA nozzles

for RAC X nozzle holders (FFA = Fine Finish Application)

  • Colour: green
  • E.g. for paint, mordents, clear varnishes, varnishes

Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 20° (Article No. 10008014-002)
Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 30° (Article No. 10008014-005)
Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 40° (Article No. 10008014-008)
Graco FFA nozzles - 0,012“ / 0,305 mm - 0,59 l/min / 30° (Article No. 10008014-006)
Graco FFA nozzles - 0,012“ / 0,305 mm - 0,59 l/min / 40° (Article No. 10008014-009)
Graco PAA nozzles

Graco PAA nozzles

for RAC X nozzle holders (PAA = Professional Airless Application)

  • Colour: blue
  • E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications

Graco PAA nozzles - 0,017“ / 0,432 mm - 1,15 l/min / 50° (Article No. 10007998-014)
Graco PAA nozzles - 0,019“ / 0,483 mm - 1,15 l/min / 50° (Article No. 10007998-015)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 50° (Article No. 10007998-016)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 60° (Article No. 10007998-020)
Graco PAA nozzles - 0,023“ / 0,584 mm - 2,15 l/min / 50° (Article No. 10007998-017)
Graco RAC X nozzle extension

Graco RAC X nozzle extension

  • With 7/8” thread
  • With RAC X nozzle holder (not including nozzle)

Graco RAC X nozzle extension - 25 cm (Article No. 10007986-001)
Graco RAC X nozzle extension - 50 cm (Article No. 10007986-003)
Graco RAC X nozzle extension RAC X - 75 cm (Article No. 10007986-004)
Graco Cleanshot shut-off valve set

Graco Cleanshot shut-off valve set

The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle

Graco Cleanshot shut-off valve set (Article No. 10012062)

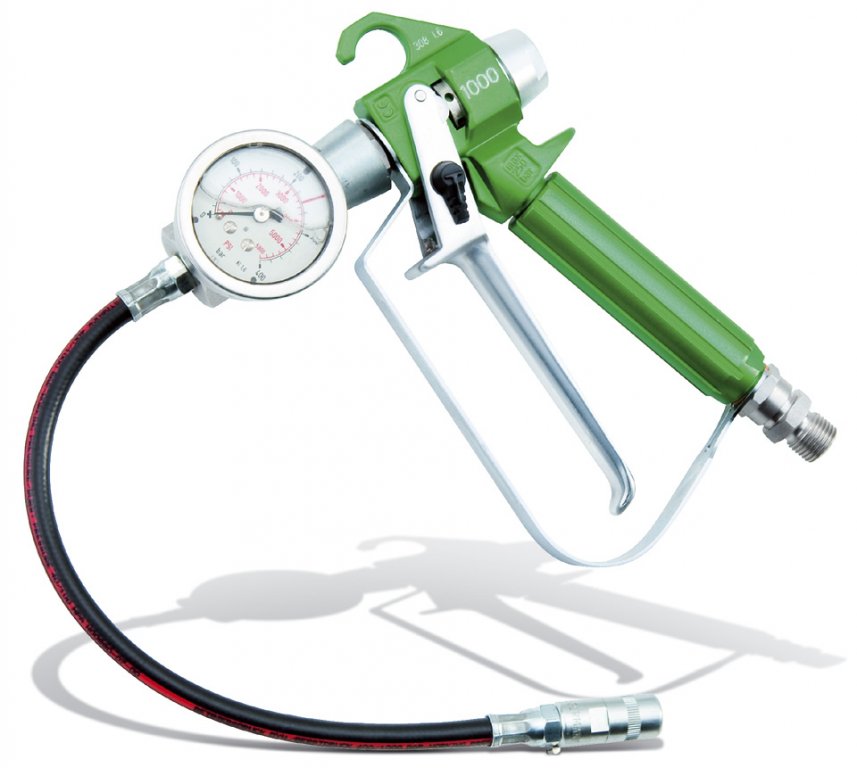

Injection set

Injection set

  • For injecting cracks
  • Reliable operating pressure: 250 bar

Scope of delivery:
Gun with material pressure gauge, injection hose with mouthpiece,
7.5 m, DN 5 HP hose

Injection set (Article No. 10012533)
Injection set - spare injection hose (Article No. 10018126)
Injection set - spare mouthpiece (Article No. 10018007)
Tip-Clean nozzle cleaning set for airless nozzles

Tip-Clean nozzle cleaning set for airless nozzles

For quick and simple cleaning and preservation of airless nozzles.

Tip-Clean nozzle cleaning set for airless nozzles (Article No. 10012495)
Transition nipple

Transition nipple

This connection is rigid; does not rotate

  • For connecting a variety of hoses

Transition nipple - M16 x 1,5 IT x 1/4“ ET (Article No. 10013748)
Transition nipple - 3/8“ ET x 1/4“ ET (Article No. 10039235)
Transition nipple - 3/8“ ET x M16 x 1,5“ ET (Article No. 10012436)
Transition nipple- 1/4“ IT x M16 x 1,5“ ET (Article No. 10012519)
Double nipple

Double nipple

  • Hose connection – this connection is rigid; does not rotate

Double nipple - 1/4“ET x 1/4“ ET - 410 bar (Article No. 10022170)
First aid airless set “Dispersion”

First aid airless set “Dispersion”

Provided in emergency kit:
airless gun AG500-L-G, 10 x white plug-in filter, nozzle holder RAC X, reversible nozzle RAC X 517, reversible nozzle RAC X 521, whip hose ¼”, TipClean, brush cleaning kit

First aid airless set “Dispersion” (Article No. 10042282)
