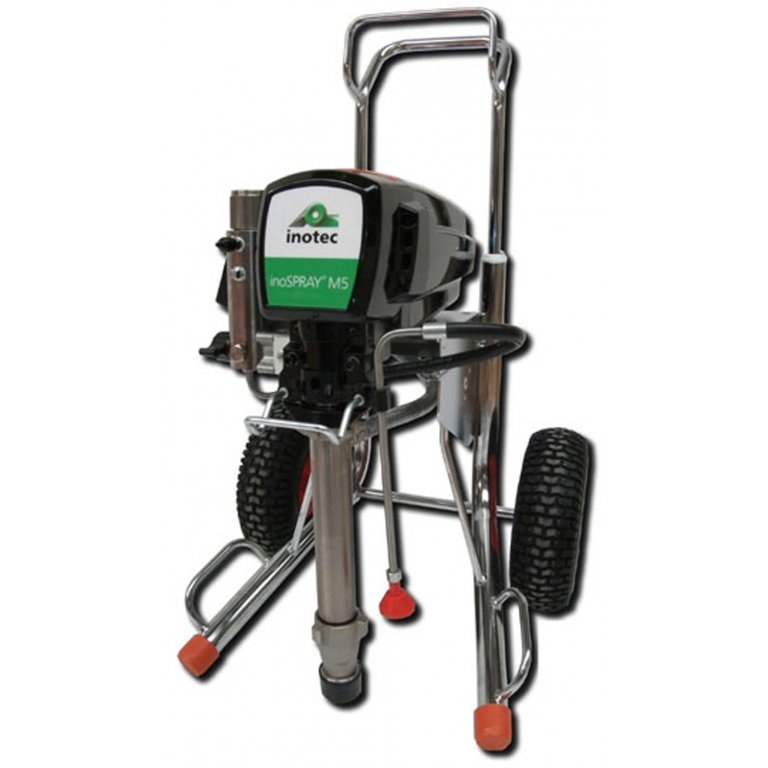

The powerful 230 V* piston pump airless sprayer for varnishes, paints and spray-on filler

Benefits at a glance

  • Versatile in use
  • Simple operation
  • High delivery rate, up to 5.5 l/min.
  • Proven, robust technology

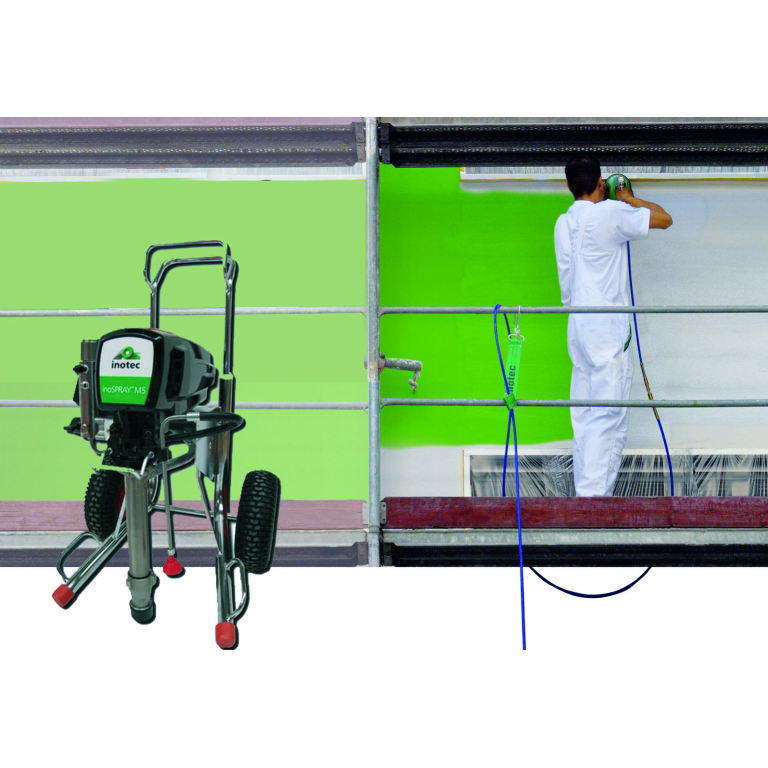

The inoSPRAY M5 is a compact 230 V airless spraying device for efficient use on façades and indoor spaces.
The high delivery rate means that even larger objects or surfaces can be coated in a short time.

_______________

* The machine is also available in 110 V



inoSPRAY M5

Service details

Services
Operating pressurebarup to 0 - 230
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW1,6
Delivery rate (depending on the material)l/minmax. 5,5
Conveying distance (depending on the material)mmax. 45
Nozzle size"max. 0,037
Material containerloptional
Hose connection"3/8
Machine techniqueAirless devices
Dimensions (L x W x H)mm670 x 780 x 780
Weightkgapprox. 58
inoSPRAY
inoSPRAY M5
Airless spattling compounds
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories)
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Clear varnishes
EP and PU injection resins
External dispersion paints
Fire protection coats
Highly viscous materials
Internal dispersion paints
Pigmented varnishes
Primers
Silicate paints
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”-F12 and “D”- & “R”-F30
Stains
Varnishes greater than 21°C
Water-based varnishes
Wood preservatives

Ready-to-spray set
Item no. 10040778
Scope of delivery
inoSPRAY M5 Set:

  • 3/8”, 15 m material hose with a diameter of 10 mm
  • 1/4”, 0.9 m whip hose
  • AG 500 L gun with filter
  • Swivel joint and thread adapter
  • RAC X nozzle holder
  • 517, 521, 435 mm nozzles
  • Ceramic ball set (for spray-on filler) built in
  • Stainless steel ball set (for paint) enclosed
  • Display control
  • Tool
  • TSL liquid
  • Protective liquid
  • Frame
  • 2 running wheels
  • Piston pump unit
  • Operating instructions
inoSPRAY M5
inoSPRAY Temp, heating hose for  airless devices

inoSPRAY Temp, heating hose for airless devices

For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.

Technical data:
Operating pressure: 250 bar
Nominal width: 10 mm e.g. for dispersions, 8 mm for varnish
Connection: 3/8“ IT

Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 15 m (Article No. 10012278)
inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 30 m (Article No. 10012279)
inoSPRAY Temp, heating hose for airless devices - Ø 8 mm (varnish) - 7,5 m (Article No. 10034358)

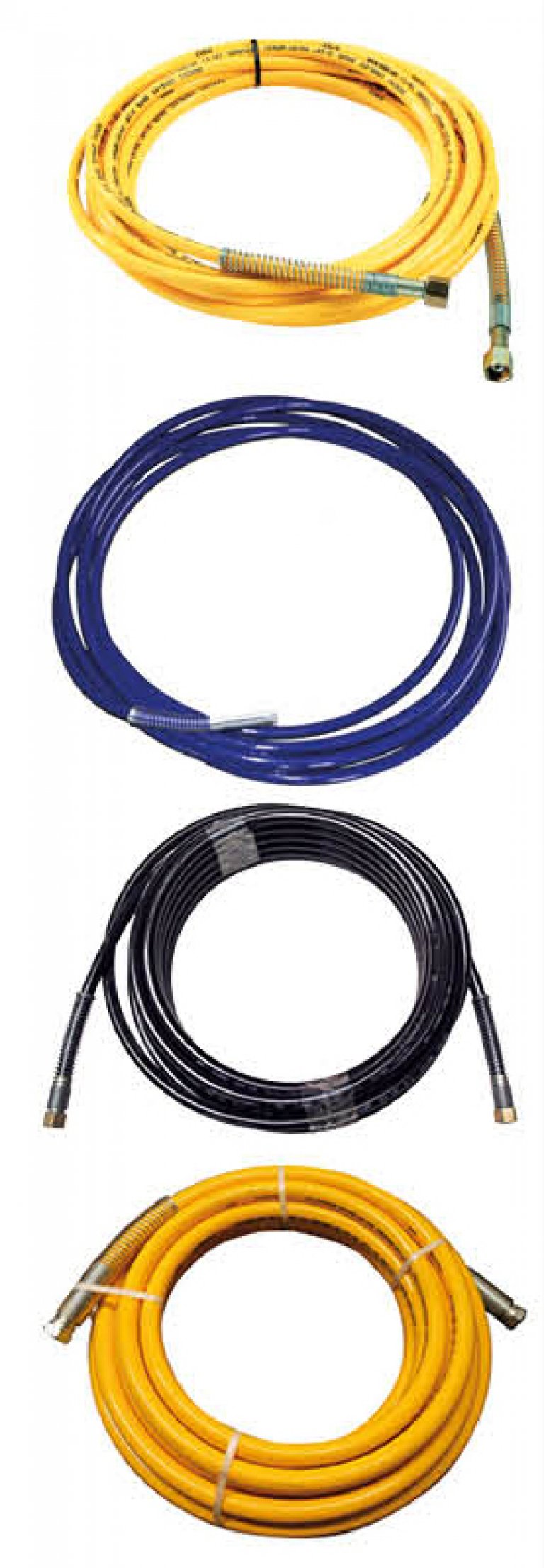

High-pressure / airless hoses

High-pressure / airless hoses

Colours: yellow / blue / black

High-pressure / airless hoses - Ø 6 mm - 1/4' IT - 250 bar - 15 m (Article No. 10038405)
High-pressure / airless hoses - Ø 10 mm - 3/8' IT - 260 bar - 15 m (Article No. 10012230)
High-pressure / airless hoses - Ø 10 mm - 3/8' IT - 260 bar - 30 m (Article No. 10038897)

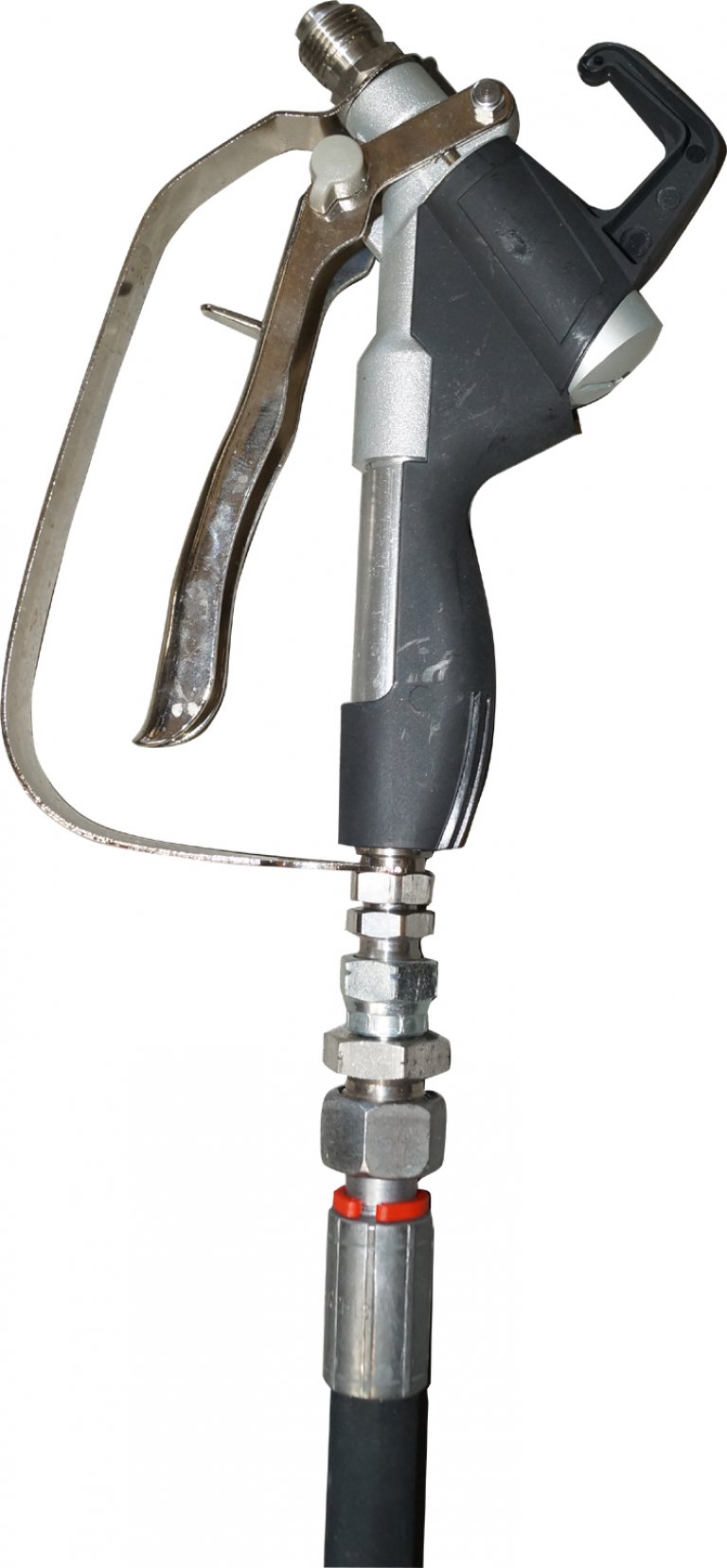

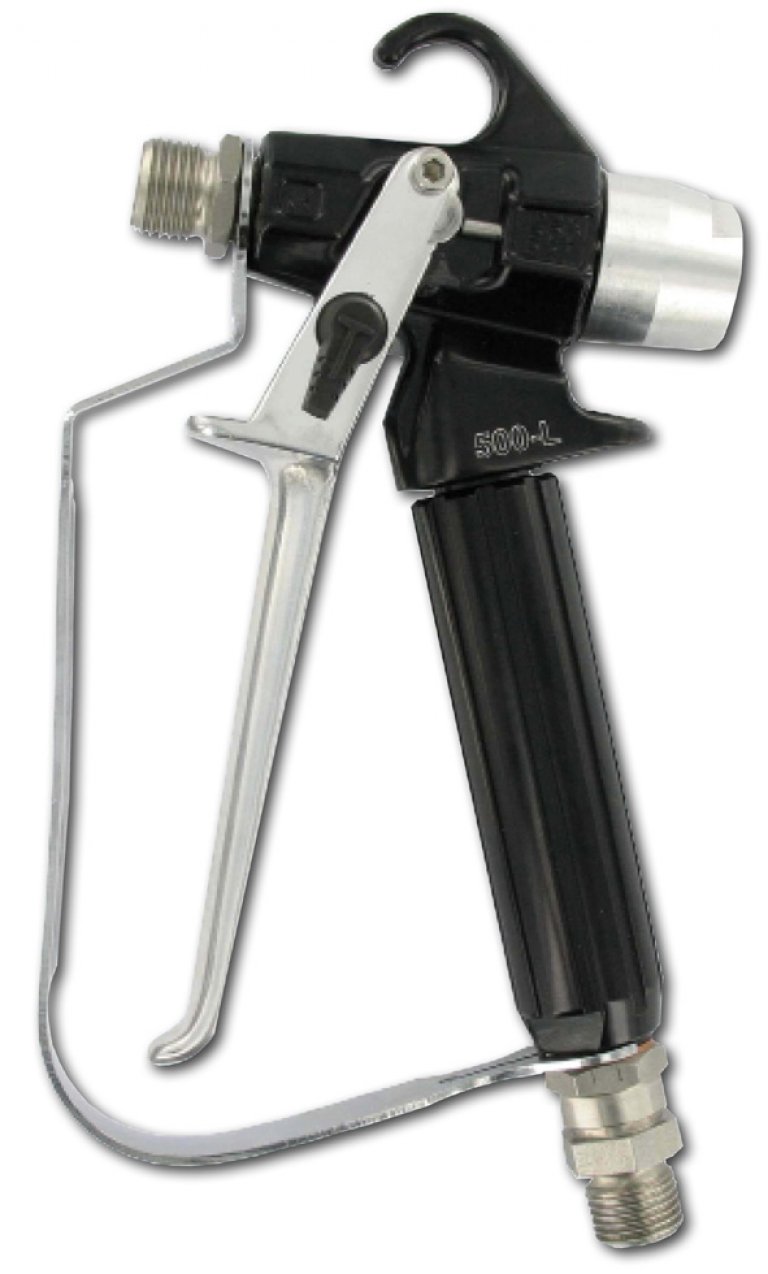

INOTEC AG 500 L airless gun

INOTEC AG 500 L airless gun

  • High-quality airless gun with 4-finger trigger
Technical data:
Needle position / ball: 5 mm
Operating pressure: 500 bar
Receptacle for nozzle holder: 7/8“
Swivel joint with 1/4” hose connection
Filter 60 Mesh
Adapter V2A 1/4” IT – M16 x 1.5 ET

Scope of delivery:
Gun without nozzle holder / nozzles

INOTEC AG 500 L airless gun (Article No. 10036983)
Gun filter for AG 500 L

Gun filter for AG 500 L

Gun filter for AG 500 L - White (60 mesh) e.g. for dispersion paint (Article No. 10012364)
INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP

  • Connection 3/8” male, including swivel / Maximum pressure: 250 bar

Optional (not included in the scope of delivery):

  • RAC X nozzle holder  (for F12 HP, F30 HP, F70 HP)
  • HDA nozzle 439 (for F12 HP)
  • HDA nozzle 543 (for F30 HP)
  • HDA nozzle 655 (for F70 HP)
  • Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
  • Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
  • Adapter 1/2“ AG x 1“ AG (for F70 HP)

INOTEC airless gun AG 190 LB for inoSPRAY M5 & M7, inoBEAM F12 HP, F30 HP and F70 HP (Article No. 10044654)

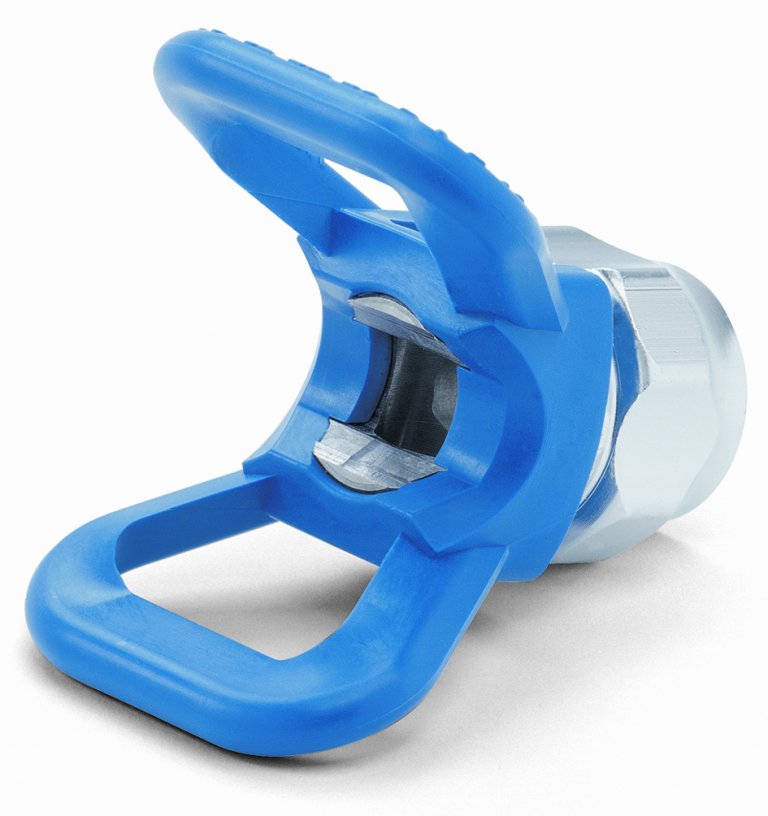

Graco RAC X nozzle holder for RAC X nozzles

Graco RAC X nozzle holder for RAC X nozzles

  • Operating pressure: 280 bar
  • Suitable for:
    Graco PAA, FFA, HDA, WA nozzles

Graco RAC X nozzle holder for RAC X nozzles - 7/8" - 280 bar (Article No. 10012119)

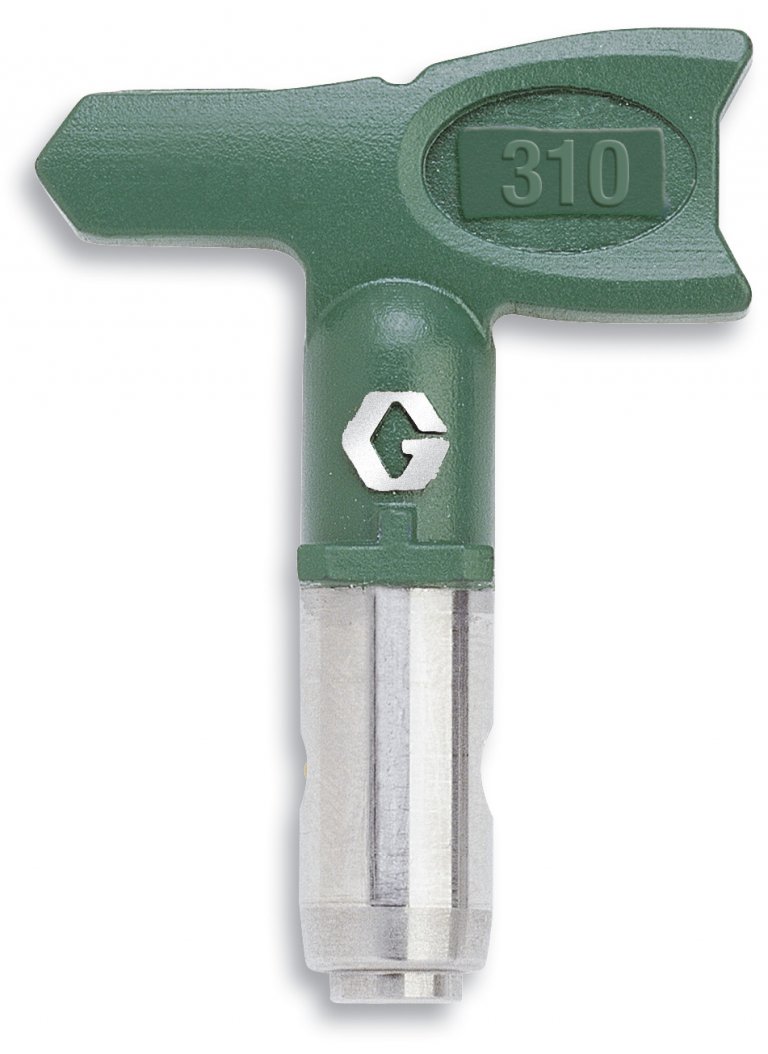

Graco FFA nozzles

Graco FFA nozzles

for RAC X nozzle holders (FFA = Fine Finish Application)

  • Colour: green
  • E.g. for paint, mordents, clear varnishes, varnishes

Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 20° (Article No. 10008014-002)
Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 30° (Article No. 10008014-005)
Graco FFA nozzles - 0,010“ / 0,254 mm - 0,41 l/min / 40° (Article No. 10008014-008)
Graco FFA nozzles - 0,012“ / 0,305 mm - 0,59 l/min / 30° (Article No. 10008014-006)
Graco FFA nozzles - 0,012“ / 0,305 mm - 0,59 l/min / 40° (Article No. 10008014-009)

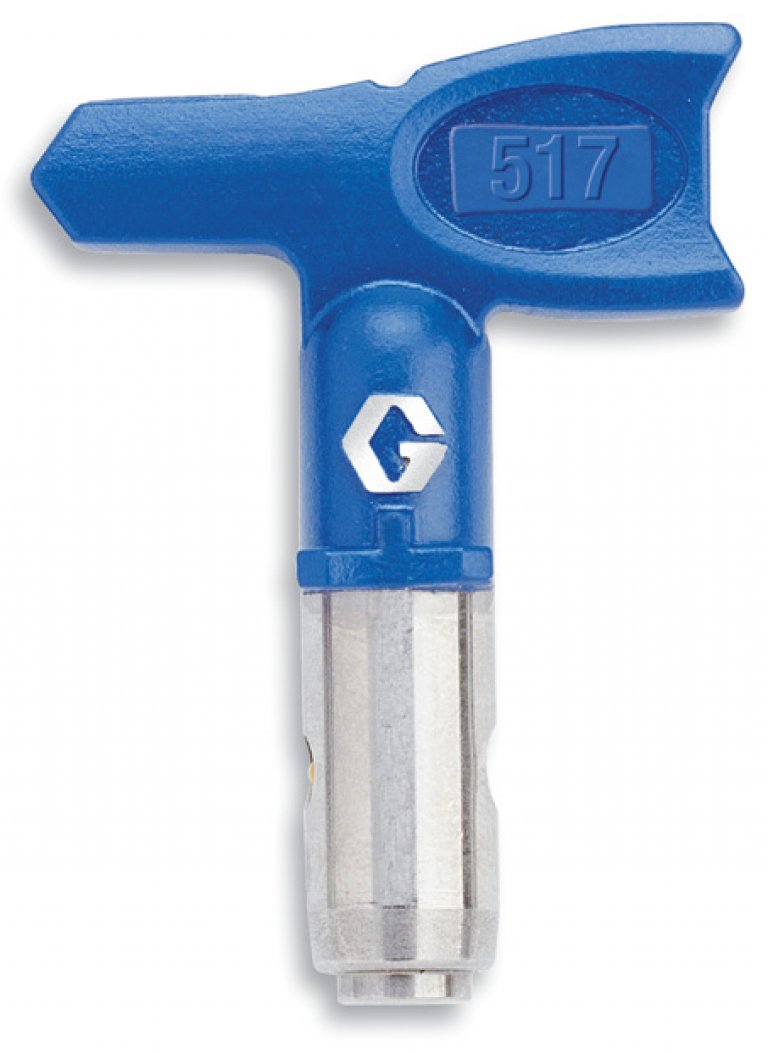

Graco PAA nozzles

Graco PAA nozzles

for RAC X nozzle holders (PAA = Professional Airless Application)

  • Colour: blue
  • E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications

Graco PAA nozzles - 0,017“ / 0,432 mm - 1,15 l/min / 50° (Article No. 10007998-014)
Graco PAA nozzles - 0,019“ / 0,483 mm - 1,15 l/min / 50° (Article No. 10007998-015)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 50° (Article No. 10007998-016)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 60° (Article No. 10007998-020)
Graco PAA nozzles - 0,023“ / 0,584 mm - 2,15 l/min / 50° (Article No. 10007998-017)

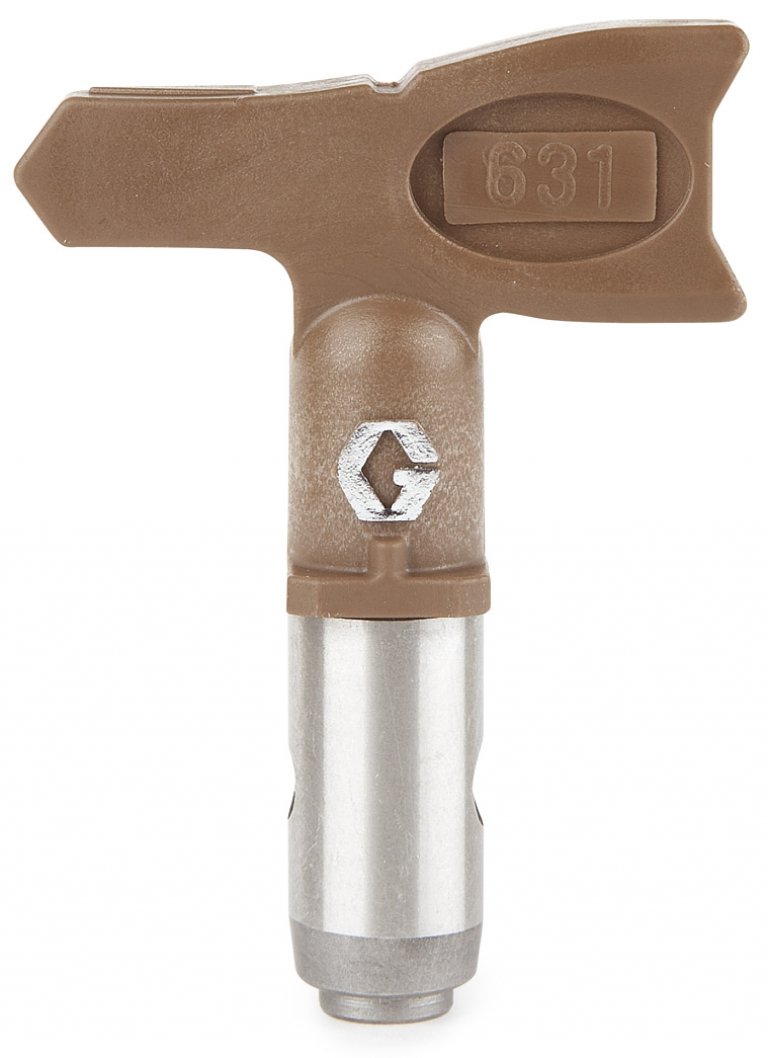

Graco HDA nozzles

Graco HDA nozzles

for RAC X nozzle holders (HDA = Heavy Duty Application)

  • Colour: brown
  • E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications

Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 40° (Article No. 10008017-003)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 50° (Article No. 10008017-007)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 60° (Article No. 10008017-011)
Graco HDA nozzles - 0,039“ / 0,991 mm - 6,78 l/min / 40° (HDA nozzle 439) (Article No. 10008017-004)
Graco HDA nozzles - 0,045“ / 1,090 mm - 8,20 l/min / 50° (Article No. 10008017-008)
Graco RAC X nozzle extension

Graco RAC X nozzle extension

  • With 7/8” thread
  • With RAC X nozzle holder (not including nozzle)

Graco RAC X nozzle extension - 25 cm (Article No. 10007986-001)
Graco RAC X nozzle extension - 50 cm (Article No. 10007986-003)
Graco RAC X nozzle extension RAC X - 75 cm (Article No. 10007986-004)

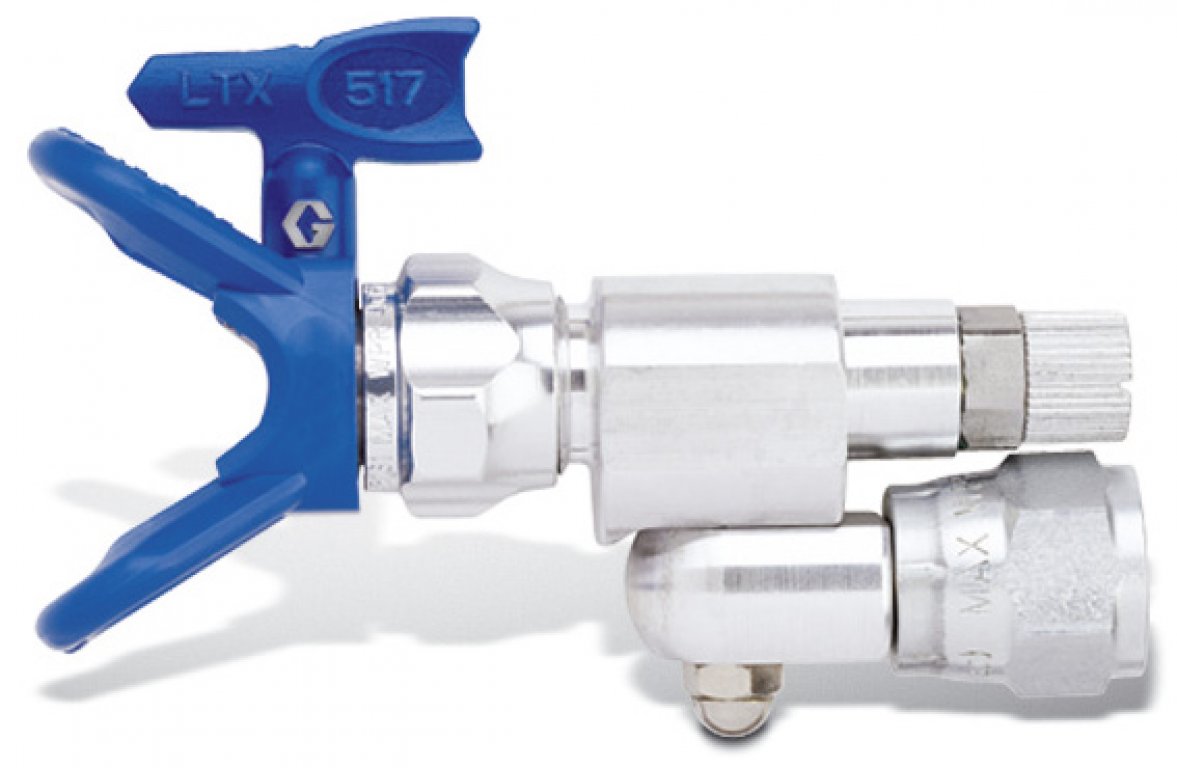

Graco Cleanshot shut-off valve set

Graco Cleanshot shut-off valve set

The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle

Graco Cleanshot shut-off valve set (Article No. 10012062)

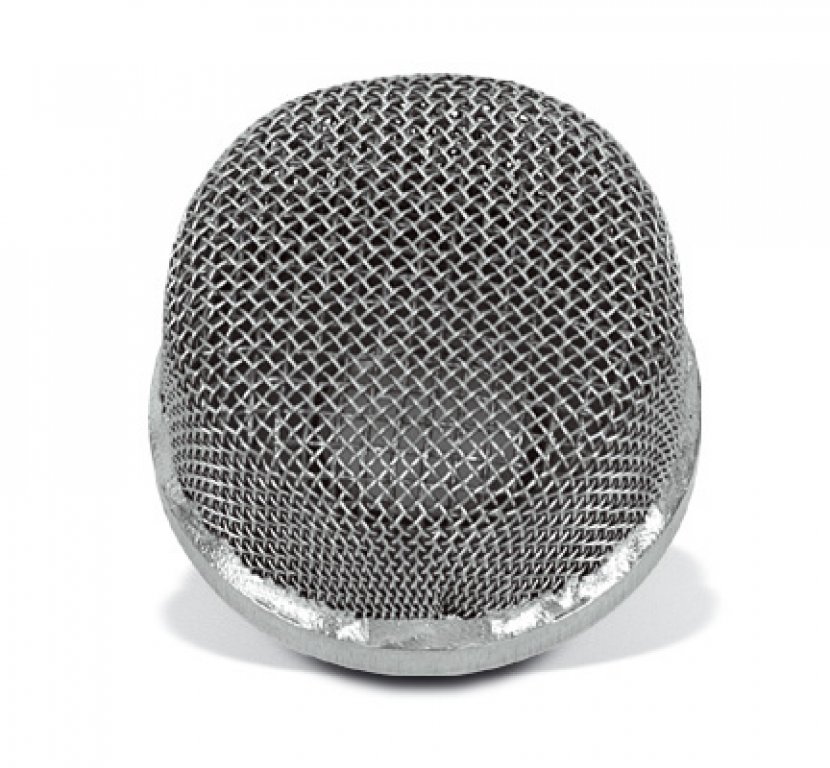

Graco suction filter

Graco suction filter

For your device to work reliably, the inlet strainer should be kept clean at all times, thus guaranteeing a good flow of material. Pre-filtering is gentle on your pump and extends its service life.

Graco suction filter - 1“ IT - suction filter 16 mesh (Article No. 10012028)
Graco suction filter - 1“ IT - suction filter 8 mesh (Article No. 10012034)
Container suction system, 1.4 m, 1” connection

Container suction system, 1.4 m, 1” connection

  • For connecting to airless devices with a 1” internal thread and C coupling for connection to containers

Container suction system, 1.4 m, 1” connection (Article No. 10025781)

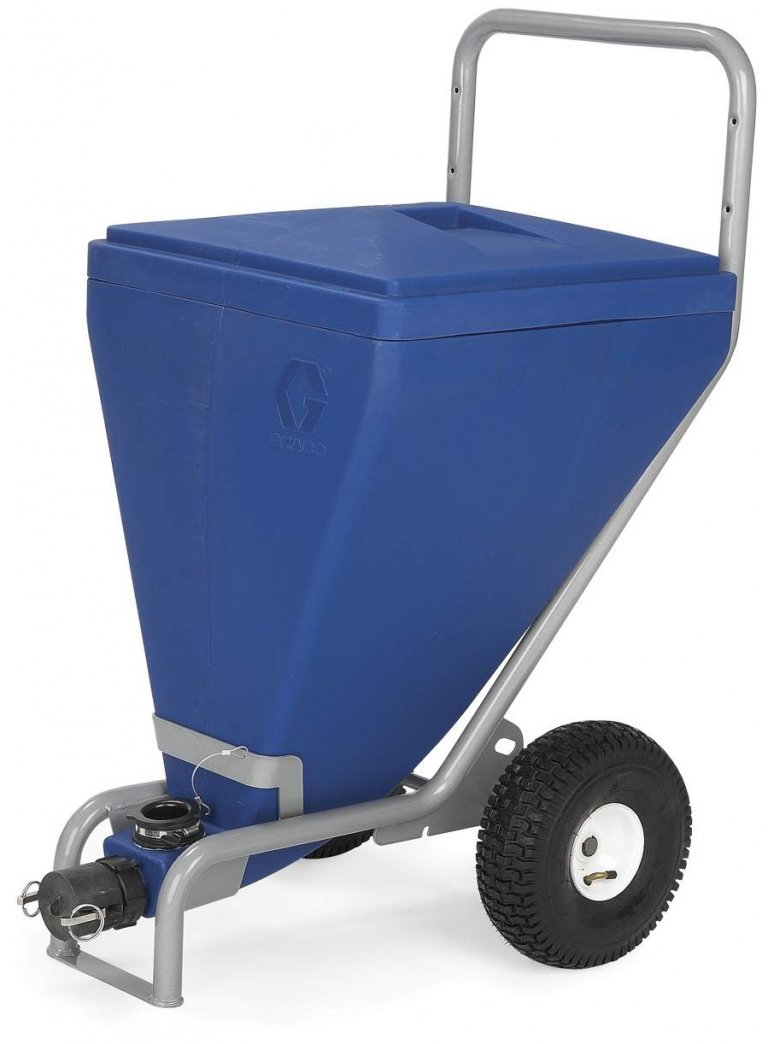

Material hopper for paint or filler

Material hopper for paint or filler

  • Hopper volume: 90 l
  • (Without bag mangle)

Material hopper for paint or filler (Article No. 10013348)
Bag mangle for material hopper

Bag mangle for material hopper

Bag mangle for material hopper (Article No. 10013581)

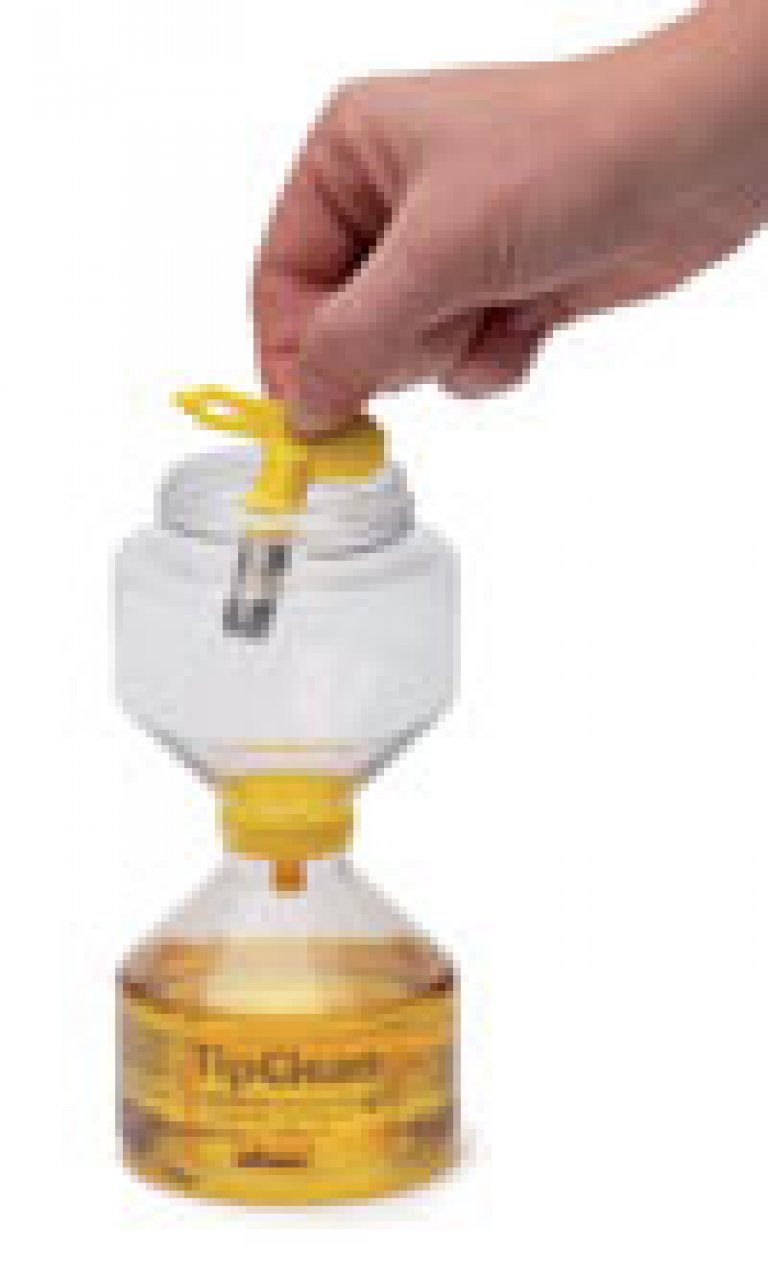

Tip-Clean nozzle cleaning set for airless nozzles

Tip-Clean nozzle cleaning set for airless nozzles

For quick and simple cleaning and preservation of airless nozzles.

Tip-Clean nozzle cleaning set for airless nozzles (Article No. 10012495)

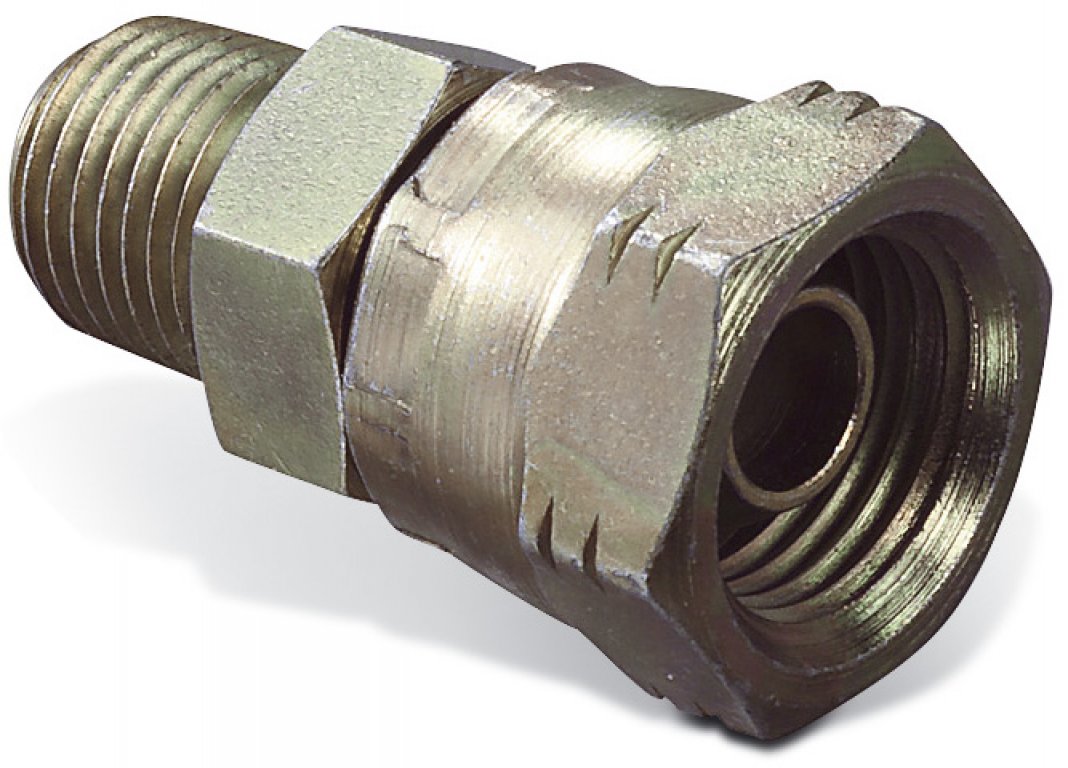

Transition nipple

Transition nipple

This connection is rigid; does not rotate

  • For connecting a variety of hoses

Transition nipple - M16 x 1,5 IT x 1/4“ ET (Article No. 10013748)
Transition nipple - 3/8“ ET x 1/4“ ET (Article No. 10039235)
Transition nipple - 3/8“ ET x M16 x 1,5“ ET (Article No. 10012436)
Transition nipple- 1/4“ IT x M16 x 1,5“ ET (Article No. 10012519)

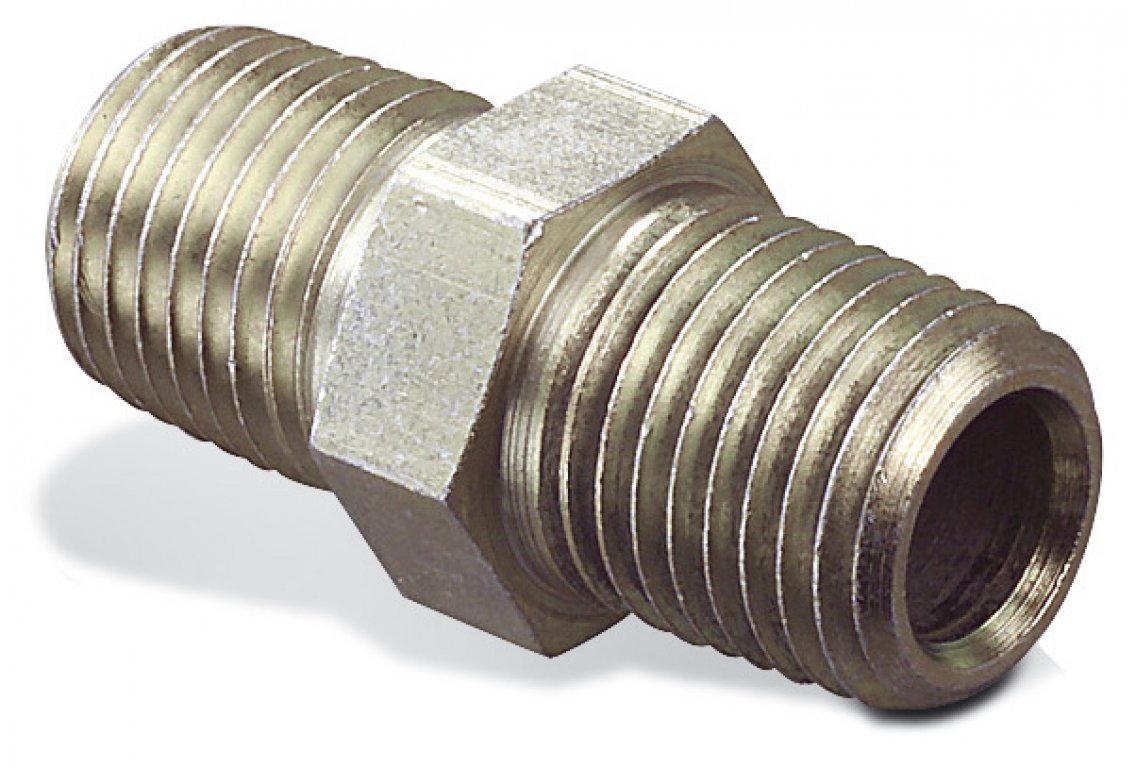

Double nipple

Double nipple

  • Hose connection – this connection is rigid; does not rotate

Double nipple - 1/4“ ET x 3/8“ ET - 350 bar (Article No. 10012987)
Double nipple - 1/4“ET x 1/4“ ET - 410 bar (Article No. 10022170)
Double nipple - 3/8“ ET x 3/8“ ET - 410 bar (Article No. 10012991)

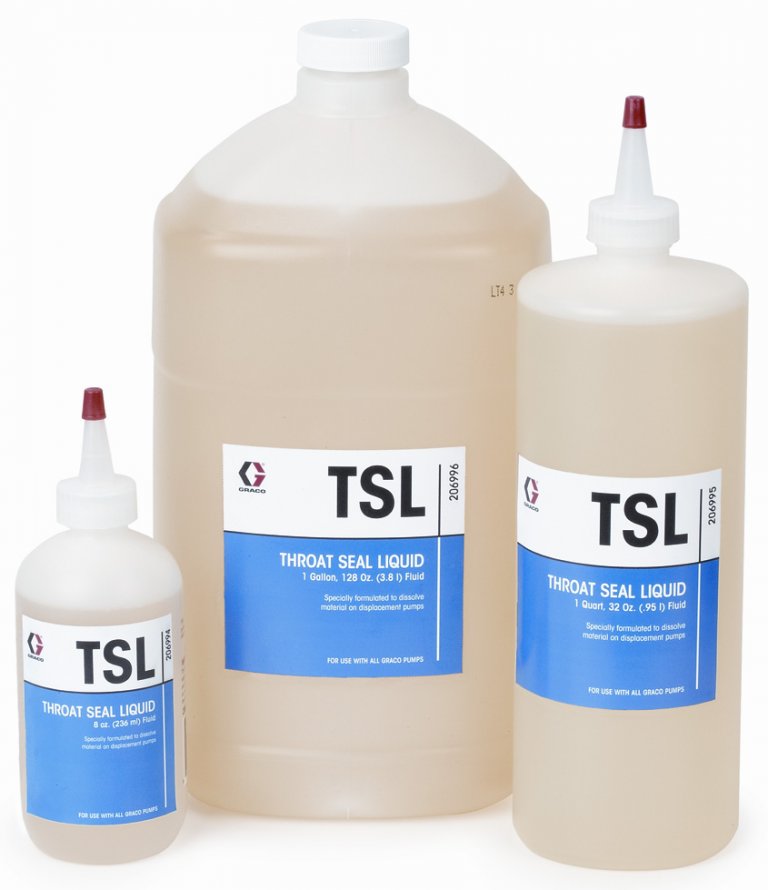

Graco TSL liquid (= neck sealing lubricant)

Graco TSL liquid (= neck sealing lubricant)

Loosens hardened spray material on piston rods or slows down their hardening process while reducing friction, wear or abrasion at the same time.

  • 0.25 litre bottle

Graco TSL liquid (= neck sealing lubricant) (Article No. 10012515)

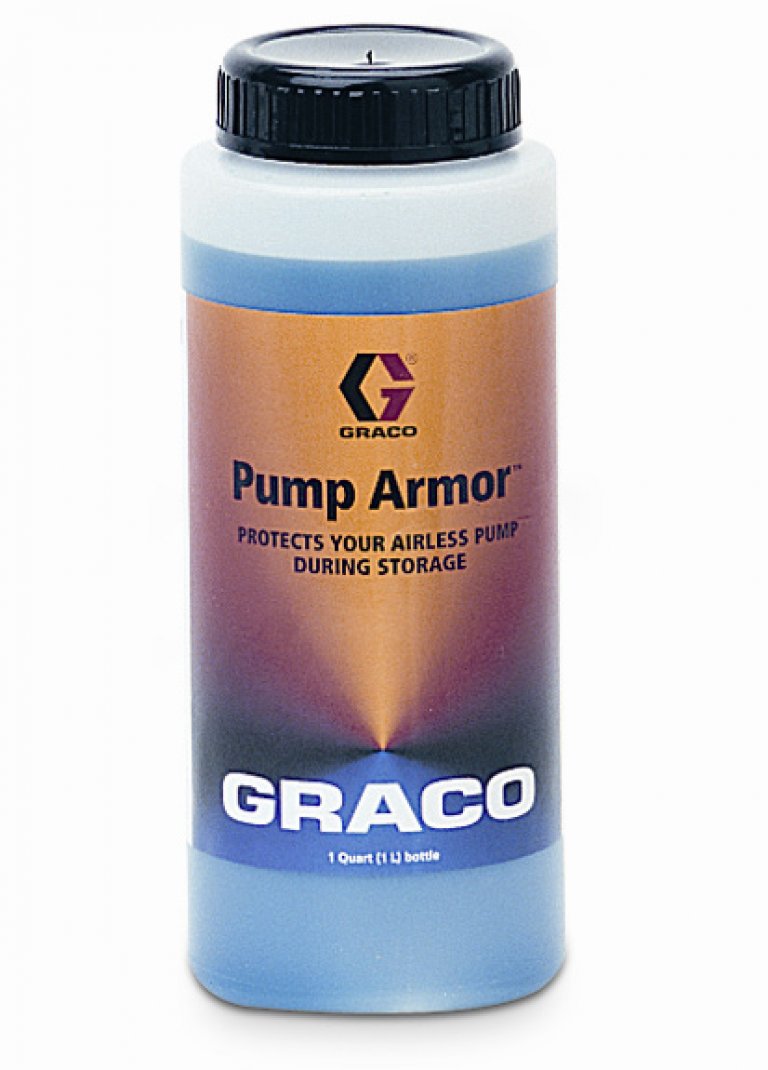

Graco Pump Armor protective liquid

Graco Pump Armor protective liquid

After cleaning, flush the device with Pump Armor to create a protective sleeve that protects against frost and corrosion in the device.

  • 1.0 litre bottle

Graco Pump Armor protective liquid (Article No. 10012387)

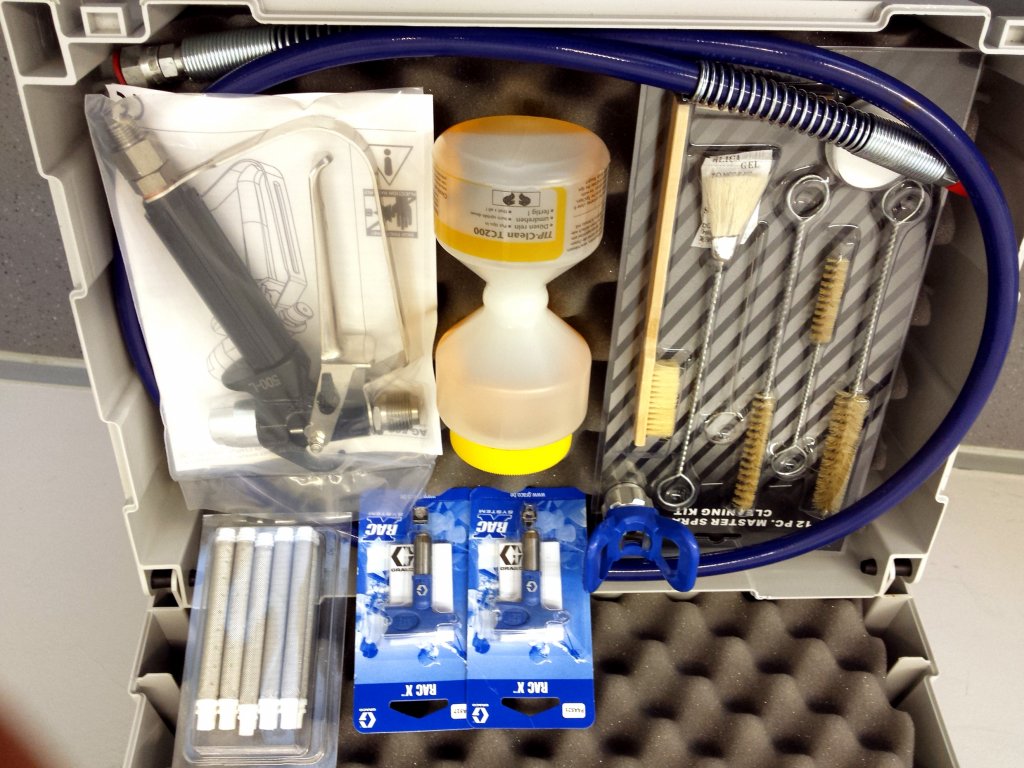

First aid airless set “Dispersion”

First aid airless set “Dispersion”

Provided in emergency kit:
airless gun AG500-L-G, 10 x white plug-in filter, nozzle holder RAC X, reversible nozzle RAC X 517, reversible nozzle RAC X 521, whip hose ¼”, TipClean, brush cleaning kit

First aid airless set “Dispersion” (Article No. 10042282)
