The perfect 230 V piston pump airless sprayer for highly viscous materials and very large objects
Benefits at a glance
- Versatile in use
- Simple operation
- High delivery rate, up to 8.6 l/min.
- Proven, robust technology
The inoSPRAY M7 is perfect for high-viscosity materials (spray-on fillers) and very large objects.
_______________
* The machine is also available in 110 V
Alternative Machines
Service details
| Operating pressure | bar | up to 0 - 230 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 3,0 |
| Delivery rate (depending on the material) | l/min | max. 8,6 |
| Conveying distance (depending on the material) | m | max. 45 |
| Nozzle size | " | max. 0,047 |
| Hose connection | " | 1/2 |
| Machine technique | Airless devices | |
| Dimensions (L x W x H) | mm | 690 x 810 x 780 |
| Weight | kg | approx. 67 |
inoSPRAY M7 | |
| Airless spattling compounds | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Clear varnishes | |
| EP and PU injection resins | |
| External dispersion paints | |
| Fire protection coats | |
| Highly viscous materials | |
| Internal dispersion paints | |
| Pigmented varnishes | |
| Primers | |
| Silicate paints | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Stains | |
| Varnishes greater than 21°C | |
| Water-based varnishes | |
| Wood preservatives |
Ready-to-spray set
Item no. 10044423
Scope of delivery
inoSPRAY M7 Set:
- Material hose Ø 12.7 mm, 1/2“, 15 m
- AG 190 LB gun
- Swivel joint and thread adapter
- RAC X nozzle holder
- HDA nozzle 545
- Ceramic ball set (for spray-on filler) built in
- Stainless steel ball set (for paint) included
- Display control
- Tool
- TSL liquid
- Protective liquid
- Frame
- 2 running wheels
- Piston pump unit
- Operating instructions
inoSPRAY Temp, heating hose for airless devices
For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.
| Technical data: | |
| Operating pressure: | 250 bar |
| Nominal width: | 10 mm e.g. for dispersions, 8 mm for varnish |
| Connection: | 3/8“ IT |
Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable
High-pressure / airless hoses
Colours: yellow / blue / black
INOTEC AG 500 L airless gun
- High-quality airless gun with 4-finger trigger
| Technical data: | |
| Needle position / ball: | 5 mm |
| Operating pressure: | 500 bar |
| Receptacle for nozzle holder: | 7/8“ |
| Swivel joint | with 1/4” hose connection |
| Filter | 60 Mesh |
| Adapter | V2A 1/4” IT – M16 x 1.5 ET |
Scope of delivery:
Gun without nozzle holder / nozzles
Gun filter for AG 500 L

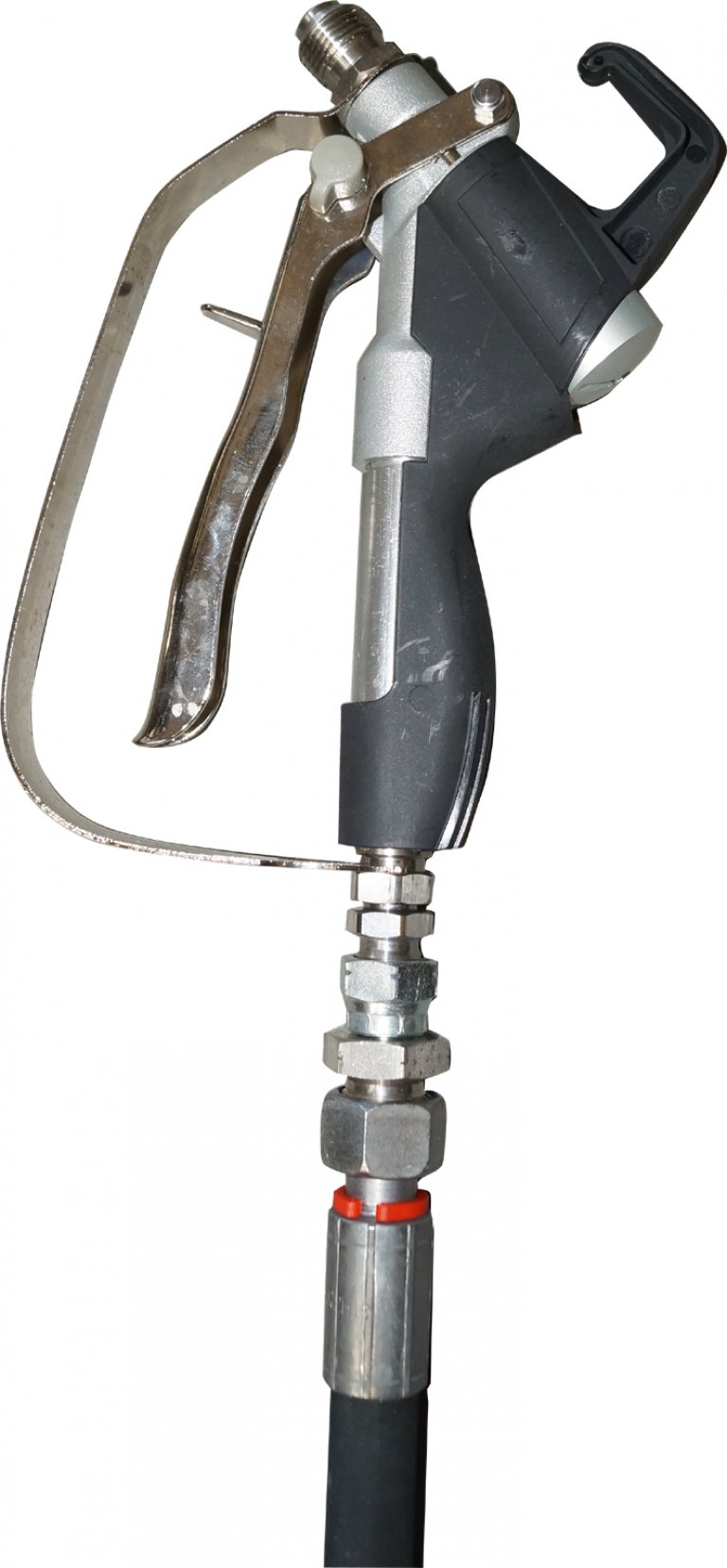

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP
- Connection 3/8” male, including swivel / Maximum pressure: 250 bar
Optional (not included in the scope of delivery):
- RAC X nozzle holder (for F12 HP, F30 HP, F70 HP)
- HDA nozzle 439 (for F12 HP)
- HDA nozzle 543 (for F30 HP)
- HDA nozzle 655 (for F70 HP)
- Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 1“ AG (for F70 HP)

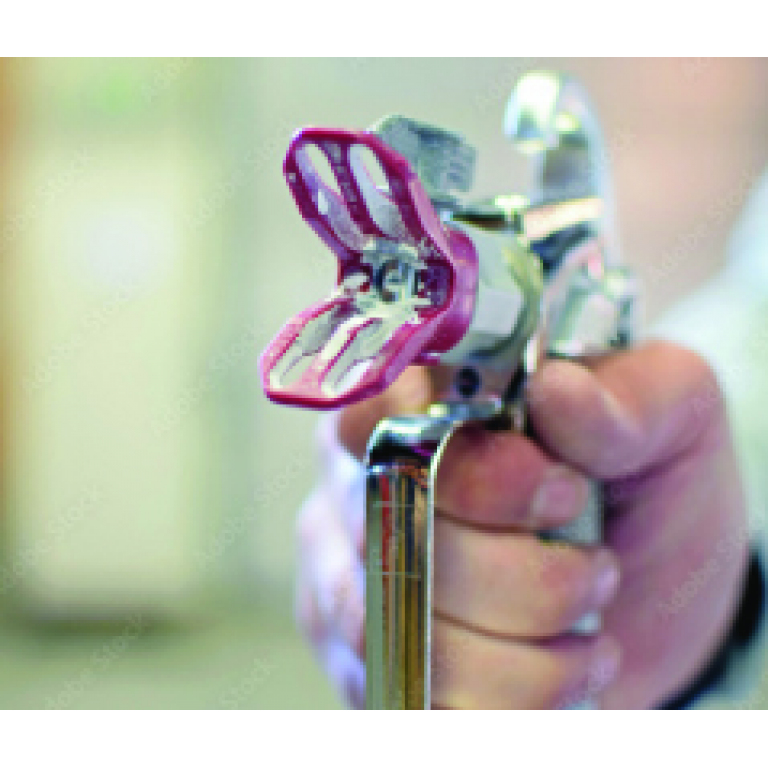

Graco RAC X nozzle holder for RAC X nozzles
- Operating pressure: 280 bar
- Suitable for:
Graco PAA, FFA, HDA, WA nozzles
Graco FFA nozzles
for RAC X nozzle holders (FFA = Fine Finish Application)
- Colour: green
- E.g. for paint, mordents, clear varnishes, varnishes
Graco PAA nozzles
for RAC X nozzle holders (PAA = Professional Airless Application)
- Colour: blue
- E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications
Graco HDA nozzles
for RAC X nozzle holders (HDA = Heavy Duty Application)
- Colour: brown
- E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications
Graco RAC X nozzle extension
- With 7/8” thread
- With RAC X nozzle holder (not including nozzle)
Graco Cleanshot shut-off valve set
The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle
Graco suction filter
For your device to work reliably, the inlet strainer should be kept clean at all times, thus guaranteeing a good flow of material. Pre-filtering is gentle on your pump and extends its service life.

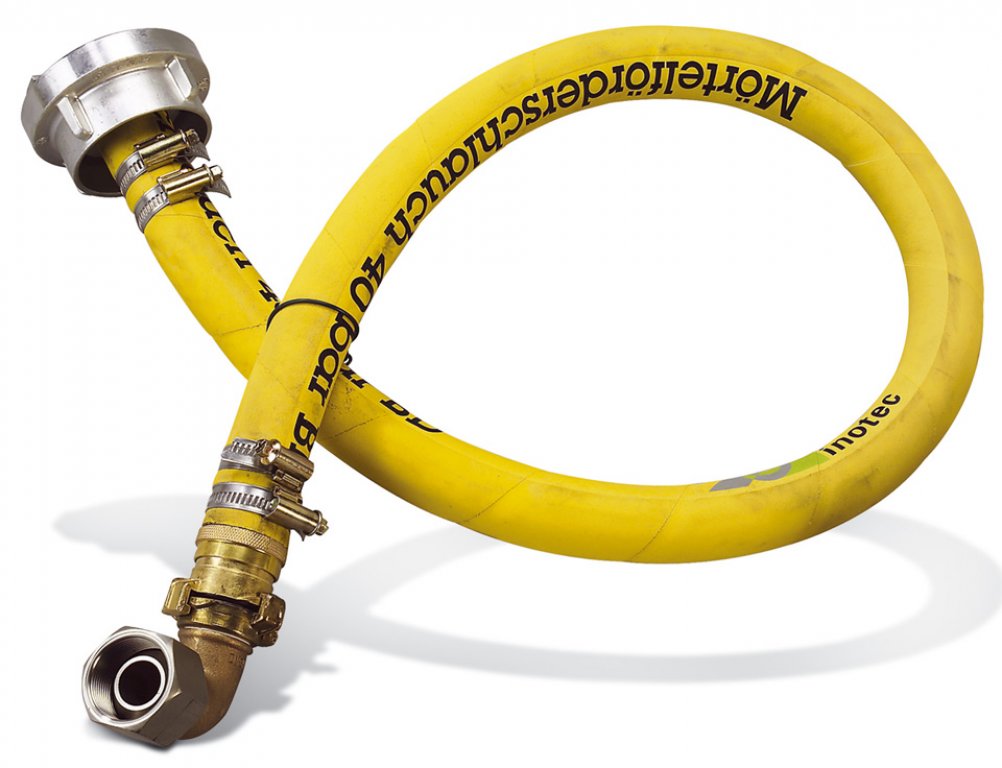

Container suction system, 1.4 m, 1” connection
- For connecting to airless devices with a 1” internal thread and C coupling for connection to containers
Material hopper for paint or filler
- Hopper volume: 90 l
- (Without bag mangle)
Bag mangle for material hopper
Tip-Clean nozzle cleaning set for airless nozzles
For quick and simple cleaning and preservation of airless nozzles.
Transition nipple
This connection is rigid; does not rotate
- For connecting a variety of hoses
Double nipple
- Hose connection – this connection is rigid; does not rotate
Graco TSL liquid (= neck sealing lubricant)
Loosens hardened spray material on piston rods or slows down their hardening process while reducing friction, wear or abrasion at the same time.
- 0.25 litre bottle
Graco Pump Armor protective liquid
After cleaning, flush the device with Pump Armor to create a protective sleeve that protects against frost and corrosion in the device.
- 1.0 litre bottle

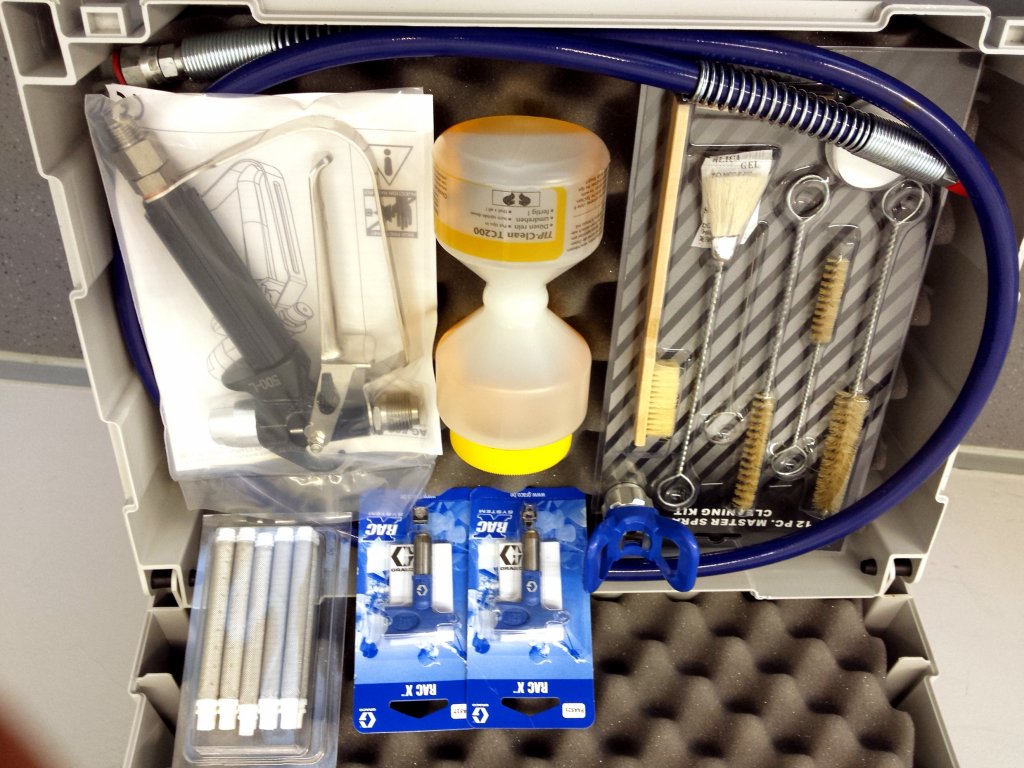

First aid airless set “Dispersion”
Provided in emergency kit:
airless gun AG500-L-G, 10 x white plug-in filter, nozzle holder RAC X, reversible nozzle RAC X 517, reversible nozzle RAC X 521, whip hose ¼”, TipClean, brush cleaning kit
