inoCUT ic127 - Cutters

The handy and lightweight hot wire cutter for ETICS insulation boards

Benefits at a glance

Multi-ply, environmentally-friendly painted Multiplex plywood with scaling
Push-button (transformer for short-time operation)
Swivelling cutting bar up to 45 °
Depth stop for rebate, groove or separating cuts
Swivelling plate support up to 60 °
Versatile and extendable

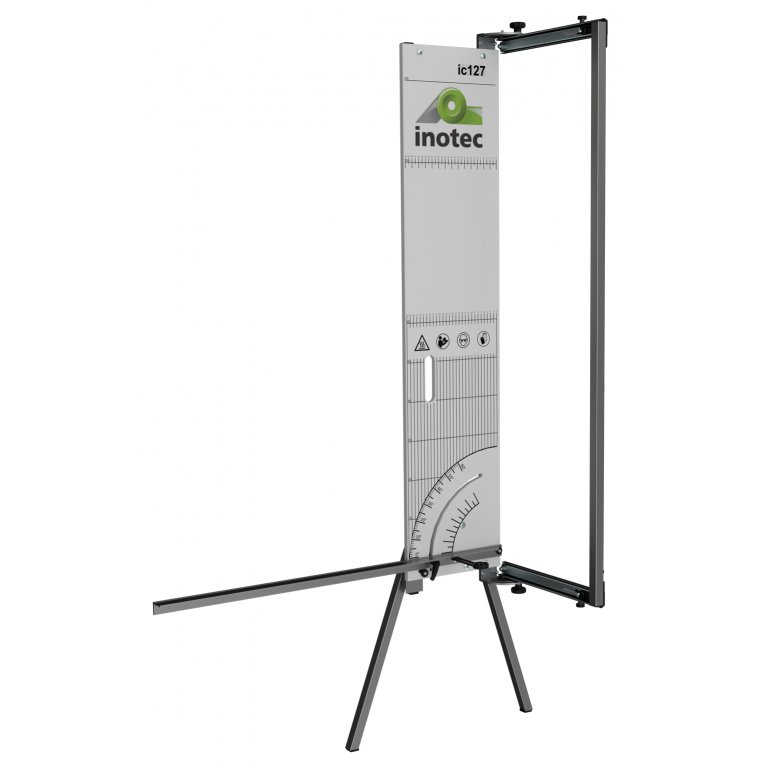

The handy and lightweight hot wire cutter inoCUT ic127 is a practical and precise high-end device.
It is used as a standing unit. The device can also be attached to the rail using the integrated anti-tilt device.
The swivelling insulation board support also holds thick insulation boards in the device.

Alternative Machines

Downloads

INOTEC Cutters

Complete Catalogue EN

Operating voltage	V/Hz/A	110-230 / 50 / 16
Cutting length	cm	max. 127
Cutting depth	cm	max. 90° = 28 cm / 45° = 20
Machine technique		Cutters
Dimensions (W x H x D)	mm	415 x 1850 x 150
Weight	kg	approx. 11,3

	inoCUT ic127
Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts
Rolls of clamping felt
