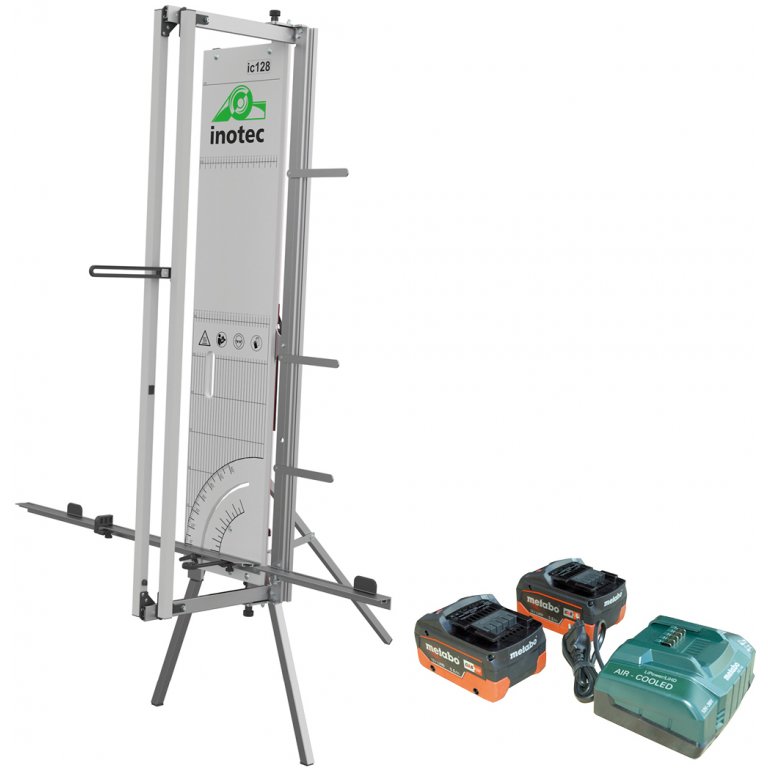

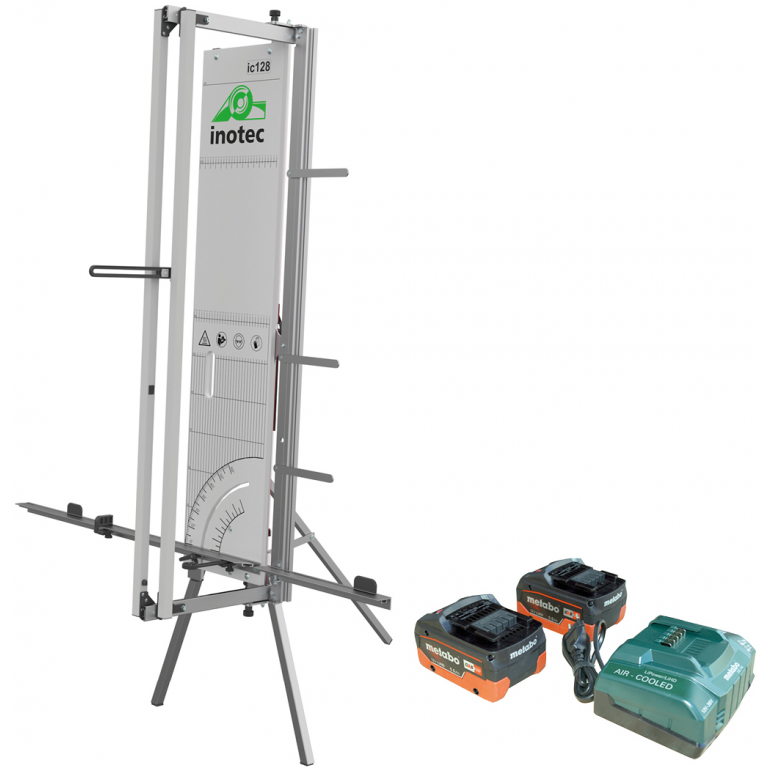

Battery powered hot wire cutter for wireless use with ETICS insulation boards
Benefits at a glance
- Up to 200 cuts with one charge*
- Work without a power supply
- No cable reels and no cable lying around
- Push button operation prevents unwanted battery usage
- Supporting rails on both sides with panel guides
- Integrated corner cutting guides and freestanding support
- Railing fastening (strap) to prevent tipping over
* Cuts over the short panel length using the eco setting which only heats the wire up over a limited length (max. 62 cm) and new, fully charged battery. More than 100 cuts possible across the entire length of the panel. Cutting performance depends on the ambient temperature. The natural ageing of batteries will decrease the cutting performance.
The new hot wire cutting device inoCUT ic128 Akku also works reliably without a socket, thanks to a high-performance lithium-ion battery (18 V / 5 Ah). Wireless and flexible cutting permits up to 100 cuts across the entire length of the panel and 200 cuts across the short side of the insulation board. Rafter beam and corner cut-outs for window sills are also easily achievable with the optional corner cutter.
| Operating voltage | V/Hz/A | 5 Ah / 18 / - / - |
| Cutting length | cm | max. 128 |
| Cutting depth | cm | max. 45° = 20 cm / 90° = 30 |
| Machine technique | Cutters | |
| Dimensions (W x H x D) | mm | 415 x 1850 x 150 |
| Weight | kg | approx. 13,5 |
inoCUT ic128 Battery | |
| Corkboard | |
| Foam glass panels | |
| Hemp boards | |
| Mineral wool | |
| Phenolic resin panels | |
| Polystyrene rigid foam panels | |
| Polyurethane panels | |
| Potential cuts: Cut-outs | |
| Potential cuts: Diagonal cuts | |
| Potential cuts: Diagonal cuts with mitre joints | |
| Potential cuts: Groove cuts | |
| Potential cuts: Layered cut | |
| Potential cuts: Layered cuts with mitre joints | |
| Potential cuts: Layered groove cuts | |
| Potential cuts: Mitre cuts | |
| Potential cuts: Separating cuts | |
| Potential cuts: Straight cuts | |
| Rolls of clamping felt |
Scope of delivery
inoCUT ic128 Battery
Item no. 10043424
- Base plate
- Swivelling cutting bracket
- Left-hand and right-hand support strip with integrated corner cutting guides
- 2 x Batteries 18 V / 5 Ah
- High-speed charger
- Depth stop for rebating, grooving and separating cuts
- Freestanding support
- Swivel base
- Railing fastening (strap)
- Operating instructions

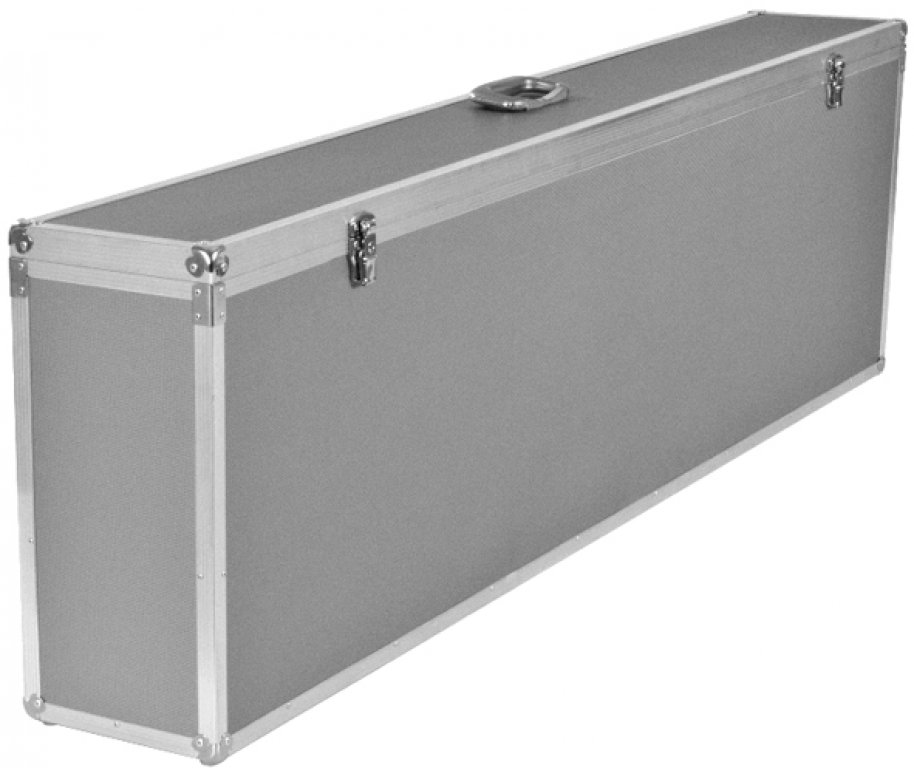

Transport case made of aluminum
- for inoCUT ic127 and ic128 Battery
Aluminium transport case (Article No. 10044543)

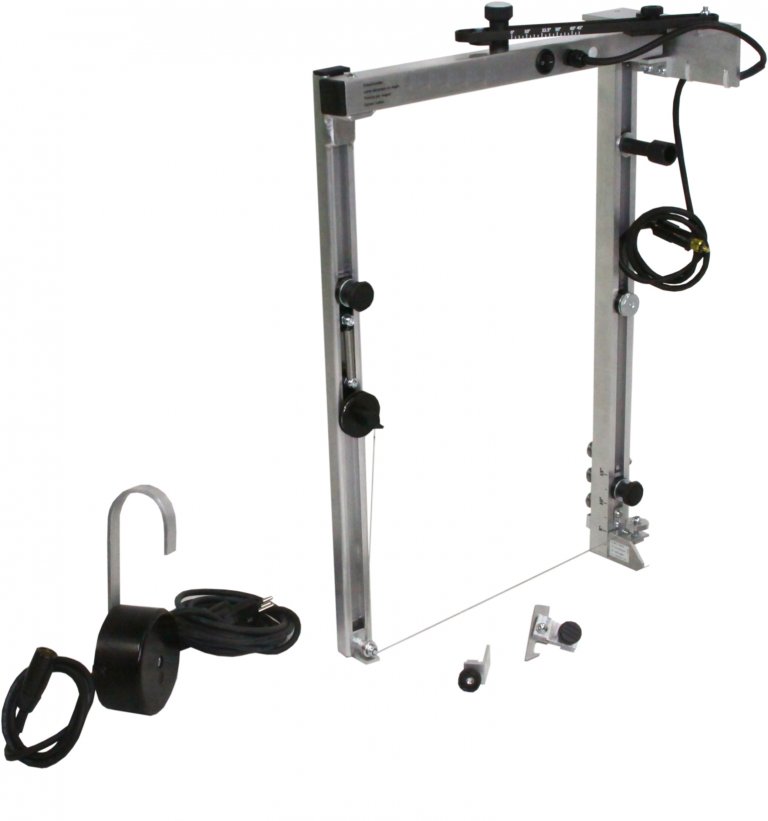

Corner cutter for inoCUT ic128 / inoCUT ic128 Battery
- Rafter cutouts, corner cutouts in window sills, plasterboard, lintels, etc.
- 0 - 90° swivel
- Degree scale and slider for diagonal cut repetitions
- Tool-free, fast wire change thanks to integrated reserve wire spool
- Separate transformer (not with the battery version)
- With nylon pouch
Corner cutter for inoCUT ic128 (Article No. 10042900)
Spare wire with a diameter of 0.65 mm - 20 m
Spare wire with a diameter of 0.65 mm (Article No. 10026102)

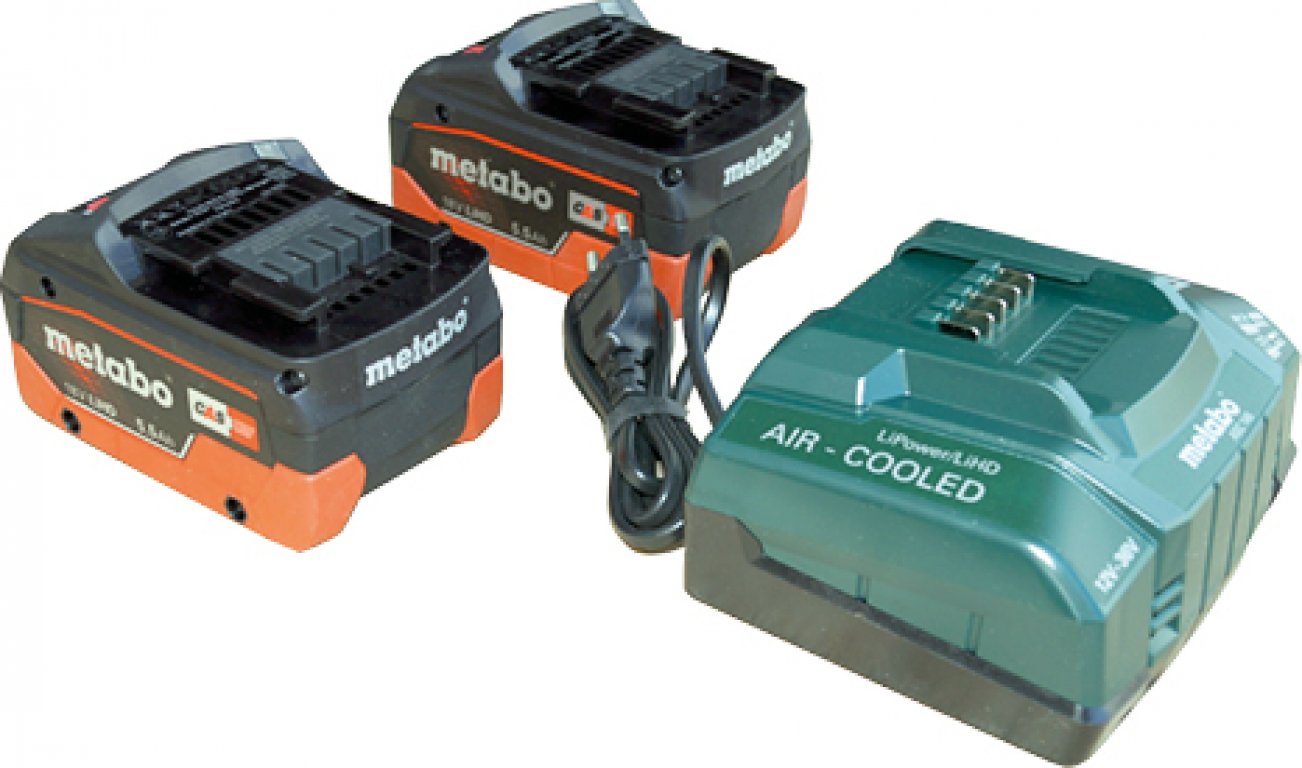

Battery for cutting device inoCUT ic128 Battery
Battery 18 V / 5.0 Ah, high-speed charger
Battery for cutting device inoCUT ic128 Battery (Article No. 10044674)
