The universal cutter for insulation material with a cutting depth of up to 30 cm
Benefits at a glance
- Short-stroke parallelogram for user-friendly operation
- Preset insulation thickness
- Positive guide for electric cordless sabre saw
- Swivel cutting bracket from -5° to +45°
- Integrated double folding foot with an extra long foot profile for optimal device positioning even with heavy plates
- Large swivel plate supports on both sides for precise and individual oblique cuts
- Wall support, making it possible to work on the scaffold without an independent support
- Telescopic freestanding support
The new inoCUT icM127 Pro makes cutting all commercially available insulating materials child’s play.
The new cutting device for electric cutting has a universal positive guidance for the saw. Exact mitre cuts, as well as straight and diagonal cuts with a mitre can be performed effortlessly and quickly with the electric cordless sabre saw included in the scope of supply.
| Cutting length | cm | max. 127 |
| Cutting depth | cm | max. 90° = 10 - 30 cm / 45° = 18 |
| Machine technique | Cutters | |
| Dimensions (W x H x D) | mm | 350 x 1820 x 420 |
| Weight | kg | approx. 24,0 |
inoCUT icM127 Pro | |
| Corkboard | |
| Foam glass panels | |
| Hemp boards | |
| Mineral wool | |
| Phenolic resin panels | |
| Polystyrene rigid foam panels | |
| Polyurethane panels | |
| Potential cuts: Cut-outs | |
| Potential cuts: Diagonal cuts | |
| Potential cuts: Diagonal cuts with mitre joints | |
| Potential cuts: Groove cuts | |
| Potential cuts: Layered cut | |
| Potential cuts: Layered cuts with mitre joints | |
| Potential cuts: Layered groove cuts | |
| Potential cuts: Mitre cuts | |
| Potential cuts: Separating cuts | |
| Potential cuts: Straight cuts | |
| Rolls of clamping felt |
Scope of delivery
inoCUT icM127 Pro
Art.-Nr. 10042638
- Base plate
- Left and right support strip
- Short stroke parallelogram
- Left and right height-adjustable swivel arms
- Folding foot
- Telescopic freestanding support

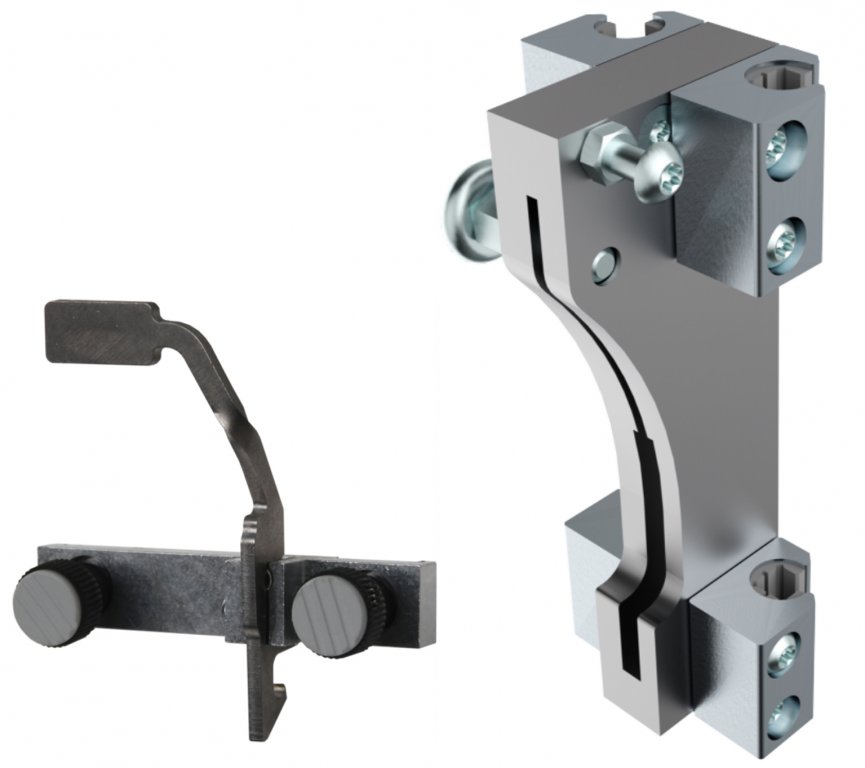

- Guided block with hooks for fixing a Milwaukee sabre saw
- Milwaukee sabre saw with 2 batteries (4.0 Ah Li-Ion), fast charger, 2 saw blades (450 mm)
- Operating instructions
Aluminium transport case for inoCUT icM135 and icM127 Pro

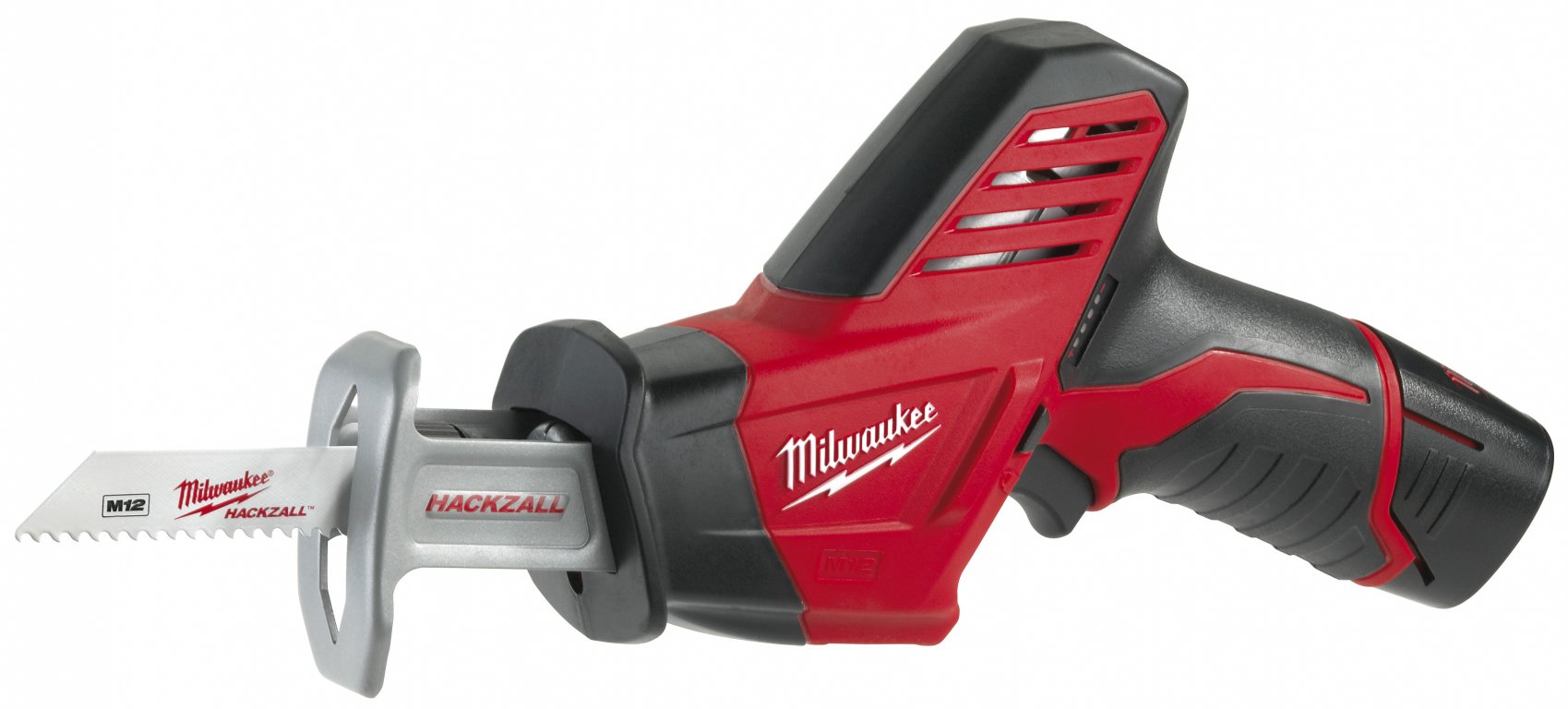

12 volt Milwaukee cordless sabre saw
High-performance 12 volt compact sabre saw. The saw has a cutting depth of up to 450 mm
Technical data:
- Battery: 12 V / 2 Ah Li-Ion
- sawing height: 16.5 mm,
- weight (with battery): 1.2 kg
Scope of delivery:
- 2 batteries
- fast charger
- 2 saw blades
- with case
18 volt Milwaukee cordless sabre saw
High-performance 18 volt compact sabre saw. The saw has a cutting depth of up to 450 mm
Technical data:
- Battery: 18 V / 4 Ah Li-Ion
- sawing height: 20.0 mm,
- weight (with battery): 2.6 kg
Scope of delivery:
- 2 batteries
- fast charger
- with cloth bag
- 2 saw blades
Replacement saw blades for Milwaukee cordless sabre saw
- Length 450 mm, corrugated for Milwaukee sabre saw
