Benefits at a glance
- Lightweight, small and handy
- For liquid and paste-like materials
- Continuously variable speed control using potentiometer
- Simple operation
- Simple cleaning and maintenance
- Detachable plastic material hopper
- For particle sizes up to 6 mm (e.g. finishing plaster)
- Forward and reverse running

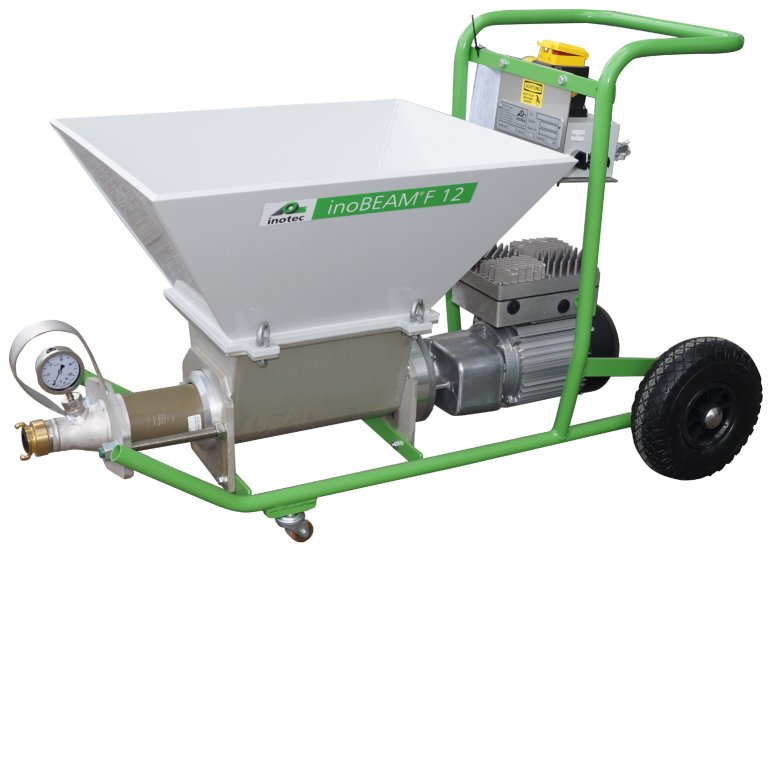

The inoBEAM F12 is a compact and versatile 230 V delivery pump. With the optional sets that are available, the delivery pump can be converted for various fields of application in just a couple of steps. This offers maximum flexibility on your construction site thanks to unlimited areas of application (spraying, bonding, filling, reinforcing and now also paint spraying, etc.) with an unbeatable price/performance ratio.
| Operating pressure | bar | up to 16 |
| Operating voltage | V/Hz/A | 230 / 50 / 16 |
| Drive performance | kW | 1,5 |
| Delivery rate (depending on the material) | l/min | max. 0 - 12 |
| Conveying distance (depending on the material) | m | max. 30 |
| Pressure height (depending on the material) | m | max. 20 |
| Material container | l | 50 |
| Machine technique | Delivery pumps | |
| Dimensions (L x W x H) | mm | 1450 x 530 x 700 |
| Weight | kg | approx. 65 |
inoBEAM F12 | |
| Acoustic renovation paint | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Bitumen | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Concrete bonder | |
| Decorative fine coats | |
| ETICS glue, mineral | |
| ETICS glue, paste-like | |
| Fibour plaster | |
| Fine acoustic finishing coats | |
| Fire protection mortar | |
| Floor leveling compound | |
| Floor spattling compounds | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Liquid woodchip | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F12 (see accessories) | |
| Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F30 (see accessories) | |
| Paste-like textured plasters | |
| PCC- and SPCC-mortar / filler | |
| Porous concrete coats | |
| Rendering base | |
| Renovating plaster systems | |
| Reprofiling mortar | |
| SPCC Spatula | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Spray-on spattling compounds |
Basic module
Item no. 10044357
Scope of delivery
inoBEAM F12:
- Frame
- 2 running wheels & 2 steering wheels
- Plastic material hopper
- Cover for material hopper
- Gear motor
- Electric control system with 10 m connecting cable
- Pump shaft
- Pump housing made from stainless steel
- Mortar pressure gauge
- Tool set
- Assembly spray lubricant
- Operating instructions
Set “D”-F12
for spray applications (12 l / 15 bar)
Item no. 10044358*
Set “HP”-F12
for airless spray-on filling compounds (6 l / 85 bar)
Item no. 10044660*
* For scope of delivery, see accessories

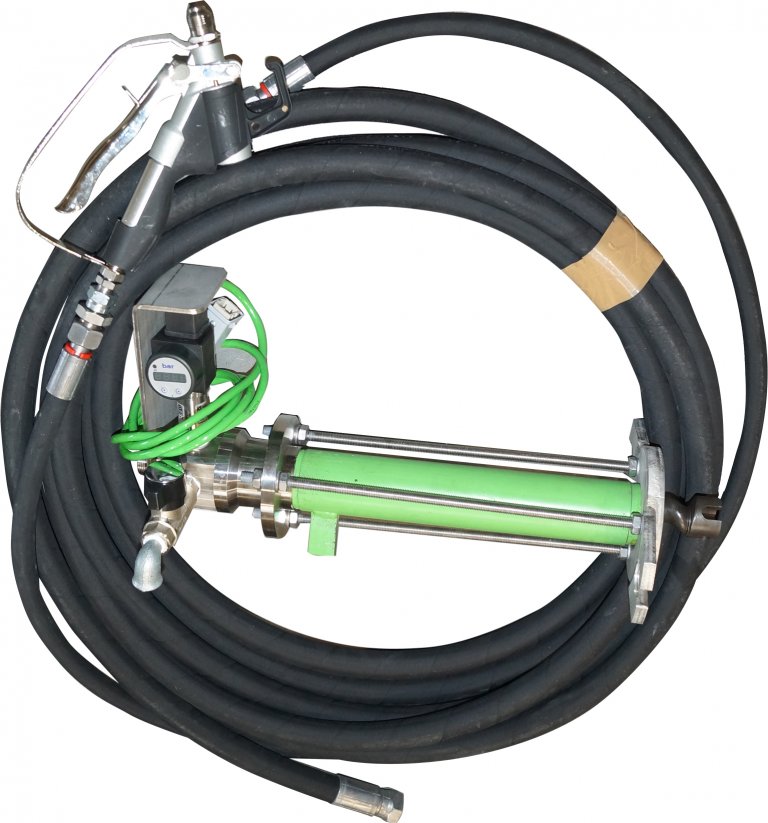

Set “HP”-F12

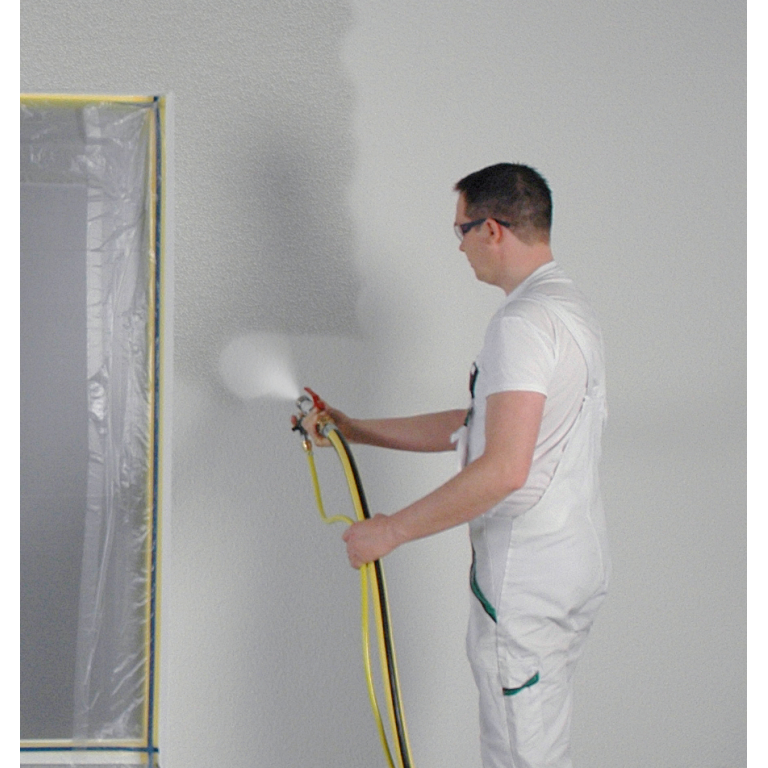

he delivery pump inoBEAM F12 can be converted into a high-performance 230 V airless sprayer using an optional set and just a few, easy steps.
A delivery rate of up to 6 l/min is achieved with 1.5 kW when processing spray-on filler.
Scope of delivery: High-pressure pump SPRAY “short”, 10 m high-pressure hose 3/4“ and 2 m 1/2“, airless gun, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle

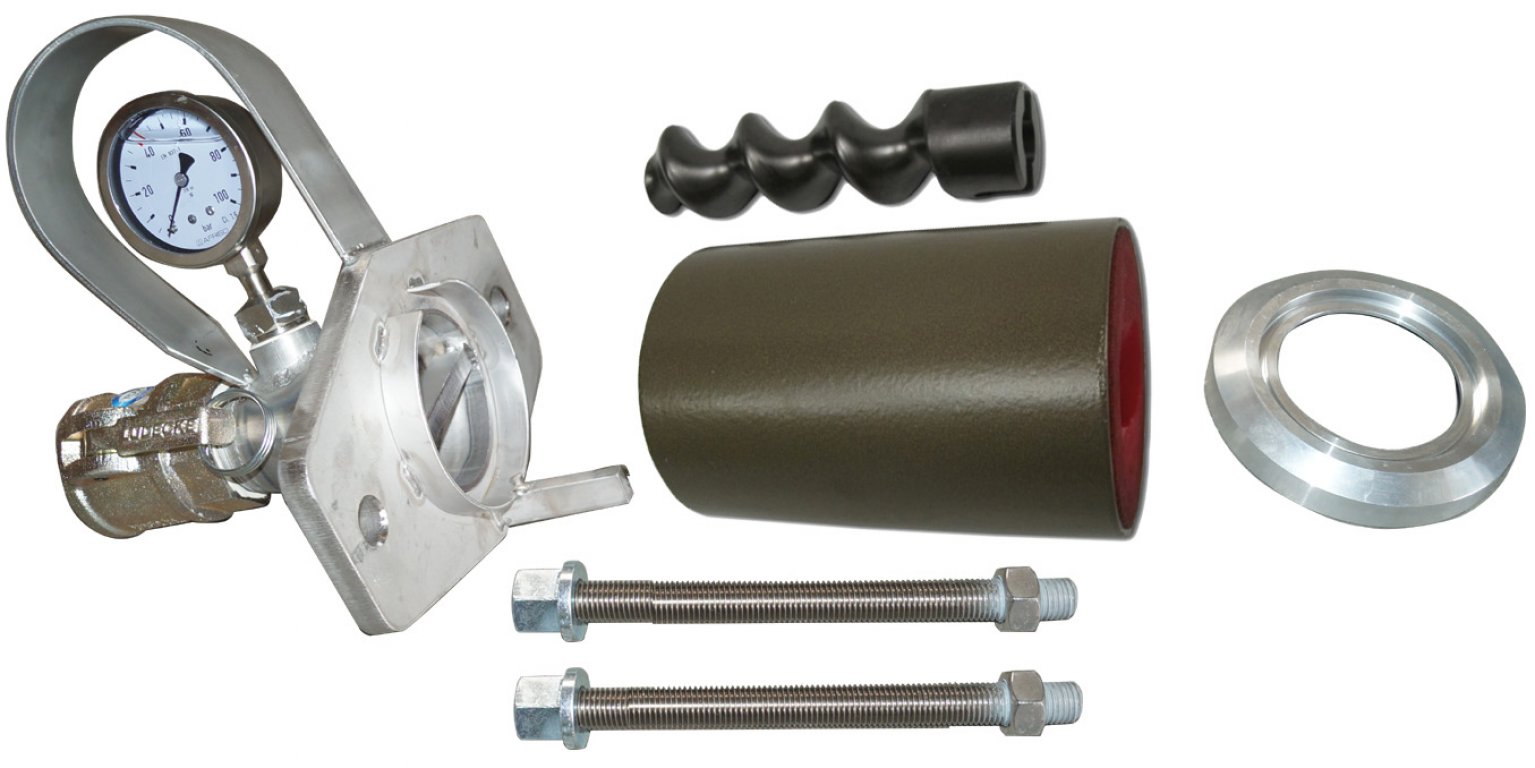

Set “HP”-F12
Ø 89 mm, 12 l/min, 15 bar, e.g., for spray applications
Scope of delivery: Pressure and suction flange with tie rods, mortar pressure gauge, rotor/stator D6-3 Eco gold

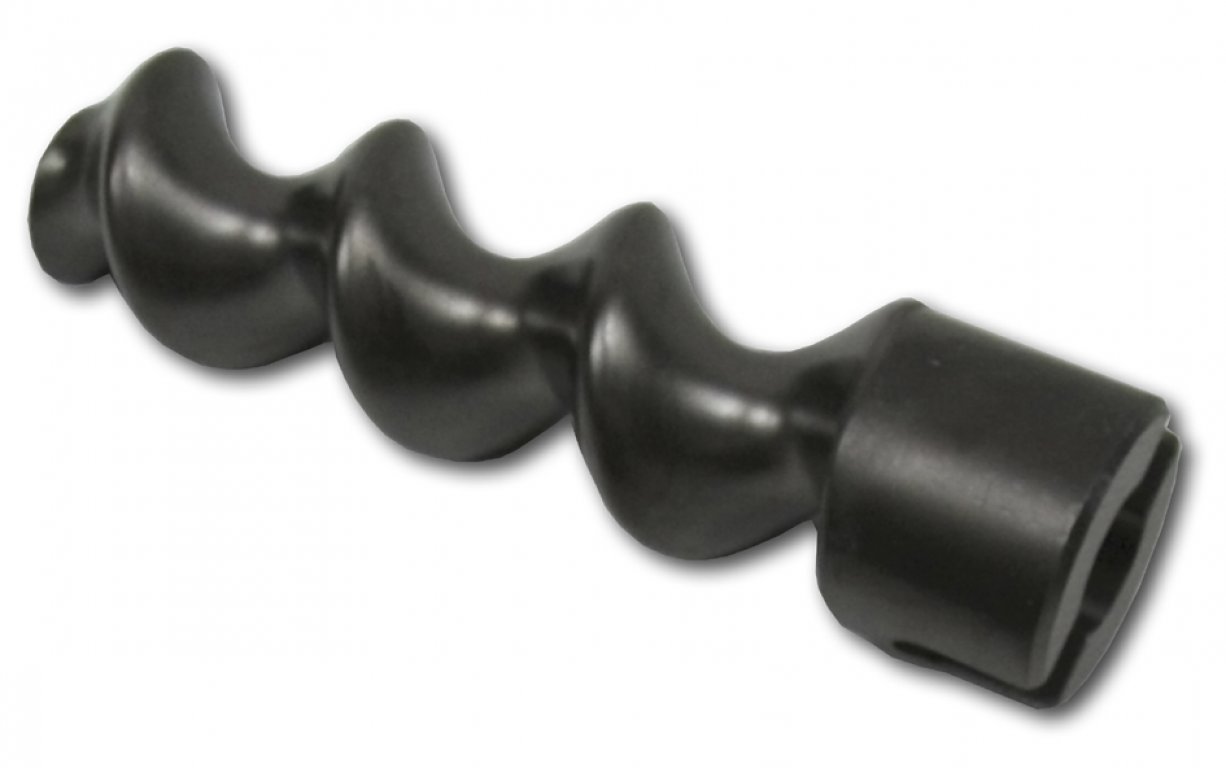

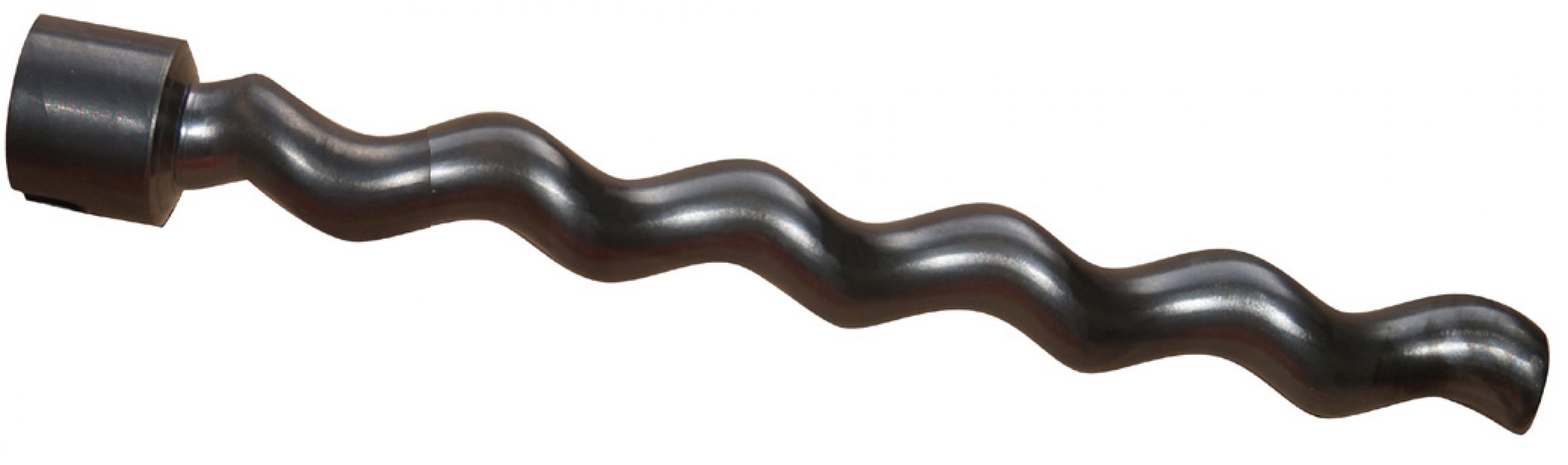

Rotor SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

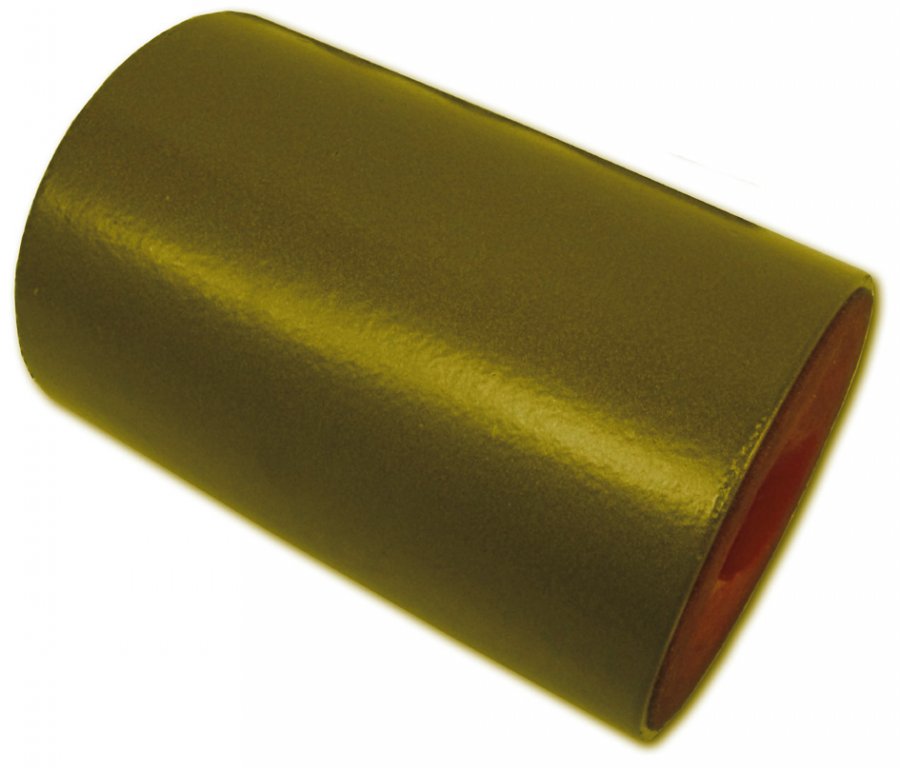

Stator SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

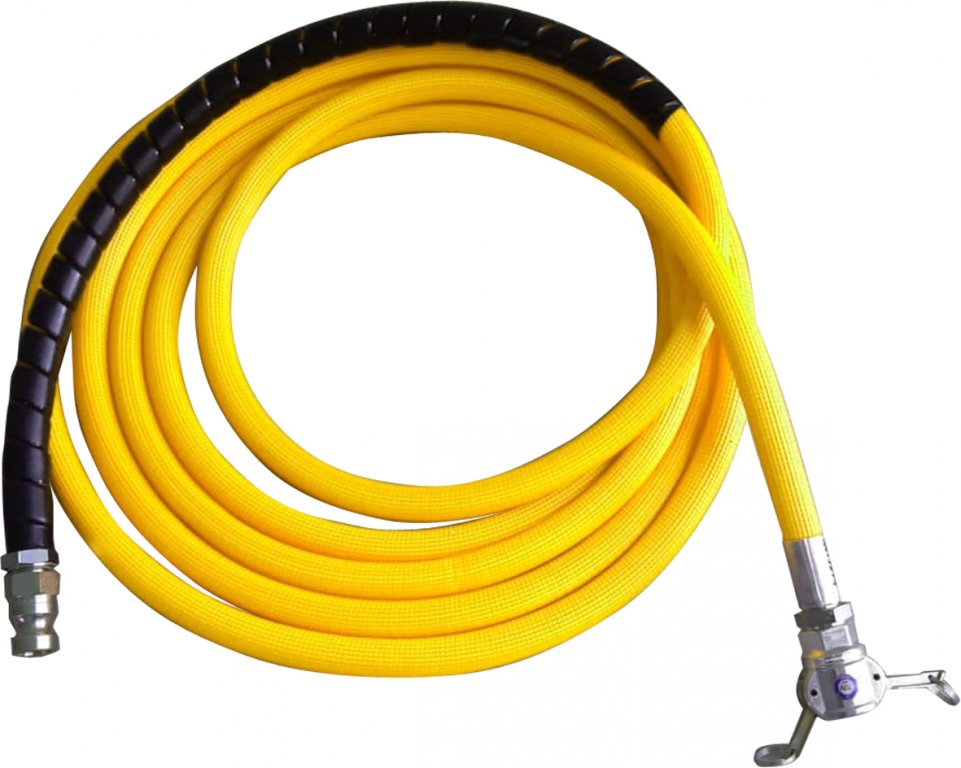

Ultralight hose

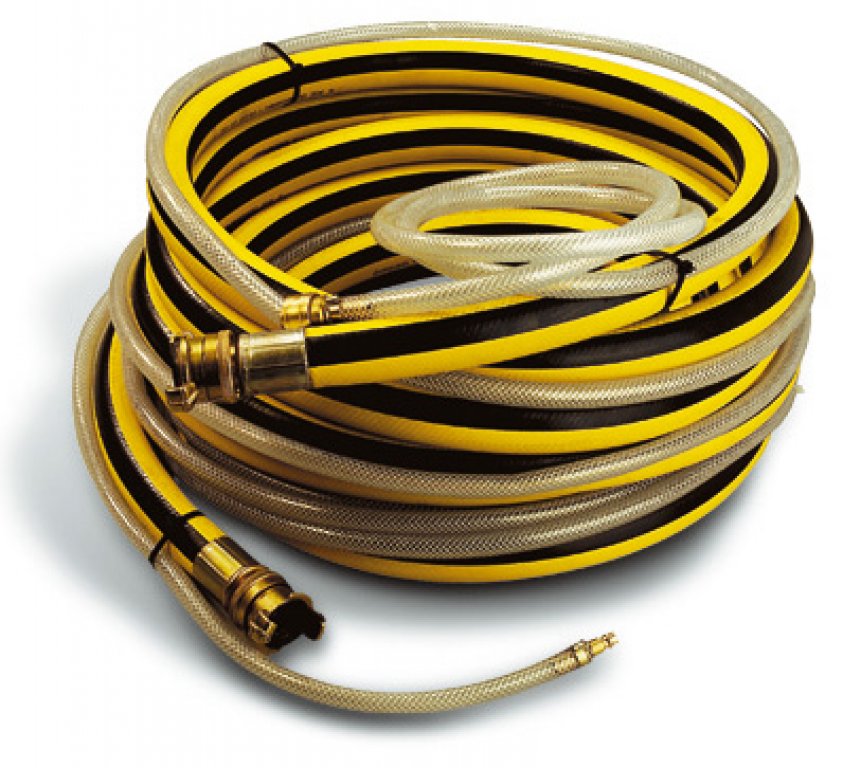

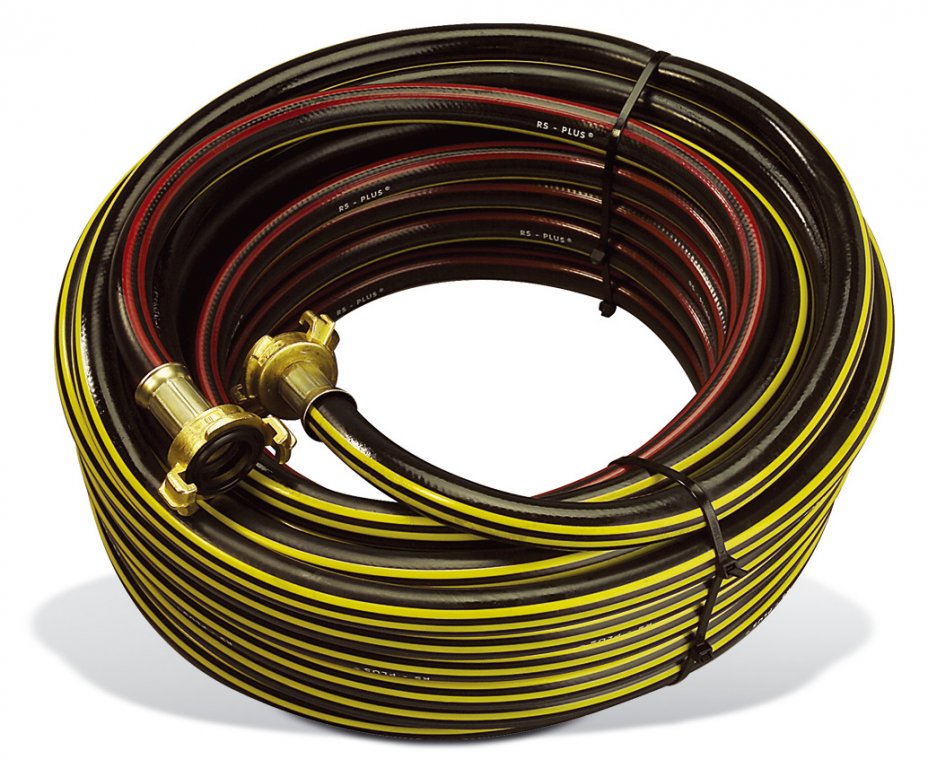

Combined material hose
- For applying, with integrated air hose
- Colour: black / yellow
- Operating pressure: 20 bar
- With GEKA couplings, lockable

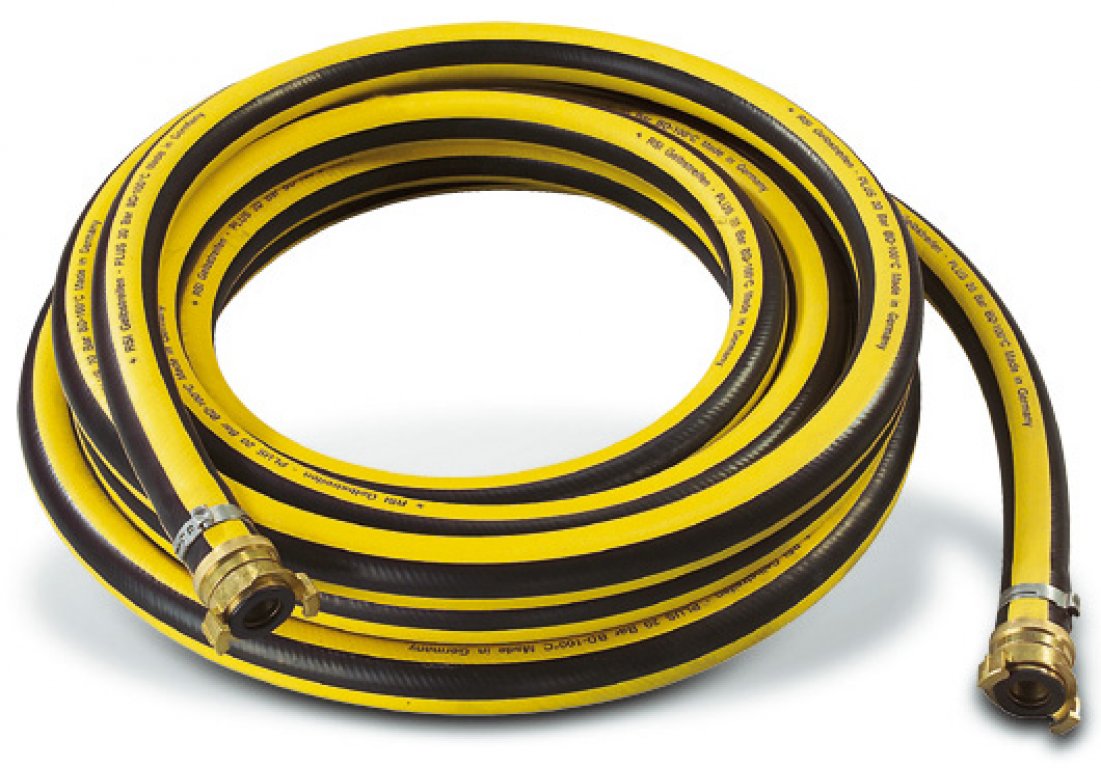

Material hose
- Colour: black / yellow
- Operating pressure: 15 bar
- With GEKA coupling, lockable
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |

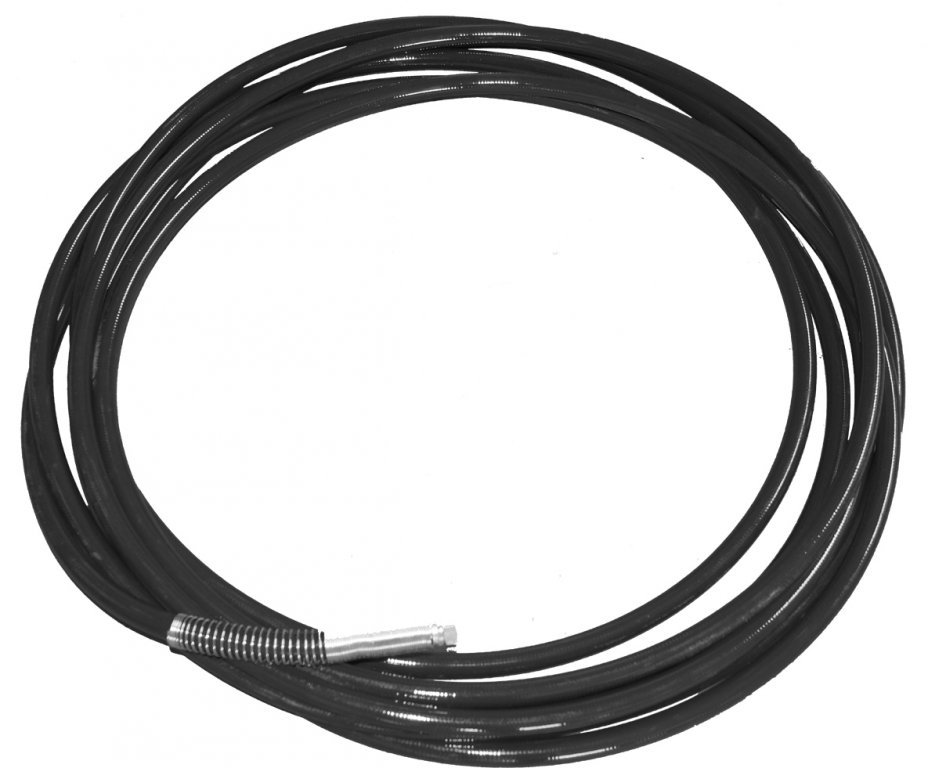

High-pressure / hoses
Flushing hose
- For clearing blockages in mortar hoses

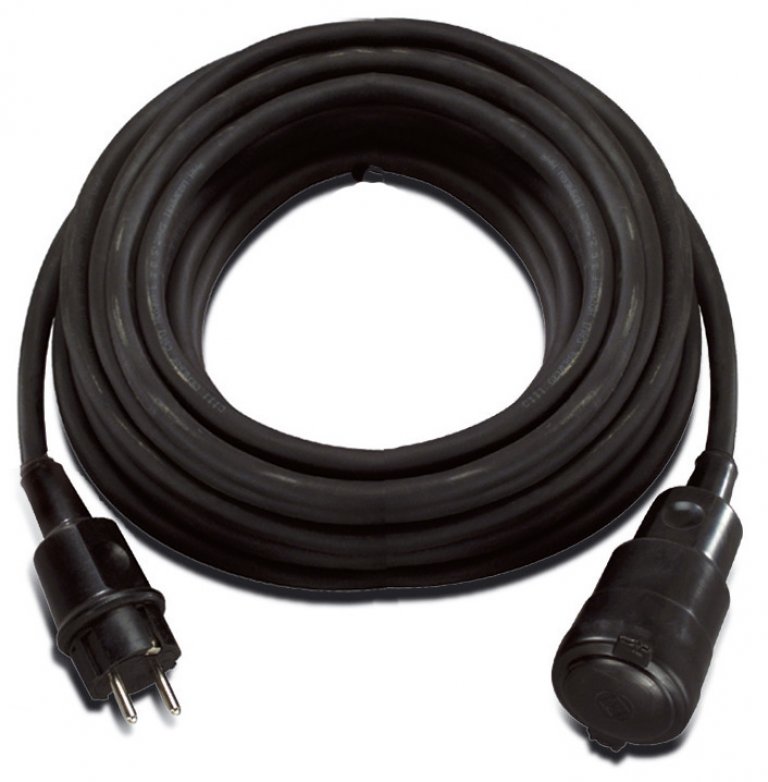

230 V / 3 x 2.5 mm² extension cable
- 16 A Schuko plug and coupling
3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m
- Plastic cable reel with 33 m H07BQ-F3G2,5 cable
- Robust, impact-resistant design, all-round roll-over protection
- 4 protective contact sockets (splash-proof, with self-closing lids)
- Protection class: IP44

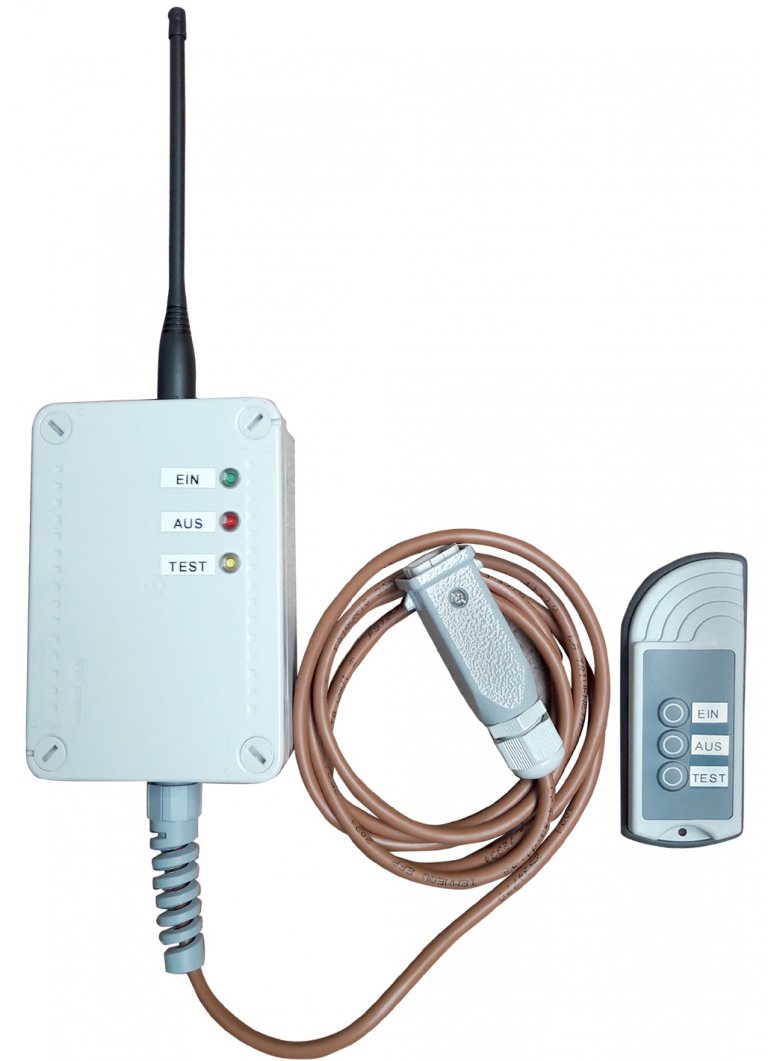

Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST

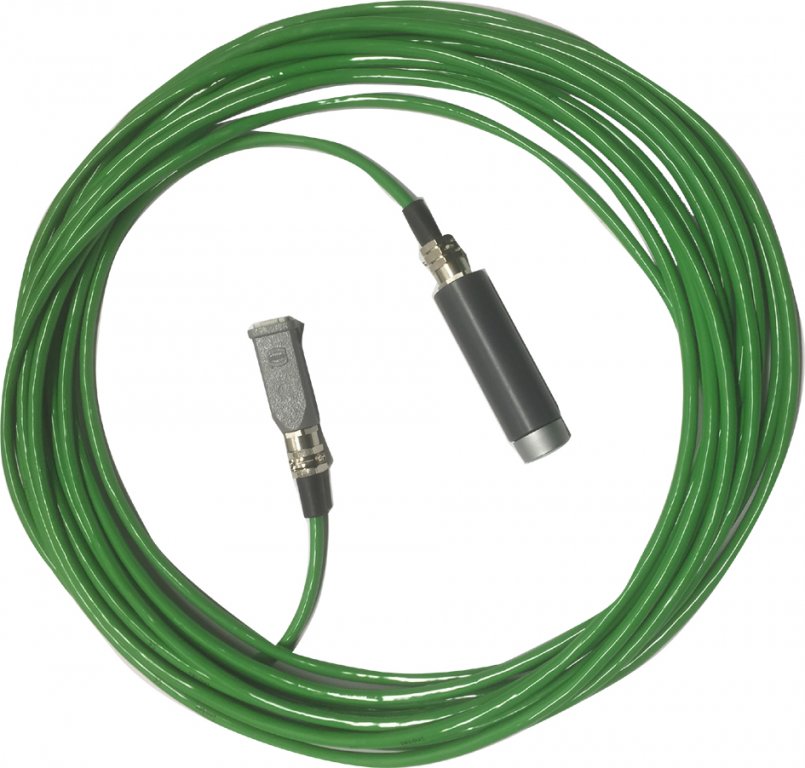

Remote control cable with remote control switch

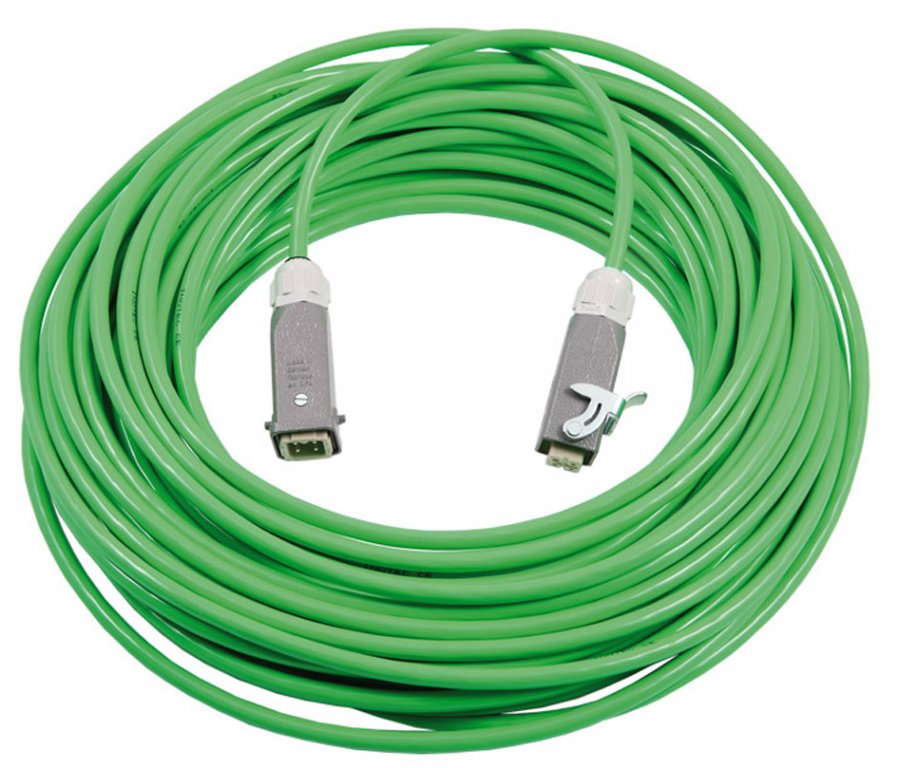

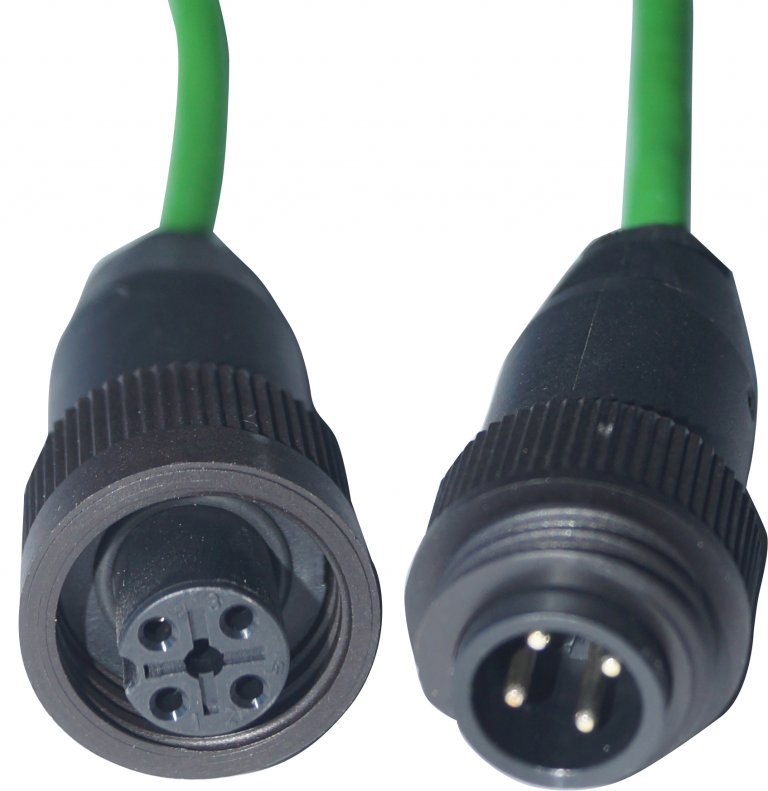

Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun

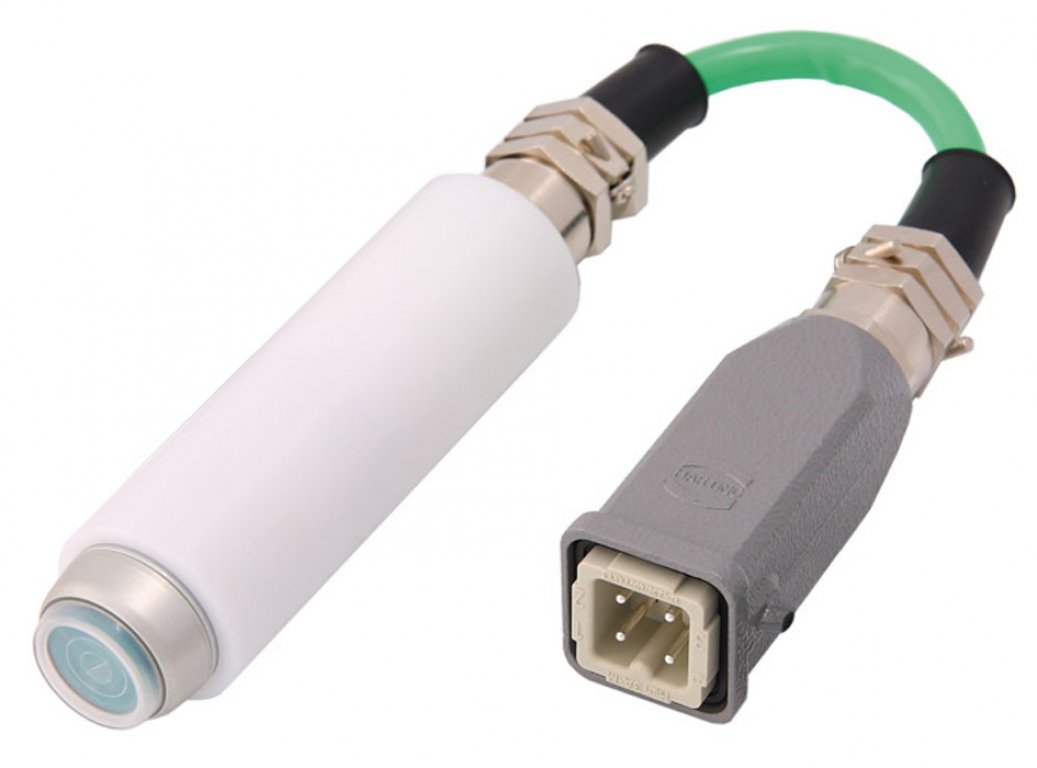

Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Adapter for remote control cable

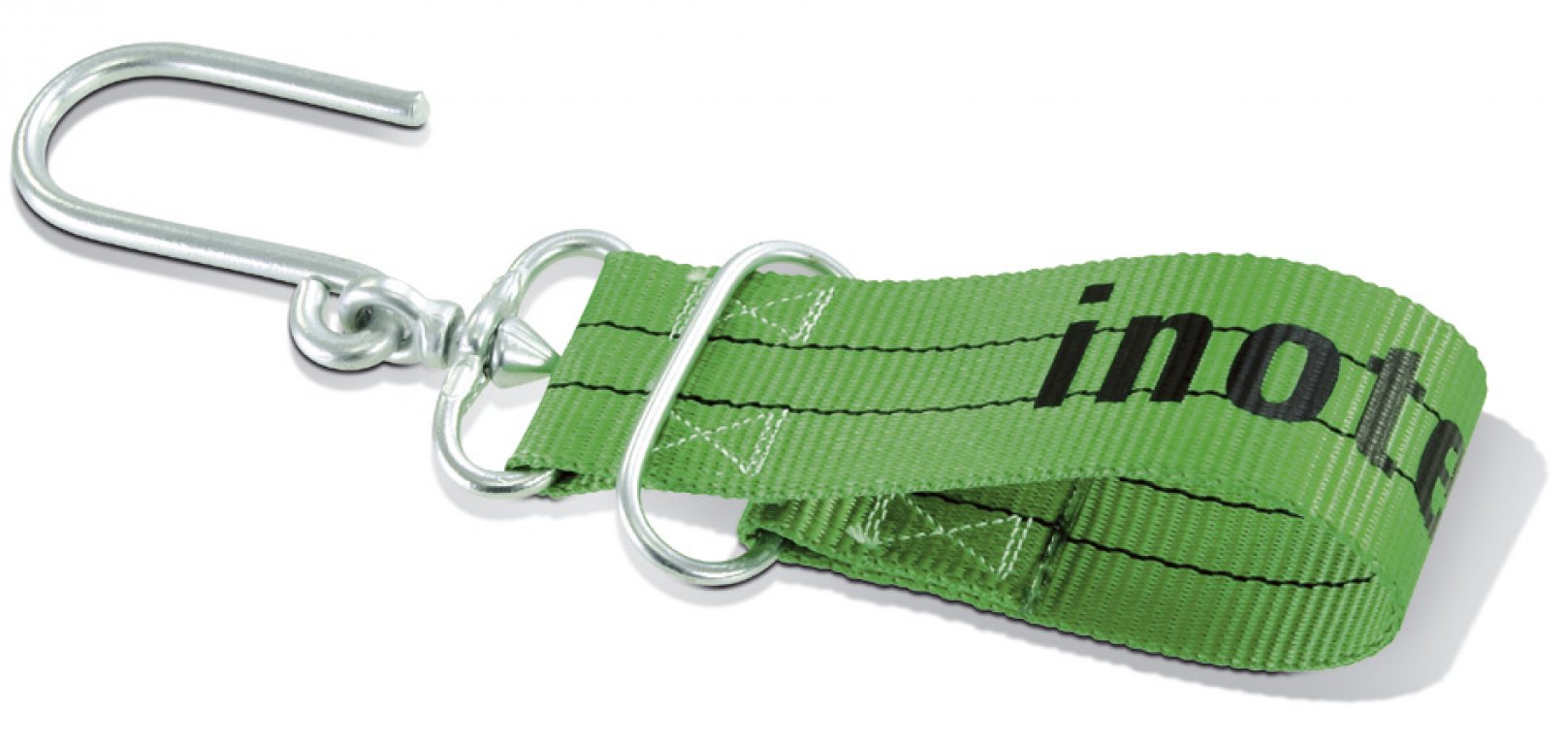

Hose holder
- For rapidly fixing hoses to the scaffold

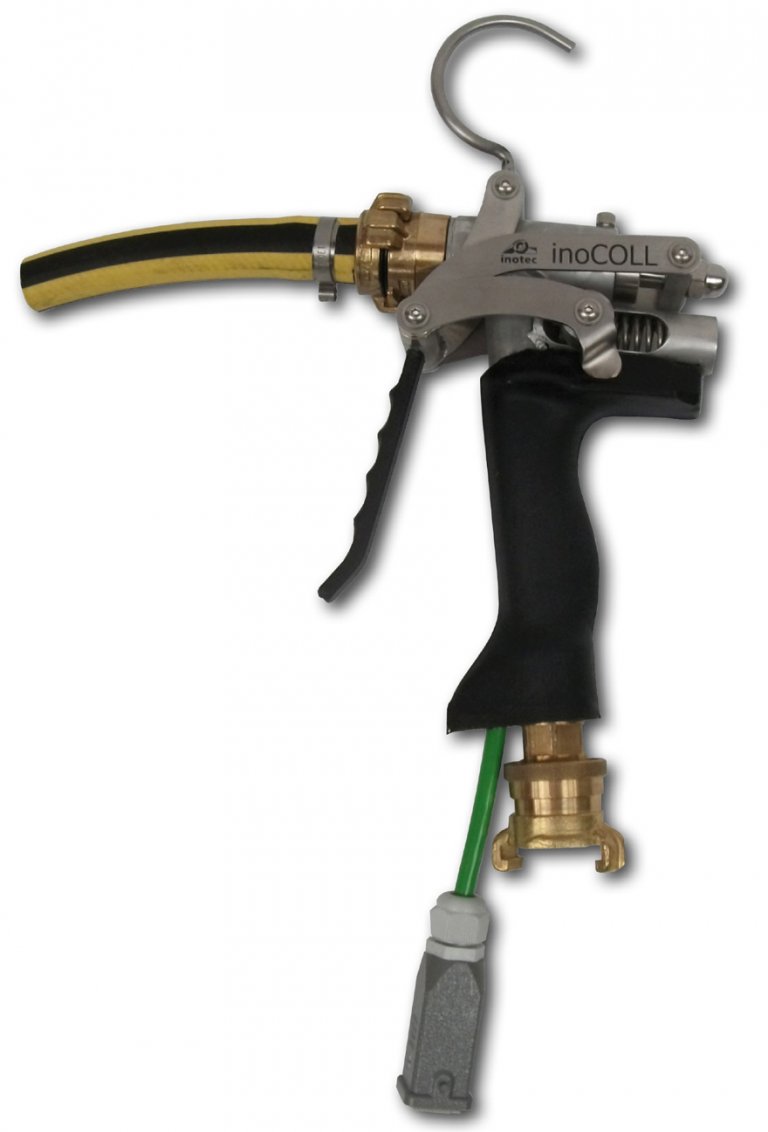

inoCOLL one-handed gun with GEKA coupling
- For bonding and basecoat mortars
- For grit sizes up to 1.5 mm

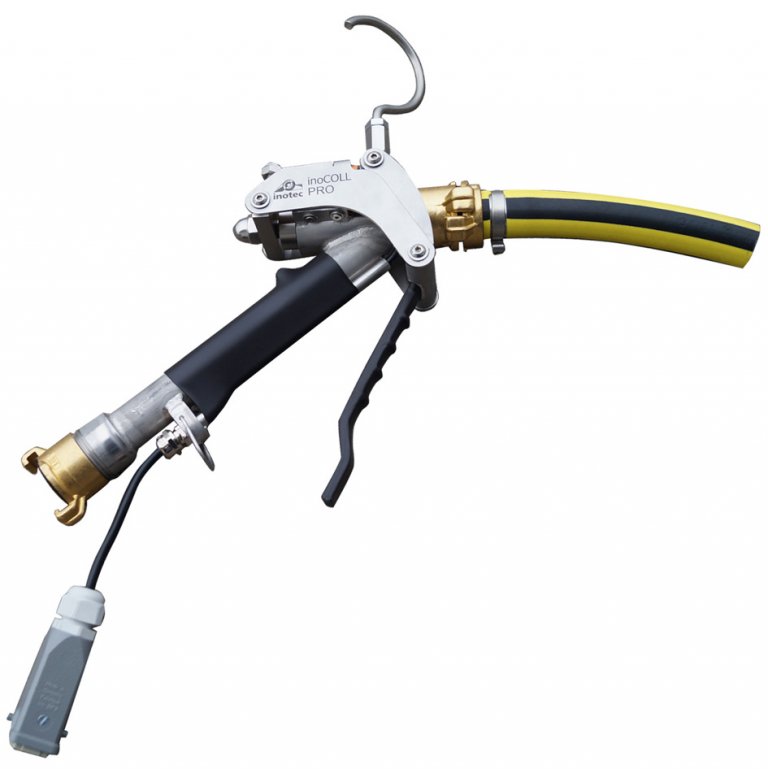

inoCOLL PRO one-handed gun with GEKA coupling
- For bonding and basecoat mortars
- For grit sizes up to 4.0 mm
Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle

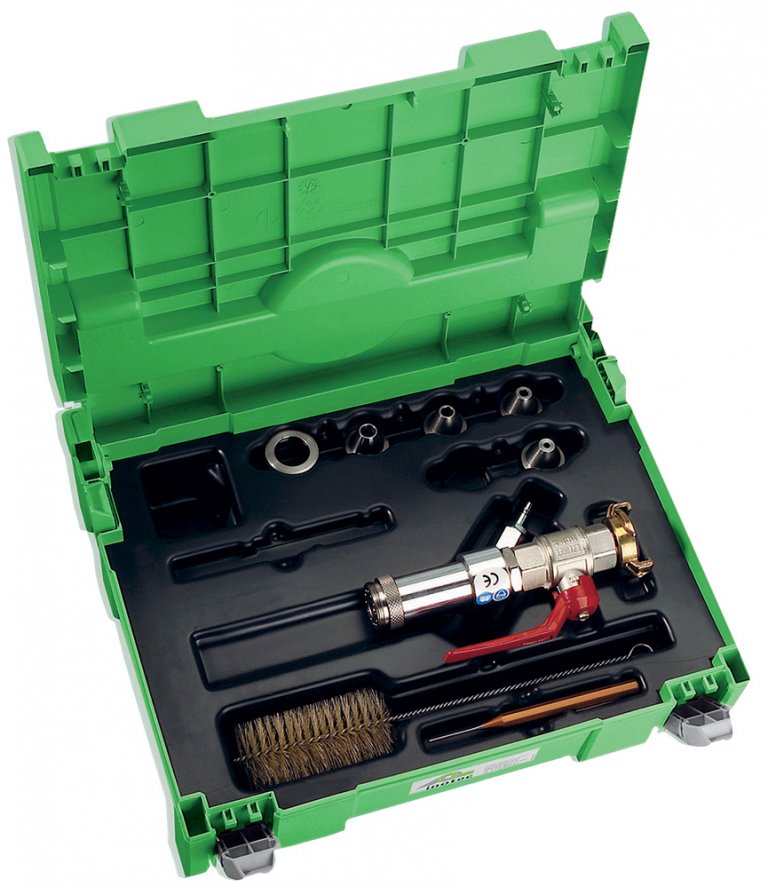

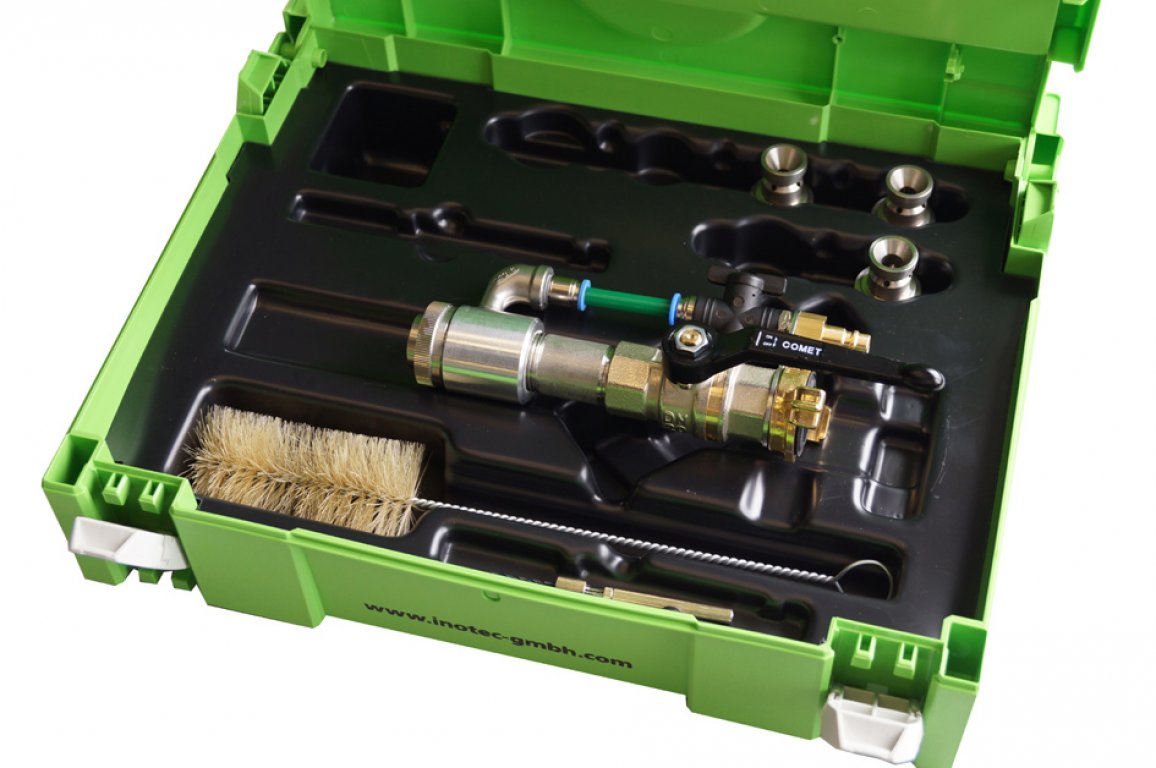

Spray pipe set
Short, lightweight spray pipe with GEKA coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (from an air flow rate of 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.
- For grit sizes up to 3 mm
Scope of delivery:
Spray pipe set, including 4 / 5 / 6 / 8 / 10 / 13 mm nozzles, nozzle bit, cleaning brush, in a systainer

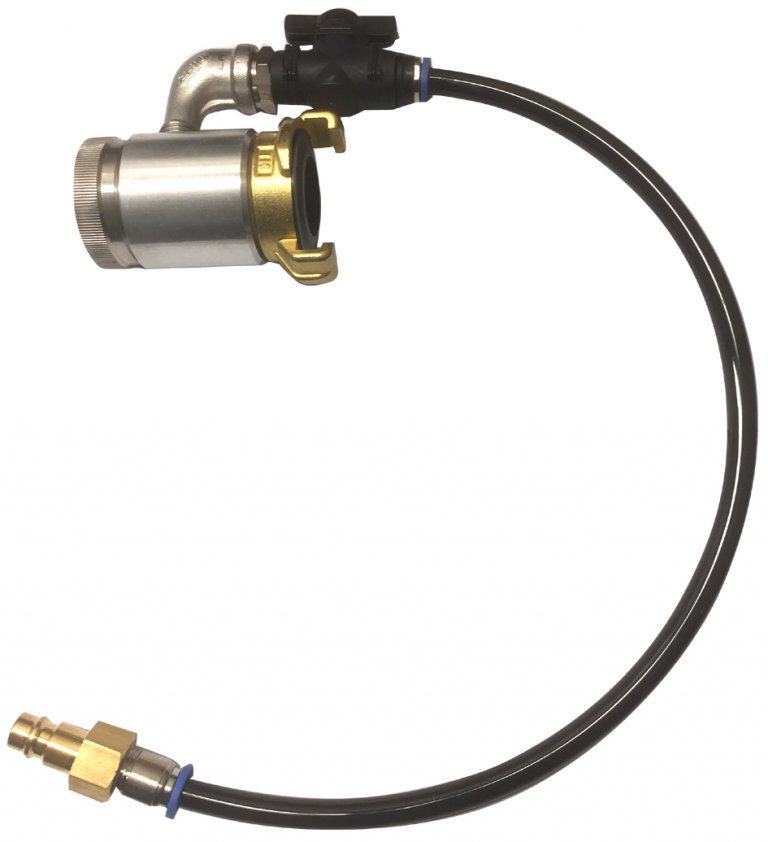

Spray pipe short in a set with GEKA coupling
Short, lightweight spray pipe for spraying pasty materials. For grit sizes up to 3 mm. The nozzle geometry creates a compressor with an air output of at least 250 l / min. needed. The air quantity can be regulated using the integrated mini ball valve.
Lieferumfang:
Spray pipe small in a set including 4,5 / 6,5 / 8,5 / 10,5 mm, nozzles, nozzle bit, cleaning brush, in a systainer

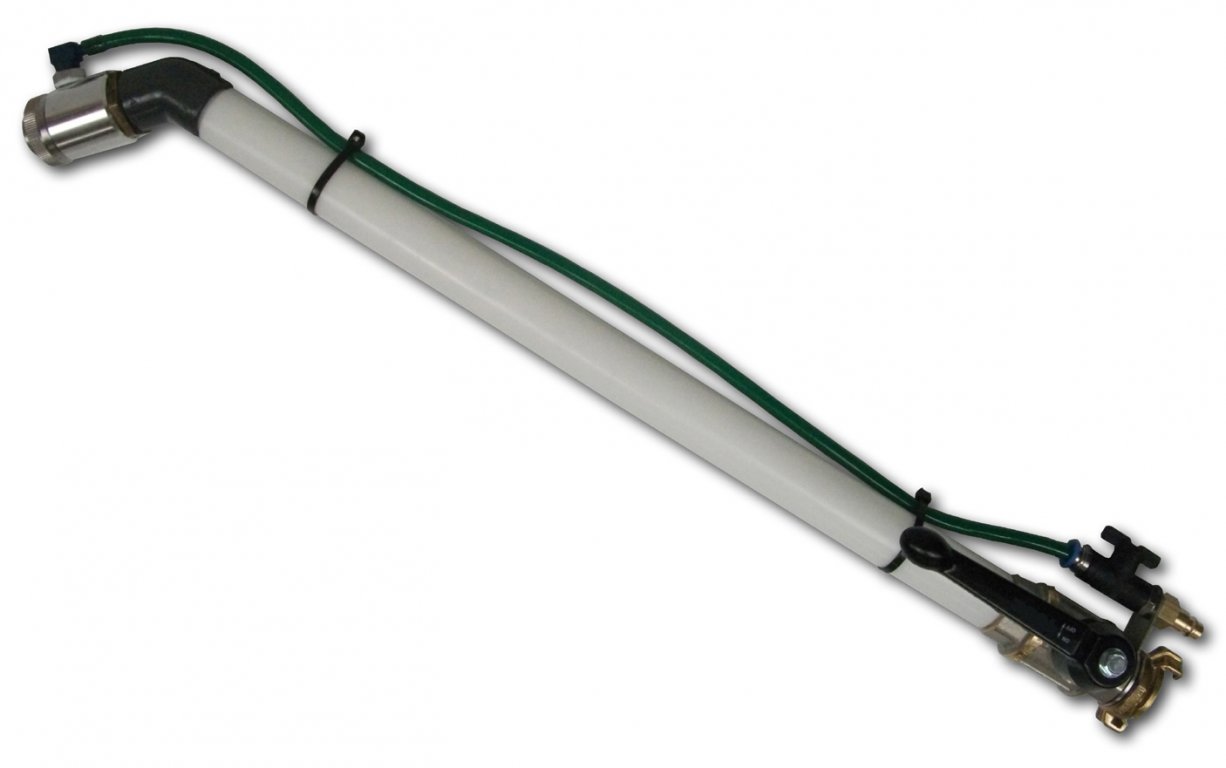

Angled spray head with GEKA coupling
- E.g. for spraying bitumen, etc.
- Length: 65 cm
- At an angle of 45°
Scope of delivery:
Spray head including 8 mm nozzle

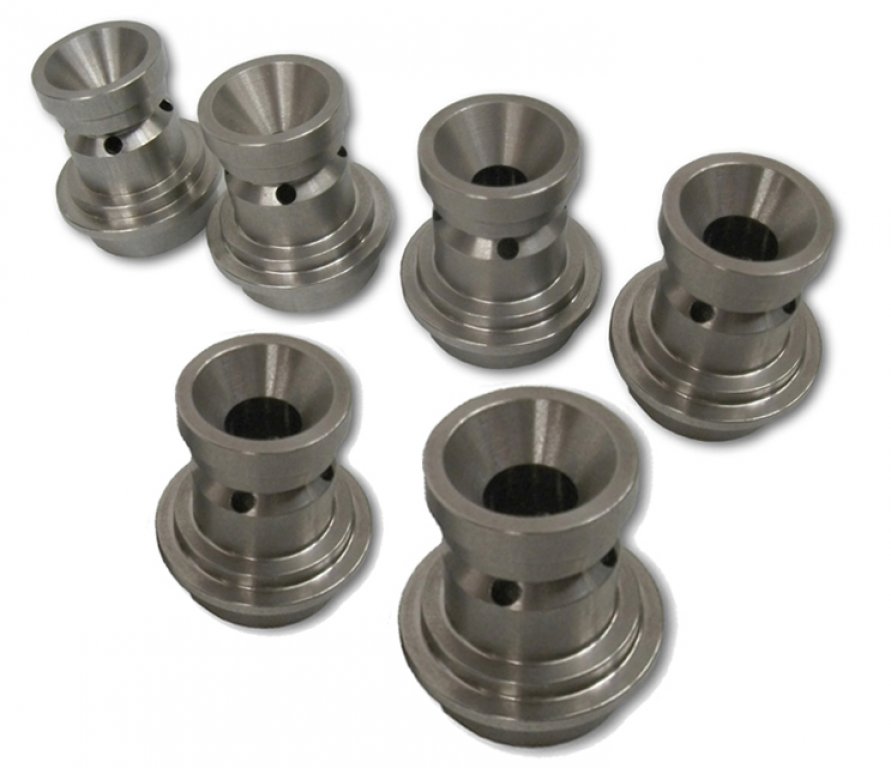

Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel

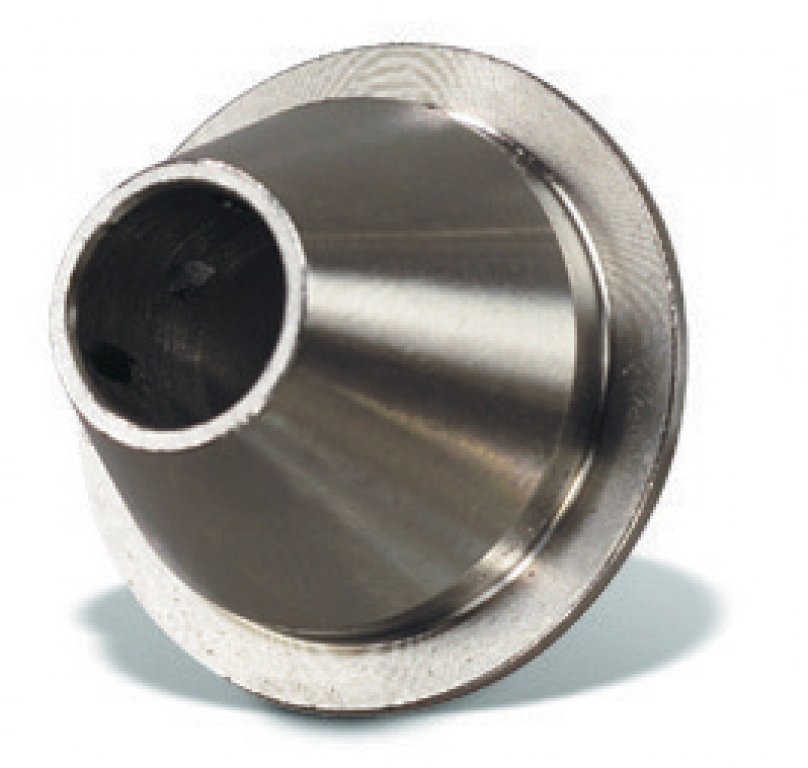

Nozzles for spray pipe short in a set ( 10012707)
- Made of stainless steel

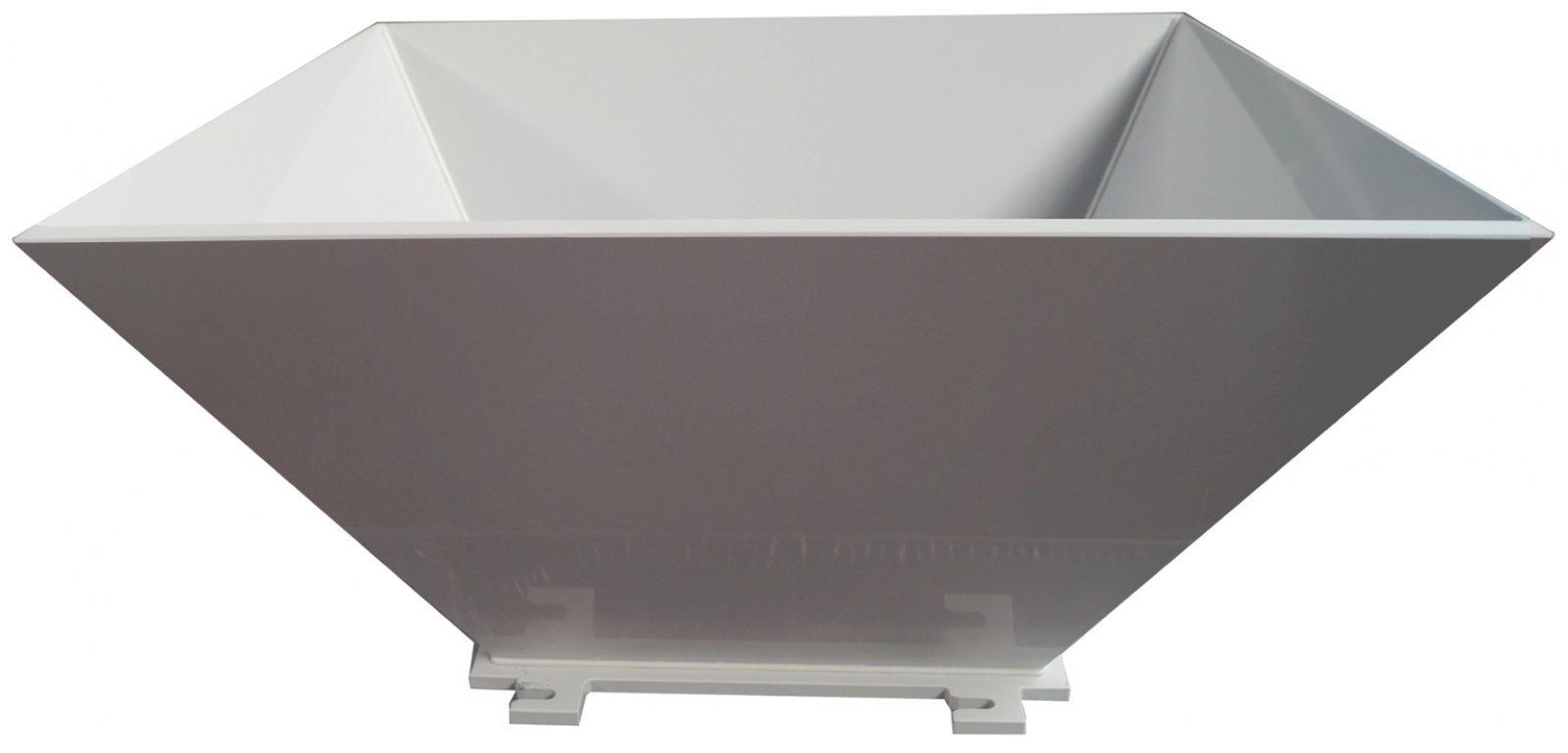

Plastic hopper
Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.

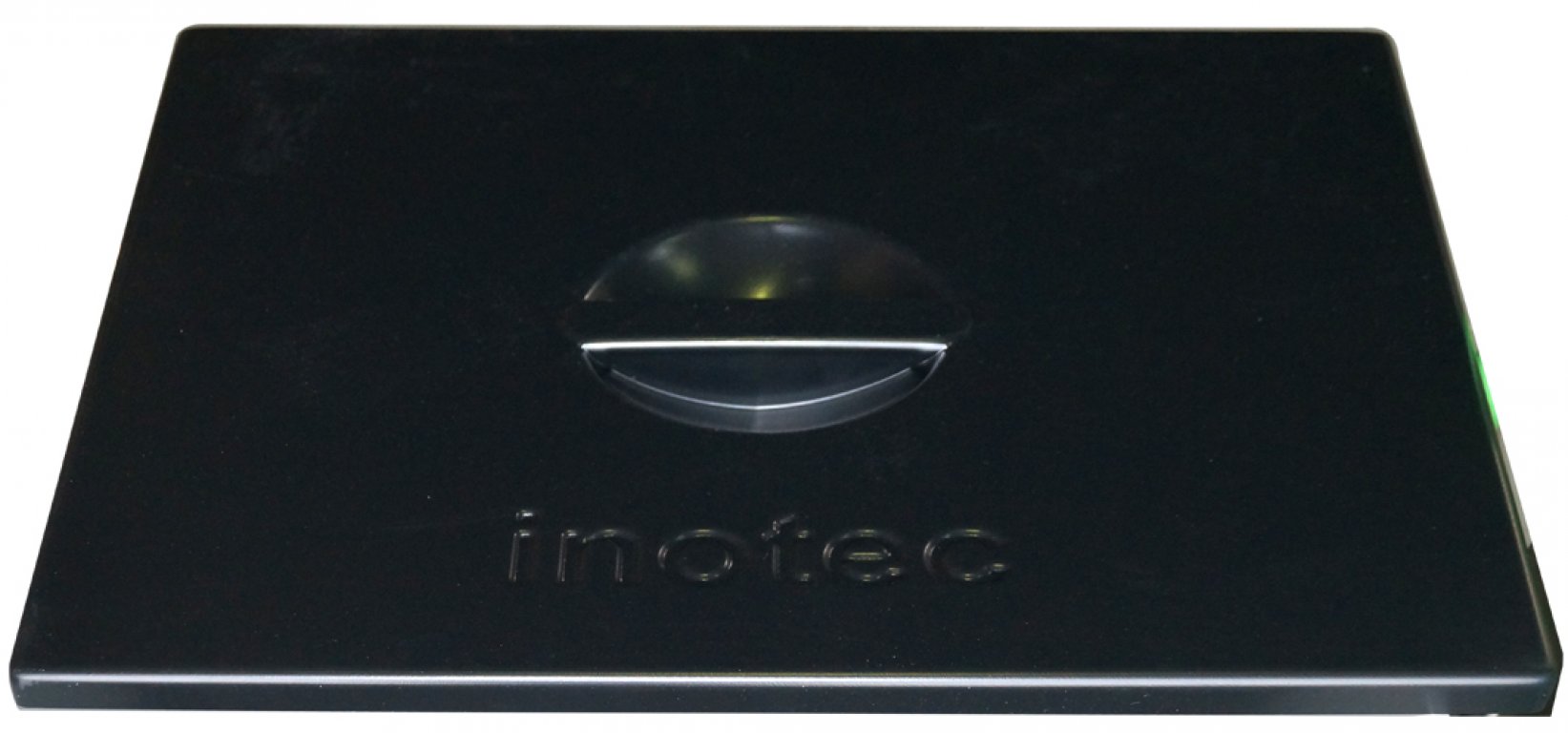

Cover for plastic hopper
- For protecting the content of the hopper against impurities
- Made from black plastic

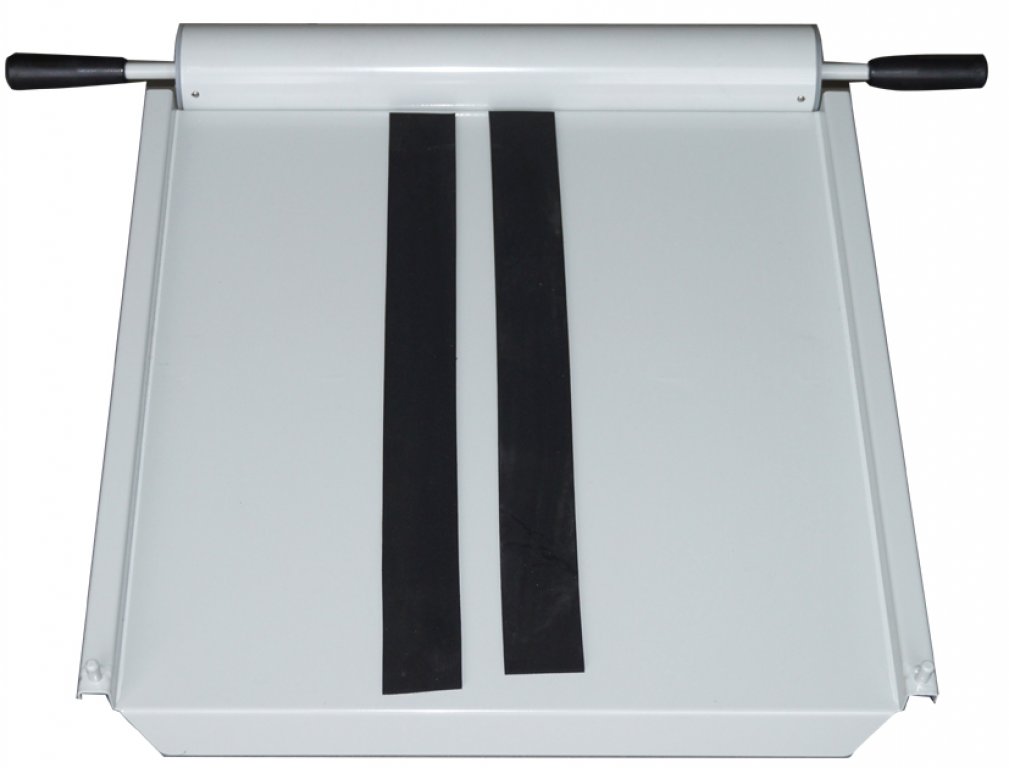

Bag mangle
- For emptying plastic bags with paste-like materials

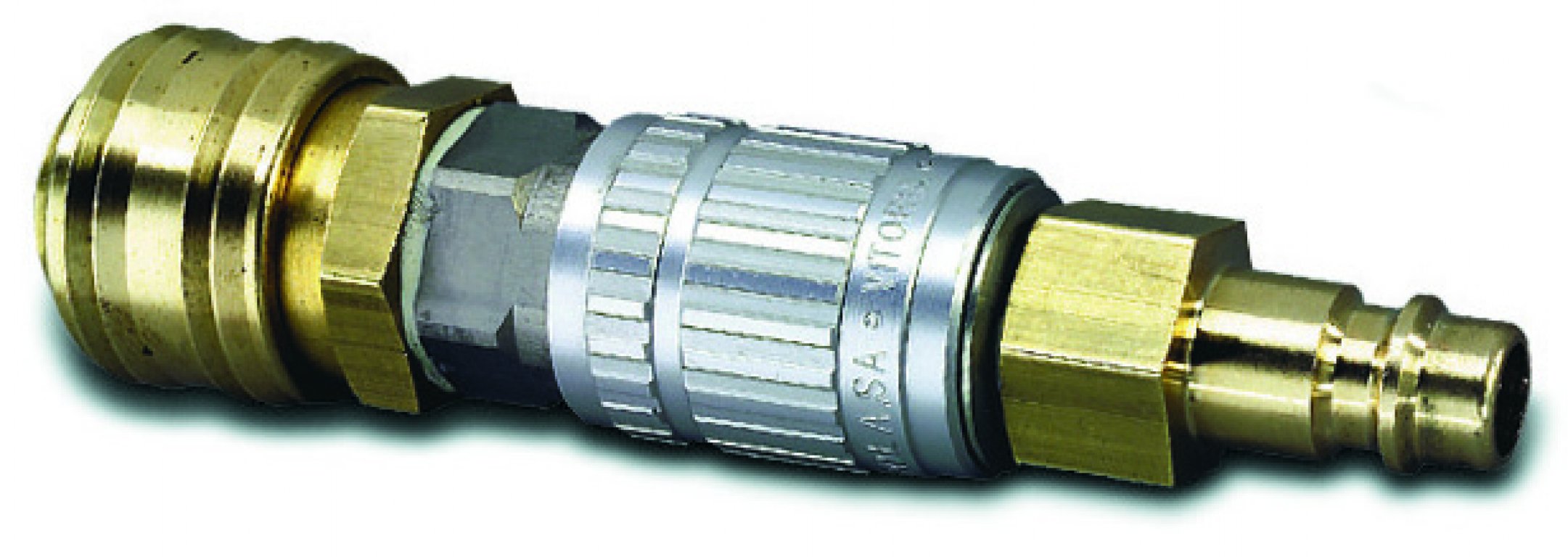

Air quantity controller with EWO couplings
- For precisely adjusting the air quantity when spraying.
- Is connected between the air hose and spraying device.

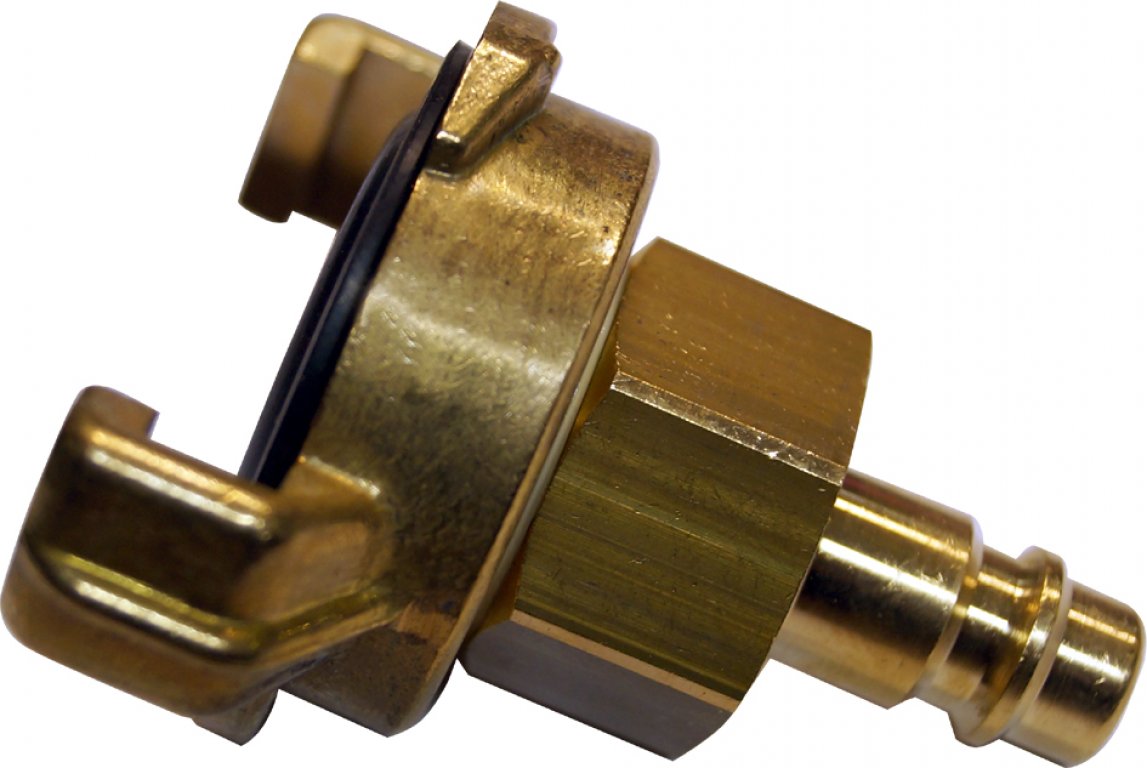

Connecting coupling for compressors
- EWO V-piece on GEKA

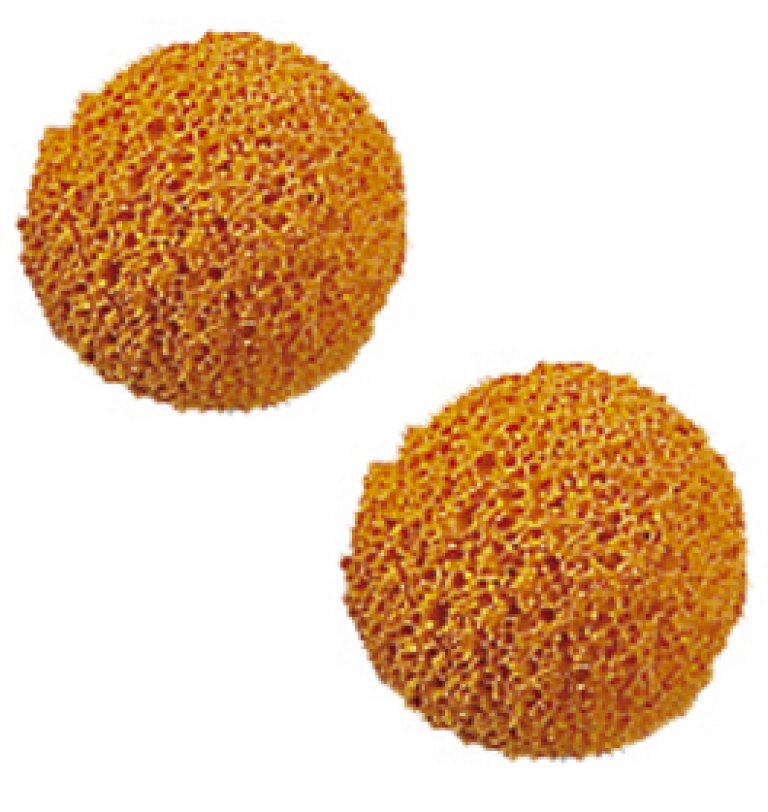

Sponge balls
- For cleaning material / mortar hoses

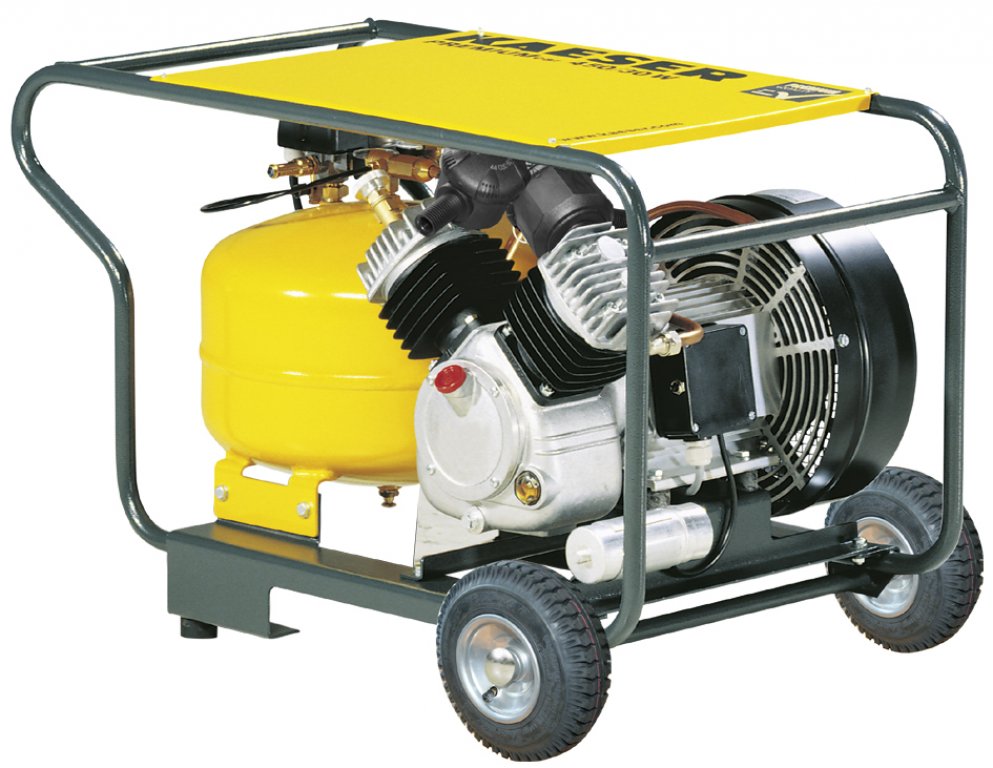

KAESER 230 V Compressor Premium Car 450/30W
The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.
Technical data:
| Operating pressure: | 10 bar | |
| Suction capacity: | 450 l/min | |
| Output: | 2,2 kW | |
| Dimensions (L x W x H): | 870 x 560 x 590 mm | |
| Weight: | 86 kg |

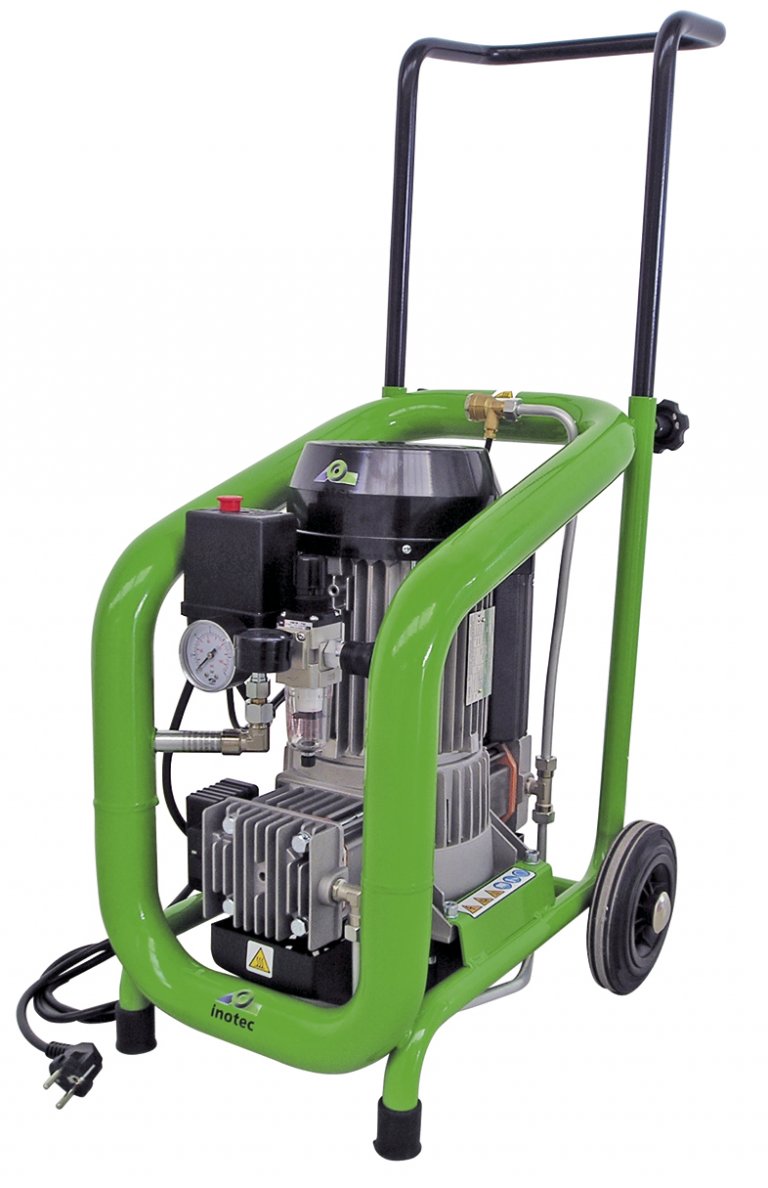

230 V INOTEC Compact 330 compressor
The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.
| Technical data: | |
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | 32 kg |

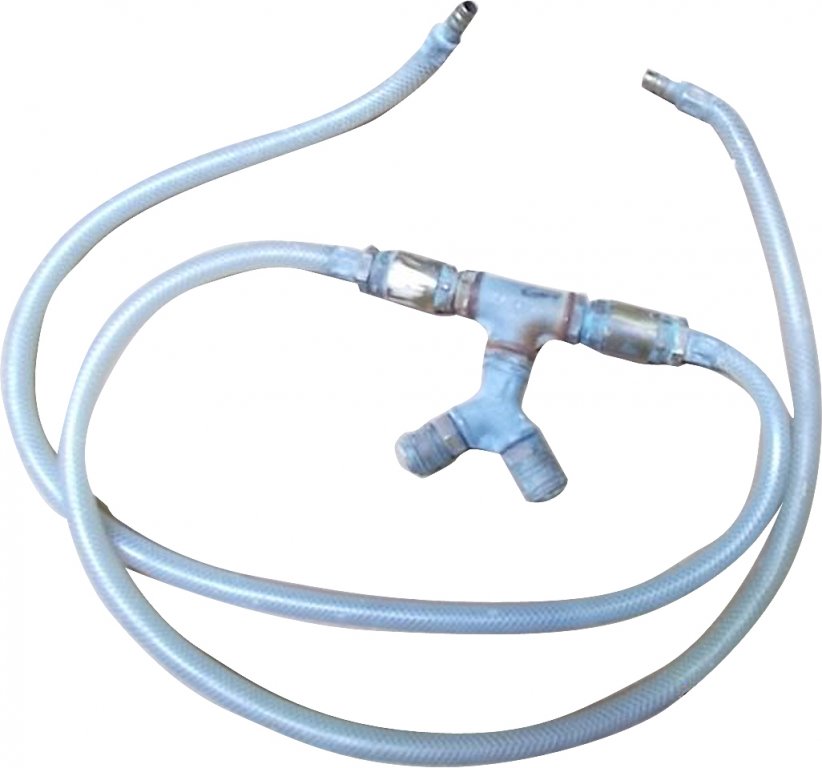

Connection unit for 2 INOTEC Compact 330 compressors
consisting of check valve and EWO coupling
- 2 x V parts
- 1 x M part

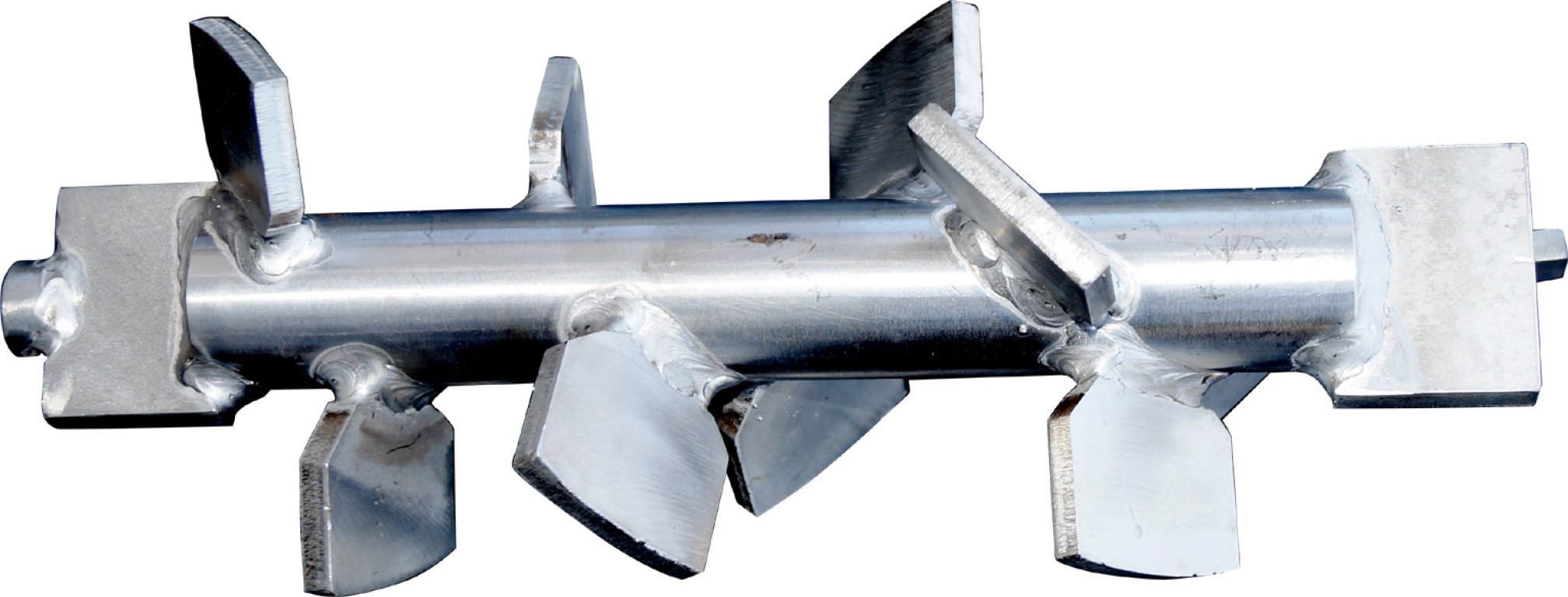

Pump shaft for inoBEAM F12 / F30

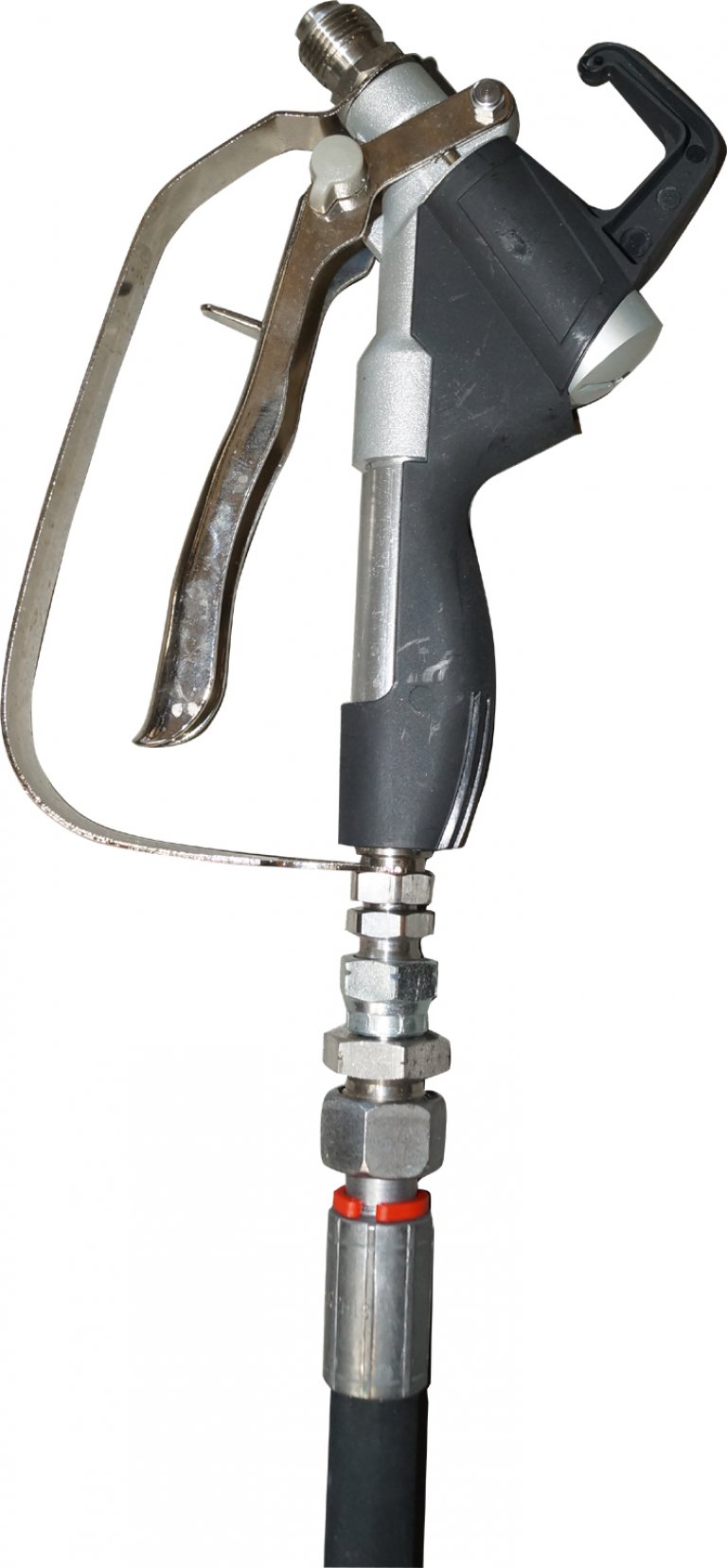

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP
- Connection 3/8” male, including swivel / Maximum pressure: 250 bar
Optional (not included in the scope of delivery):
- RAC X nozzle holder (for F12 HP, F30 HP, F70 HP)
- HDA nozzle 439 (for F12 HP)
- HDA nozzle 543 (for F30 HP)
- HDA nozzle 655 (for F70 HP)
- Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 1“ AG (for F70 HP)

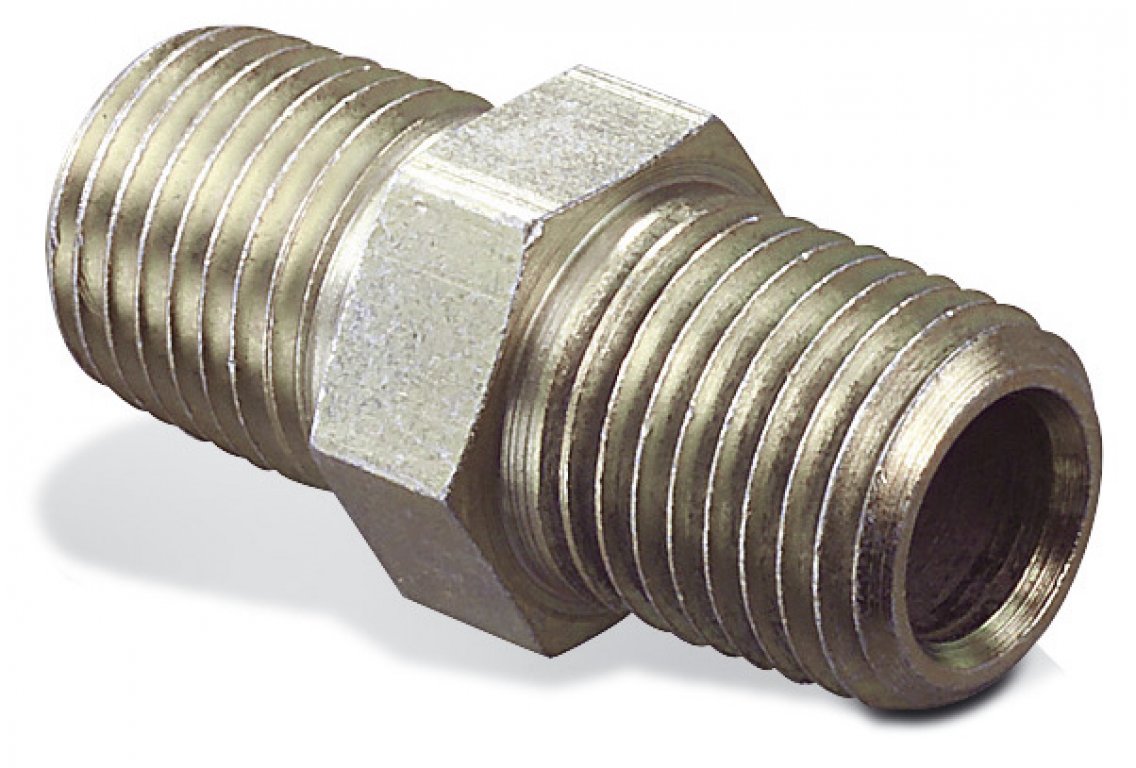

Double nipple
- Hose connection – this connection is rigid; does not rotate
