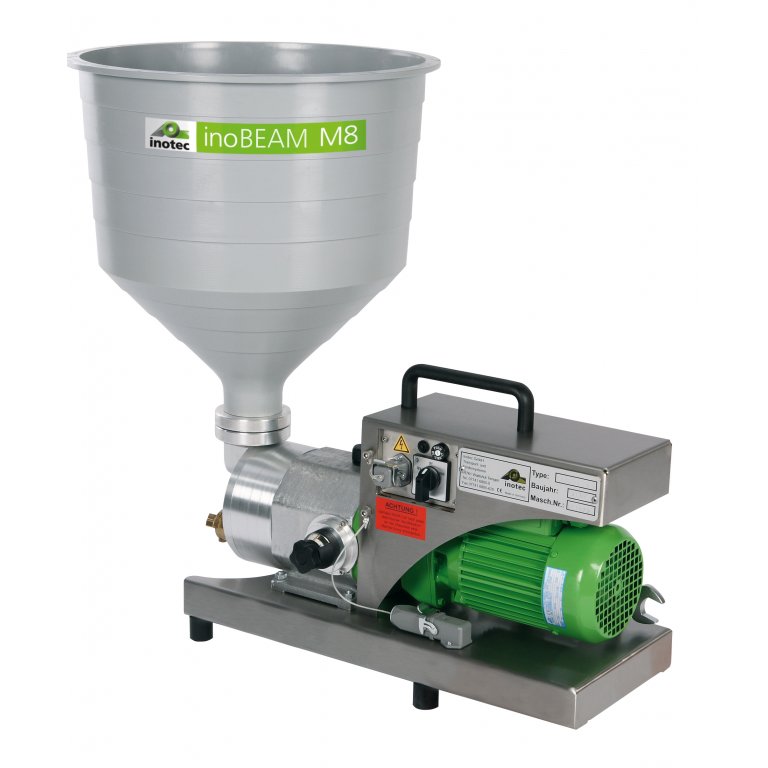

The handy 230 V* peristaltic delivery pump for liquid and paste-like materials

Benefits at a glance

  • Lightweight, small and handy
  • For liquid and paste-like materials
  • Extremely efficient peristaltic pump technology
  • Simple operation
  • Very fast cleaning and maintenance
  • Continuously variable quantity control
  • Suitable for dry running

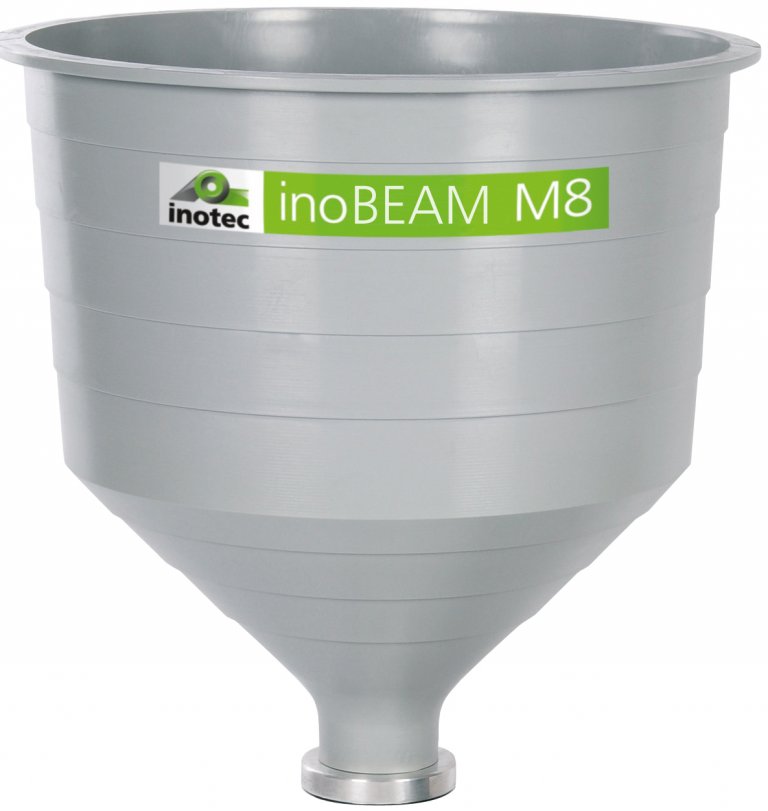

  • Detachable plastic material hopper
  • Forward and reverse running
  • Can be combined with large containers (drum)

inoBEAM_M8_Titel

The inoBEAM M8 delivery pump handles materials based on the walk principle. A flexible rubber disc pushes the material to be conveyed through the pump housing and into the material hose. This delivers a considerable benefit: less frictional heat is generated and the material is conveyed very efficiently.
The very fast cleaning and simple maintenance processes keep operating costs low and save time.

_______________

* The machine is also available in 110 V


This video shows the assembly and operation of the inoBEAM M8 delivery pump.
It does not replace reading the original operating instructions.



inoBEAM M8

Video

Service details

Services
Operating pressurebarup to 15
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW0,55
Empty weightkg28
Delivery rate (depending on the material)l/minmax. 0 - 8
Conveying distance (depending on the material)mmax. 30
Pressure height (depending on the material)mmax. 20
Grain sizemmmax. 3
Material containerl30
Machine techniqueDelivery pumps
Dimensions (L x W x H)mm600 x 230 x 750
Weightkgapprox. 28
inoBEAM
inoBEAM M8
Acoustic renovation paint
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories)
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Bitumen
Cement pastes, suspensions
Cement plasters
Concrete bonder
Decorative fine coats
ETICS glue, mineral
ETICS glue, paste-like
Fibour plaster
Fine acoustic finishing coats
Fire protection mortar
Floor leveling compound
Floor spattling compounds
Lime cement plasters
Lime plasters
Lime smoothers
Liquid woodchip
Mineral textured plasters
Multi-layer acoustic spray plasters
Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F12 (see accessories)
Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F30 (see accessories)
Paste-like textured plasters
PCC- and SPCC-mortar / filler
Porous concrete coats
Rendering base
Renovating plaster systems
Reprofiling mortar
SPCC Spatula
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”-F12 and “D”- & “R”-F30
Spray-on spattling compounds

Basic module
Item no. 10000080-008
Scope of delivery
inoBEAM M8:

  • Rack made from stainless steel
  • Plastic material hopper
  • Gear motor
  • Peristaltic pump unit
  • Electrical control system with
  • 3 m connecting cable
  • Operating instructions

inoBEAM M8 Bitumen Set
Item no. 10042326
Scope of delivery
As with the basic module
(item no. 10000080-008)
Plus:

  • 10 m combined material hose with a diameter of 1”
  • Angled spray head with
  • GEKA coupling incl. 8 mm nozzle
  • Remote control cable, 16 m
  • Cover for material hopper

inoBEAM M8 Plaster Set
Item no. 10040770
Scope of delivery
As with the basic module
(item no. 10000080-008)
Plus:

  • 10 m combined material hose with a diameter of 1”
  • Spray pipe with nozzles (4, 5, 6, 8, 10, 13 mm)
  • Remote control cable, 16 m
  • Cover for material hopper
inoBEAM M8

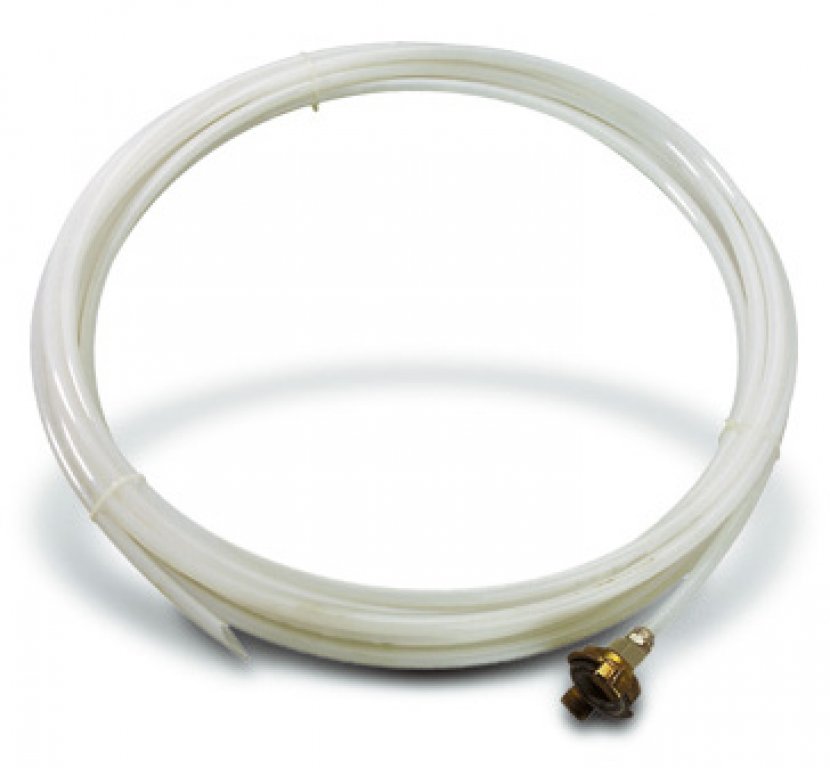

Ultralight hose

Ultralight hose

Ultralight hose with GEKA coupling (Ø 25 mm / 10 m) (Article No. 10043875)

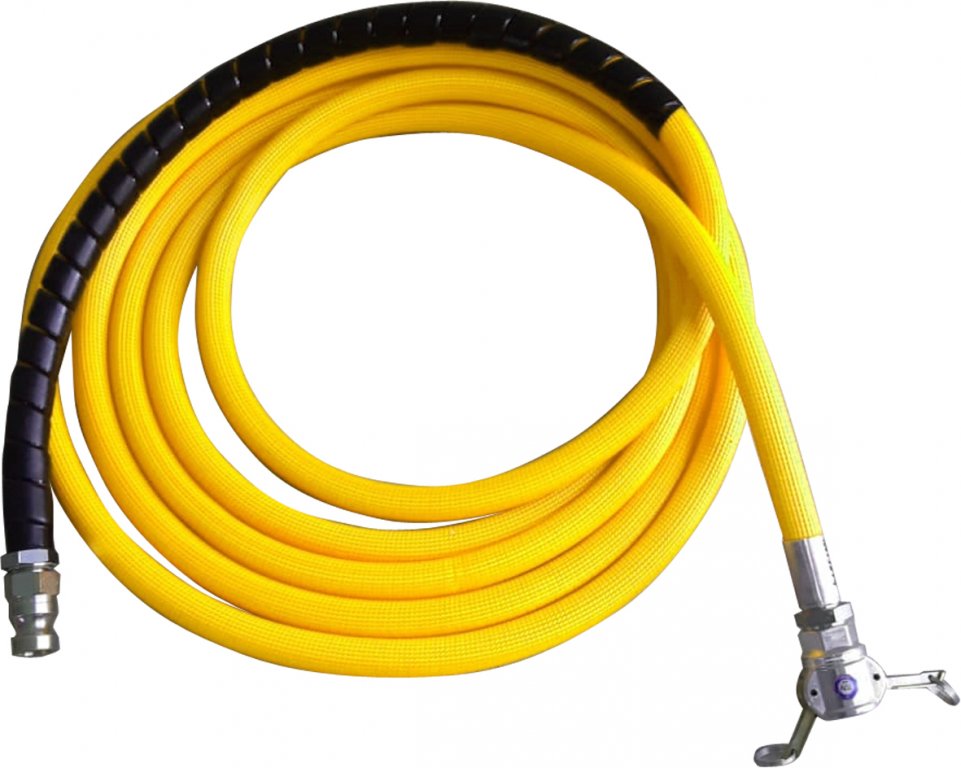

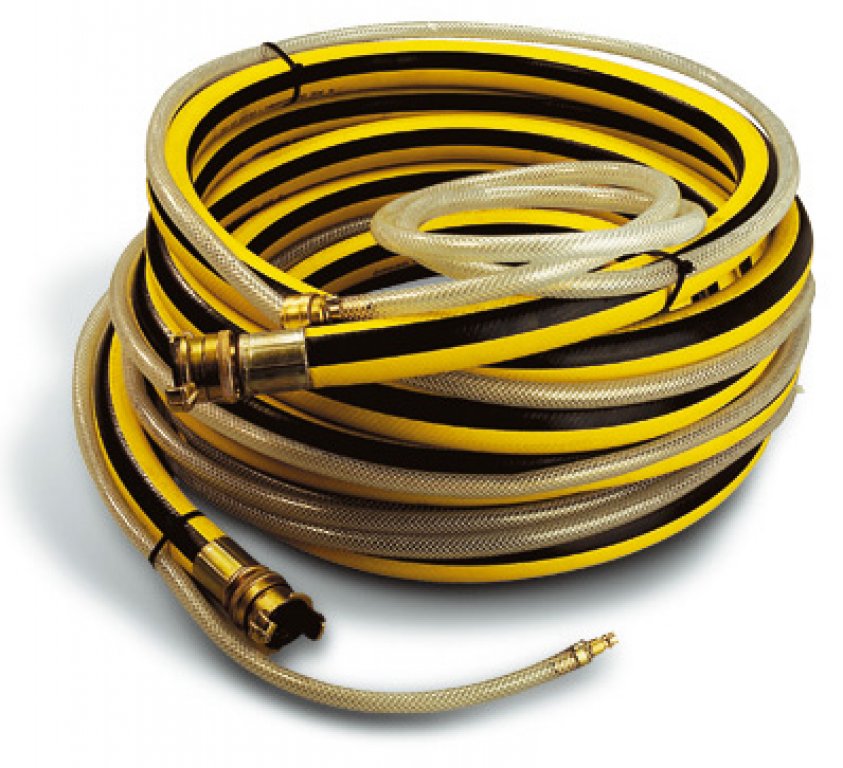

Combined material hose

Combined material hose

  • For applying, with integrated air hose
  • Colour: black / yellow
  • Operating pressure: 20 bar
  • With GEKA couplings, lockable

Combined material hose - Ø 1" - 10 m (Article No. 10008344-003)
Combined material hose - Ø 1“ - 5 m (Article No. 10008344-007)
Combined material hose - Ø 1“ - 15 m (Article No. 10008344-005)
Combined material hose - Ø 3/4“ - 10 m (Article No. 10022140)
Material hose

Material hose

  • Colour: black / yellow
  • Operating pressure: 15 bar
  • With GEKA coupling, lockable

Material hose - Ø 1/2" - 10 m (Article No. 10008345-005)
Material hose - Ø 1“ - 10 m (Article No. 10008345-001)

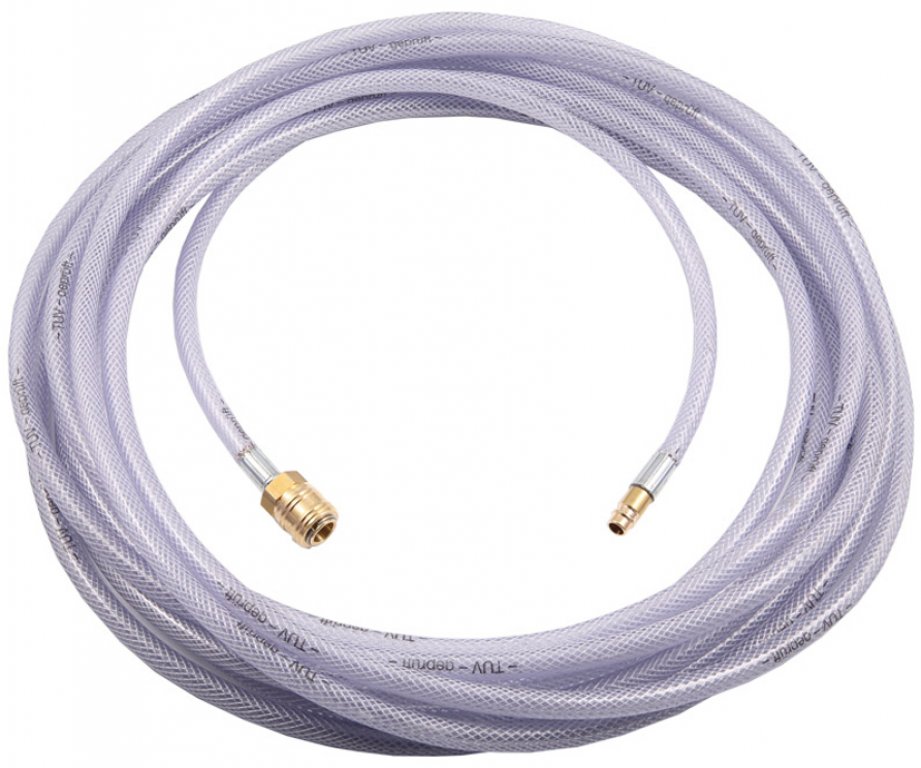

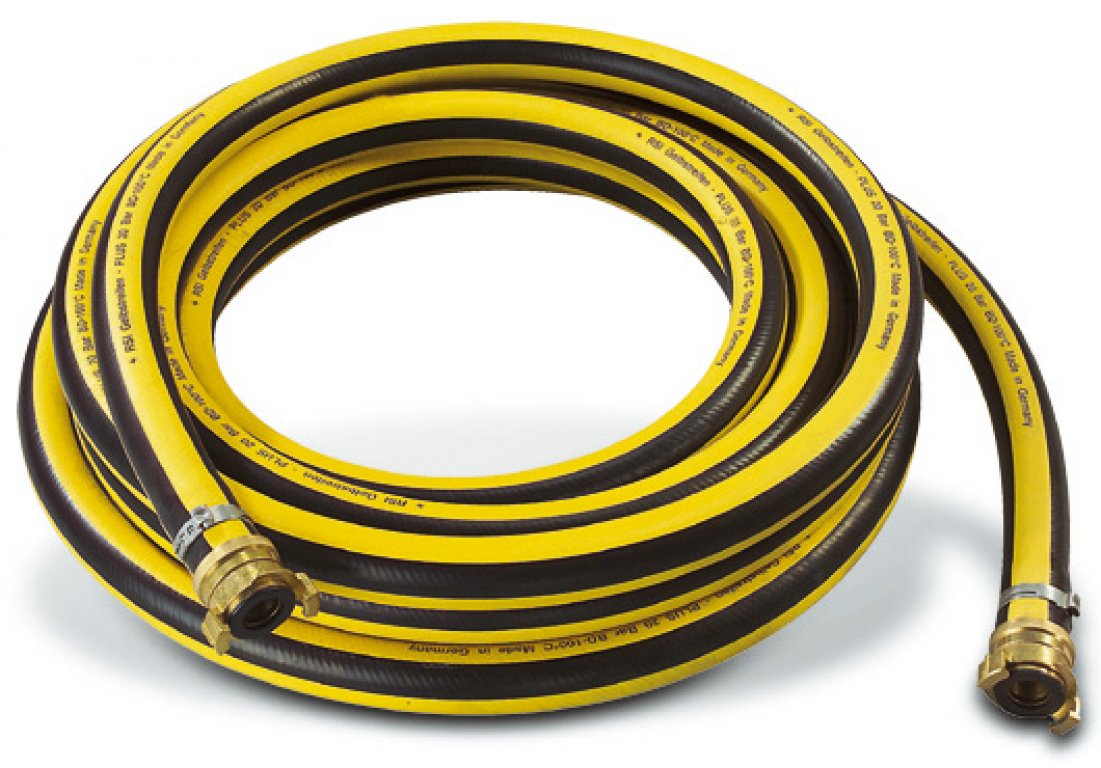

Multi-purpose hose

Multi-purpose hose

  • For universal use, e.g. air, water
  • GEKA couplings crimped with sleeves on both sides
Technical data:
Max. operating pressure: max. 15 bar
Temperature range: -20 up to +90°C

Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)
Flushing hose

Flushing hose

  • For clearing blockages in mortar hoses

Flushing hose - Length 10 m (Article No. 10024385)
230 V / 3 x 2.5 mm² extension cable

230 V / 3 x 2.5 mm² extension cable

  • 16 A Schuko plug and coupling

230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)

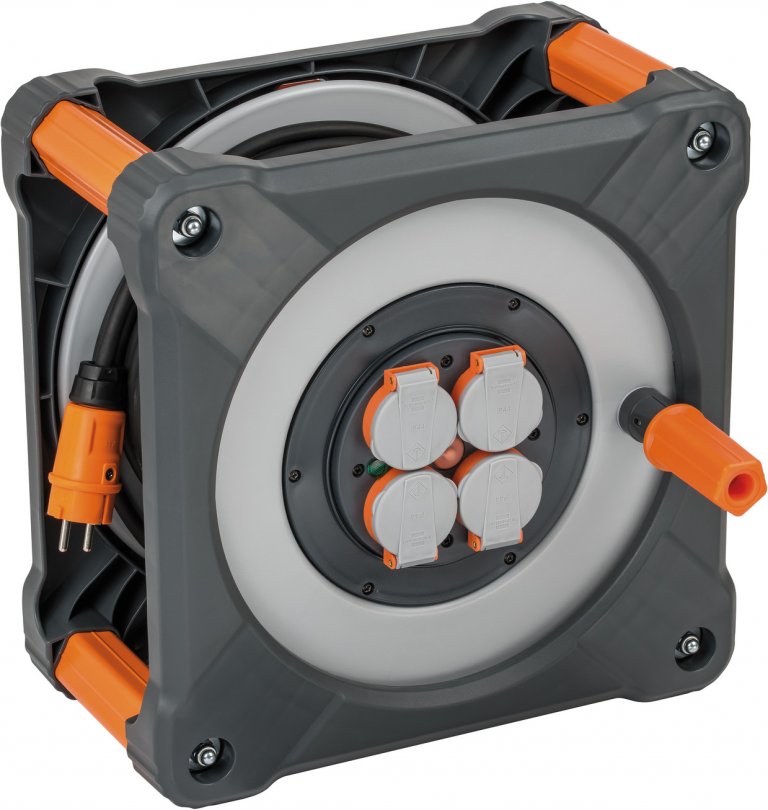

3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m

3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m

  • Plastic cable reel with 33 m H07BQ-F3G2,5 cable
  • Robust, impact-resistant design, all-round roll-over protection
  • 4 protective contact sockets (splash-proof, with self-closing lids)
  • Protection class: IP44

3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m (Article No. 10015300)

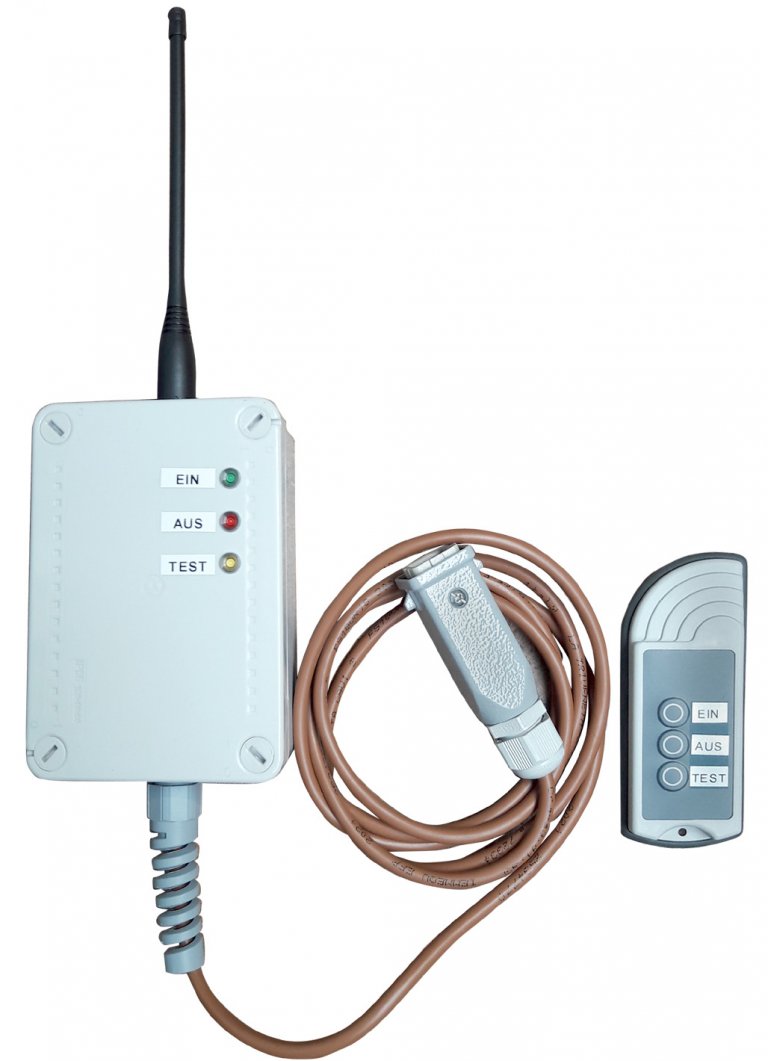

Wireless remote control

Wireless remote control

  • Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
  • Only for devices with a control voltage of 24 V / 42 V
  • Function: ON / OFF/ TEST

Wireless remote control (Article No. 10044303)

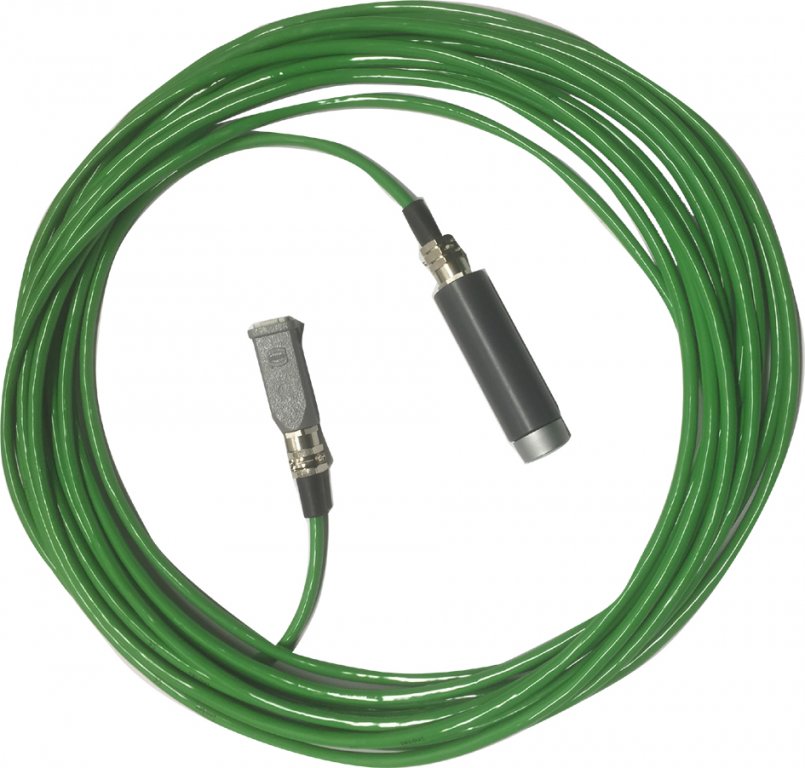

Remote control cable with remote control switch

Remote control cable with remote control switch

Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)

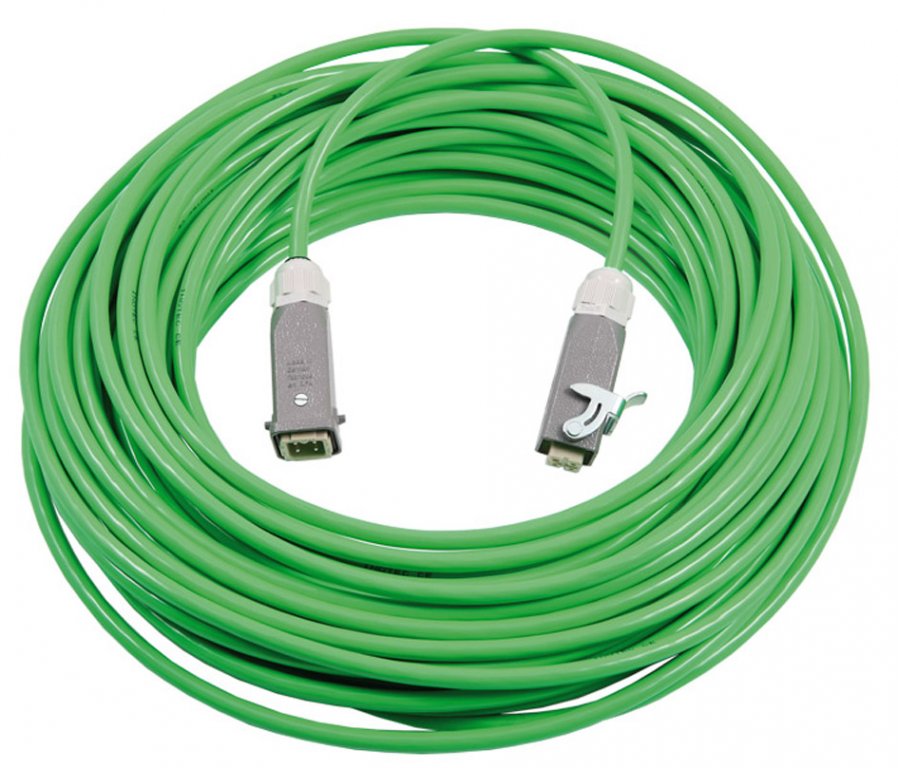

Remote control extension cable without remote control switch

Remote control extension cable without remote control switch

  • For remote control cable
  • For remote control switch
  • For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)

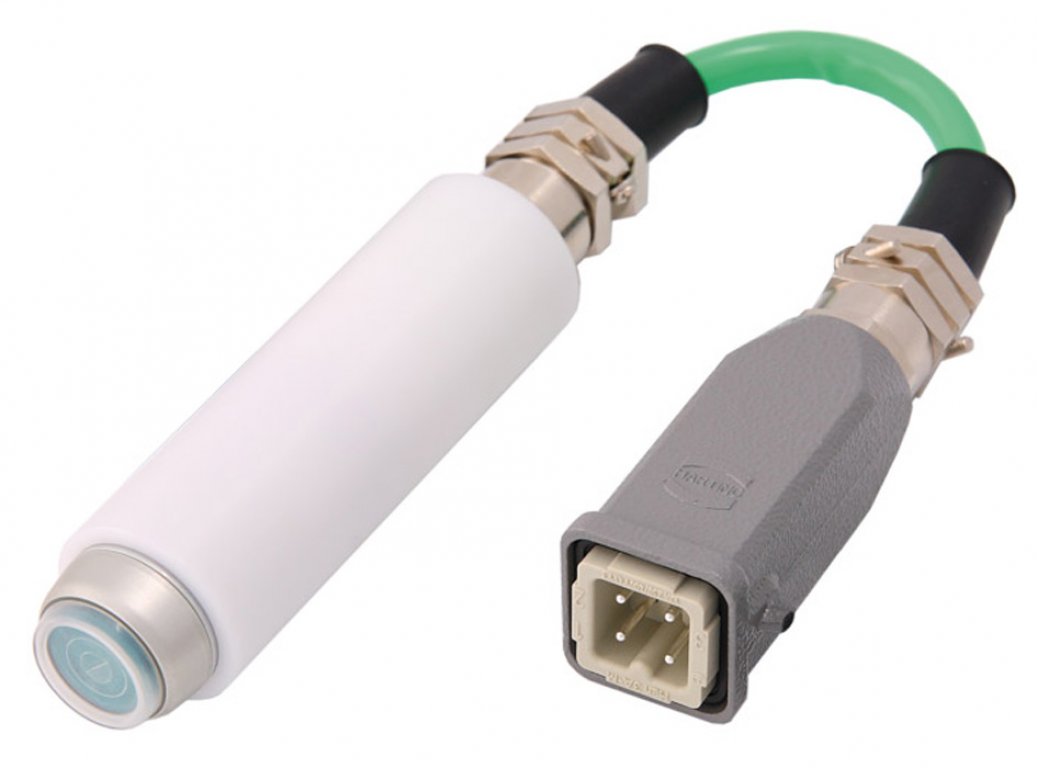

Remote control switch

Remote control switch

  • With 0.2 m cable, indicator light and 4-pin Harting plug

Remote control switch (Article No. 10015134)

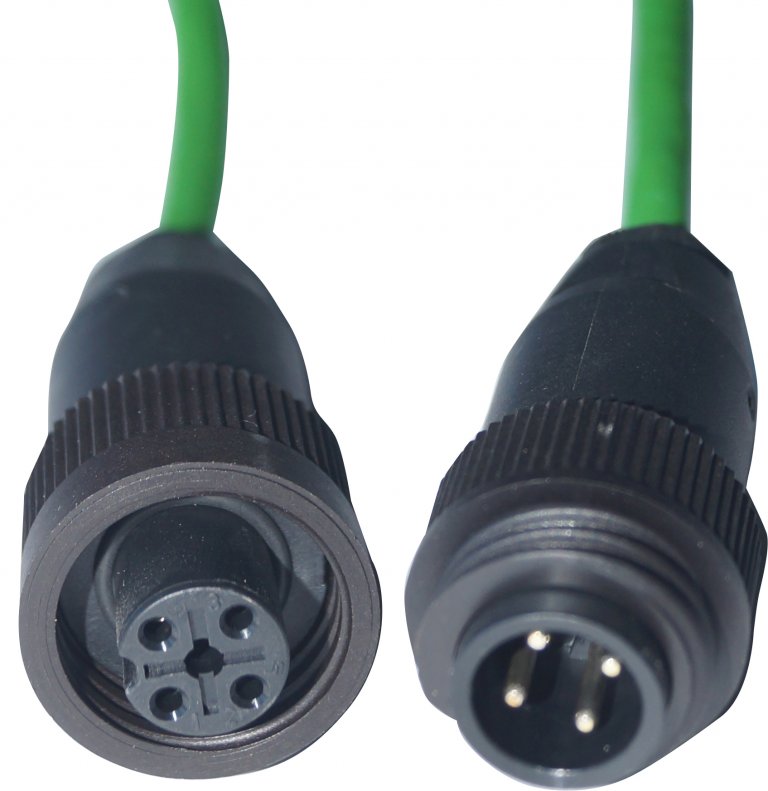

Adapter for remote control cable

Adapter for remote control cable

m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)

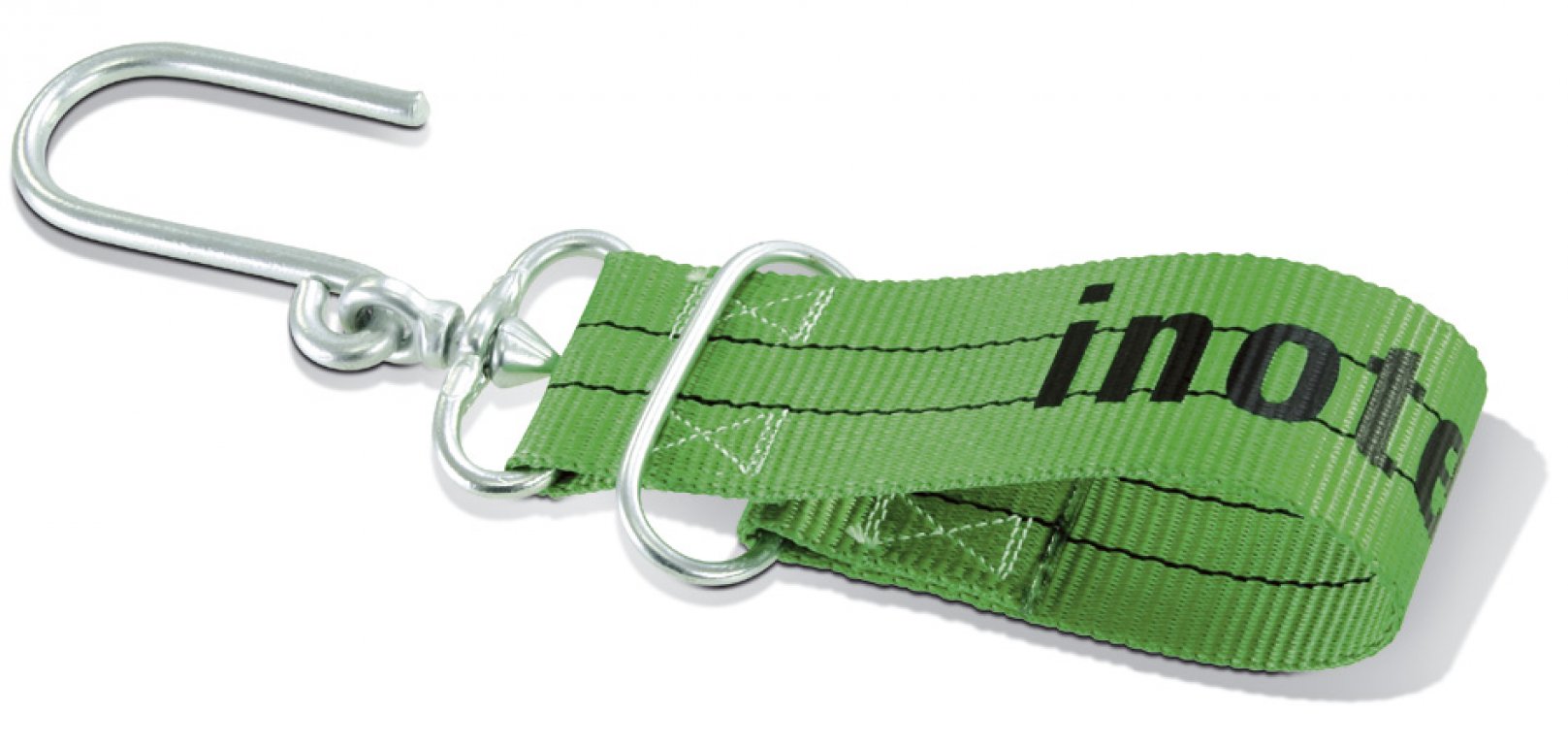

Hose holder

Hose holder

  • For rapidly fixing hoses to the scaffold

Hose holder (Article No. 10018503)

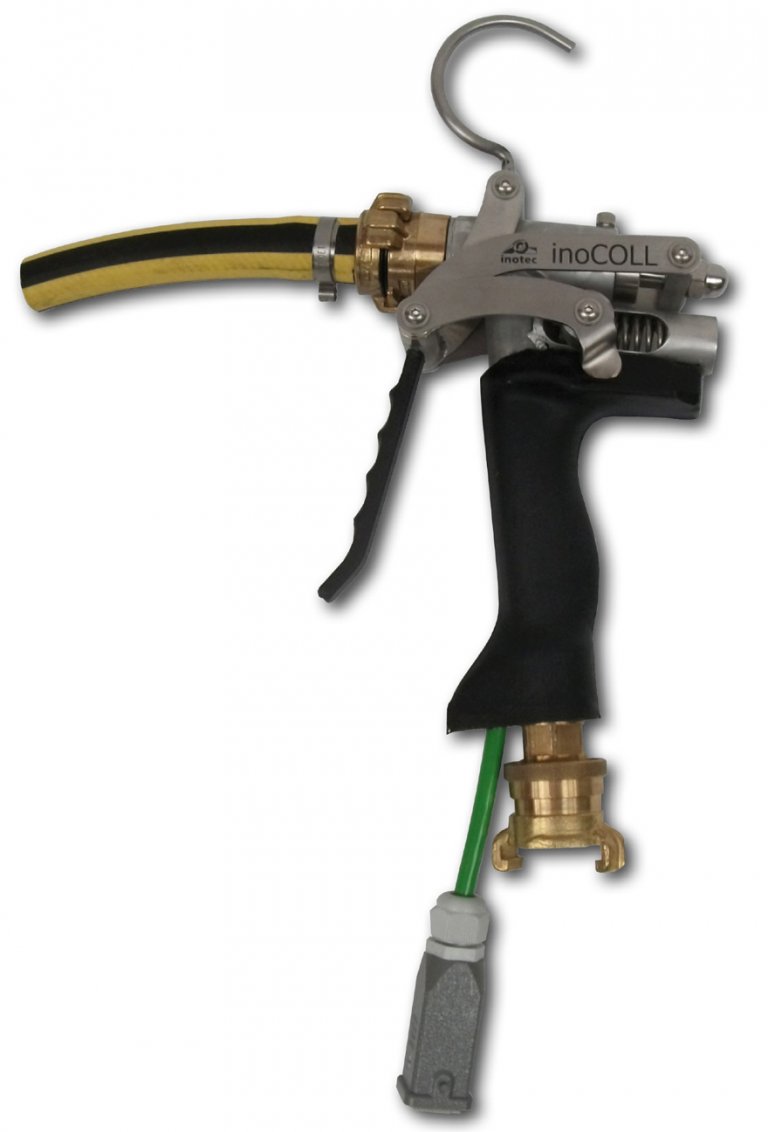

inoCOLL one-handed gun with GEKA coupling

inoCOLL one-handed gun with GEKA coupling

  • For bonding and basecoat mortars
  • For grit sizes up to 1.5 mm

inoCOLL one-handed gun with GEKA coupling (Article No. 10024143)

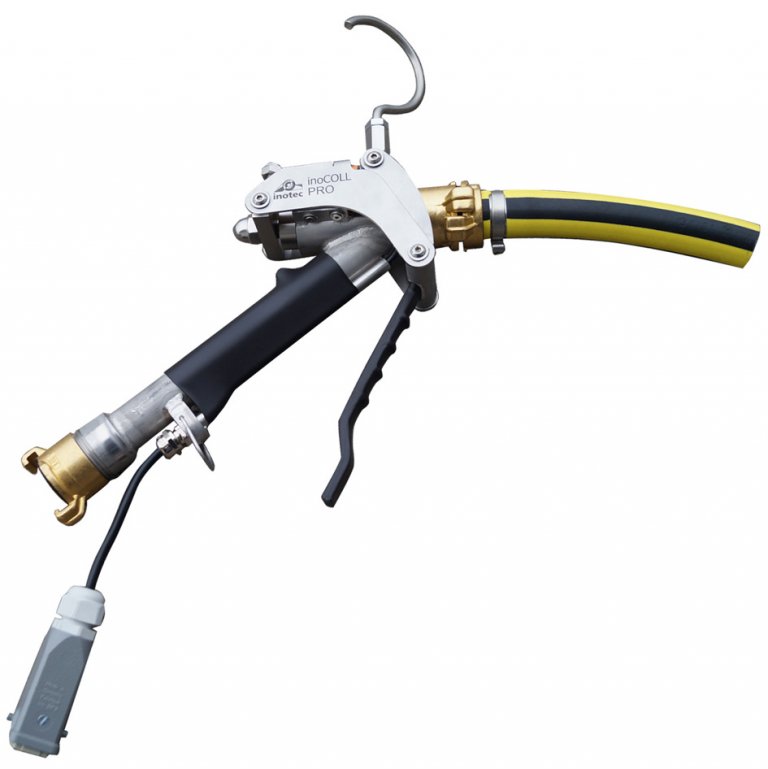

inoCOLL PRO one-handed gun with GEKA coupling

inoCOLL PRO one-handed gun with GEKA coupling

  • For bonding and basecoat mortars
  • For grit sizes up to 4.0 mm

inoCOLL PRO one-handed gun with GEKA coupling (Article No. 10041973)

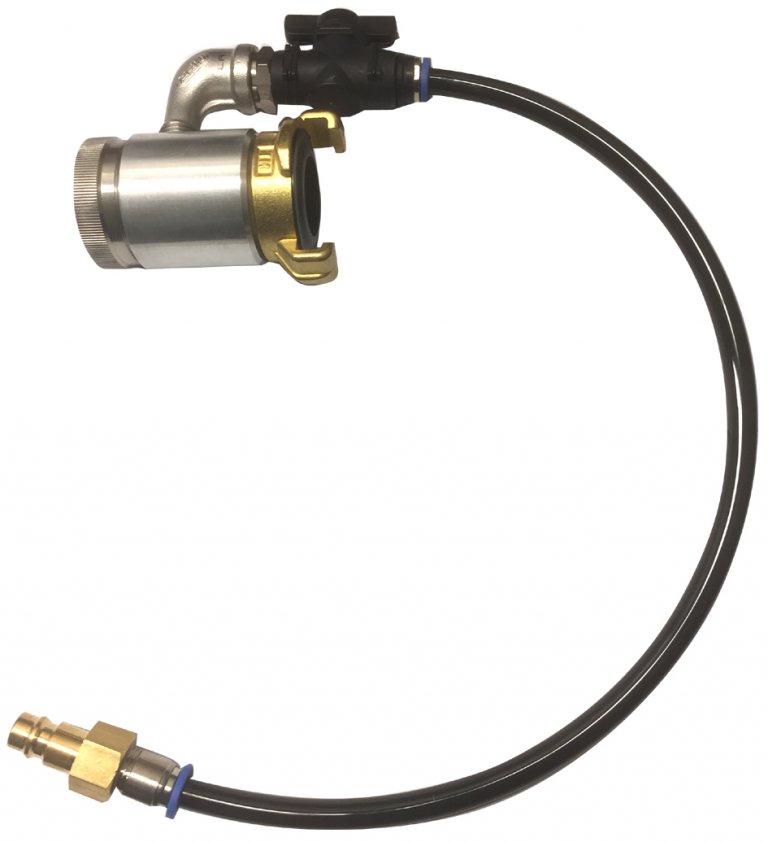

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

  • For spraying mineral and paste-like products
  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection (Article No. 10042332)

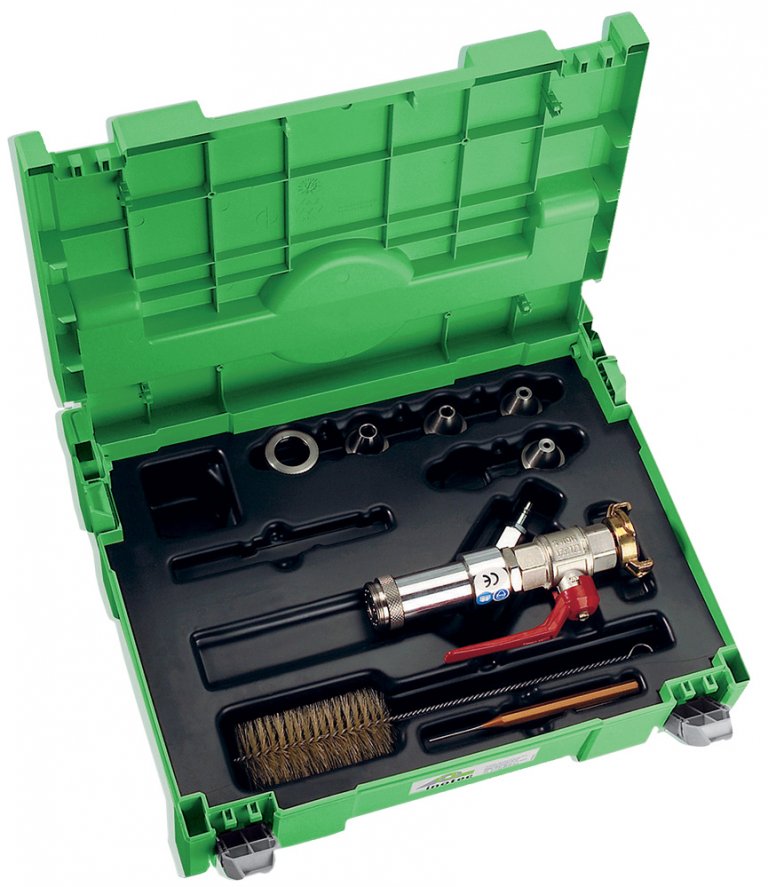

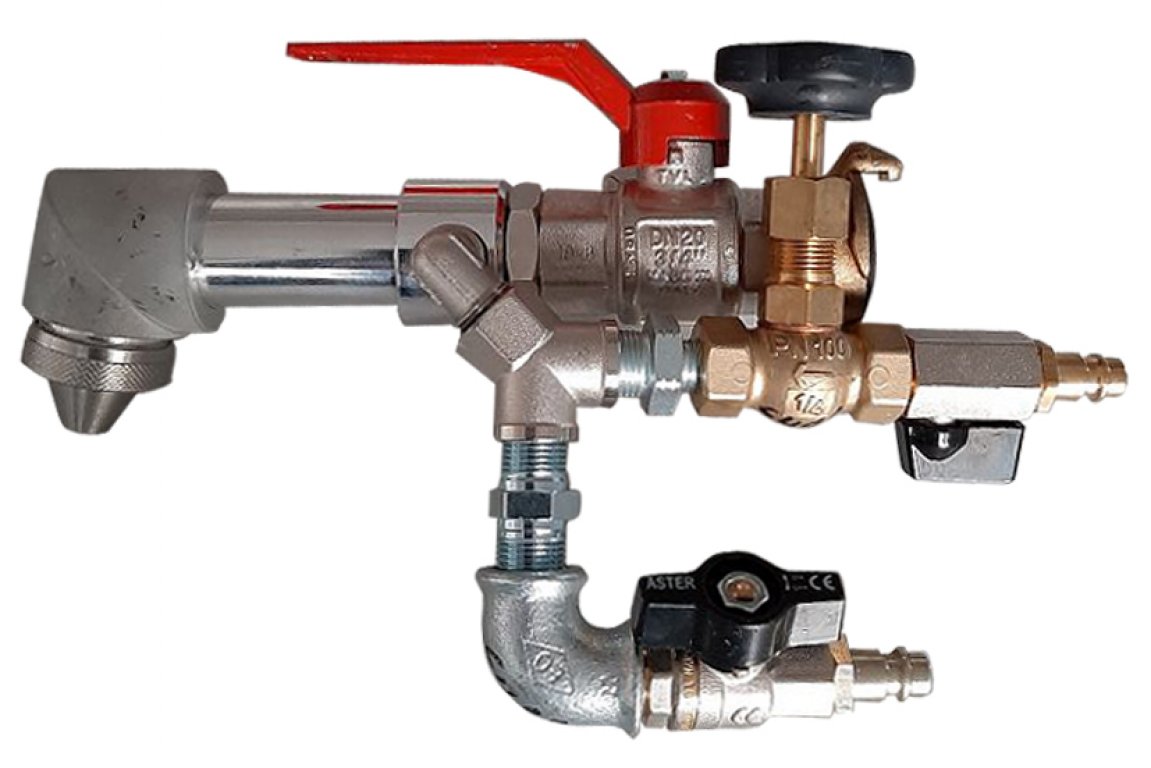

Spray pipe set

Spray pipe set

Short, lightweight spray pipe with GEKA coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (from an air flow rate of 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.

  • For grit sizes up to 3 mm

Scope of delivery:
Spray pipe set, including 4 / 5 / 6 / 8 / 10 / 13 mm nozzles, nozzle bit, cleaning brush, in a systainer

Spray pipe set (new design) (Article No. 10039886)
Spray pipe short in a set with GEKA coupling

Spray pipe short in a set with GEKA coupling

Short, lightweight spray pipe for spraying pasty materials. For grit sizes up to 3 mm. The nozzle geometry creates a compressor with an air output of at least 250 l / min. needed. The air quantity can be regulated using the integrated mini ball valve.
Lieferumfang:
Spray pipe small in a set including 4,5 / 6,5 / 8,5 / 10,5 mm, nozzles, nozzle bit, cleaning brush, in a systainer

Spray pipe short in a set with GEKA coupling (Article No. 10012707)

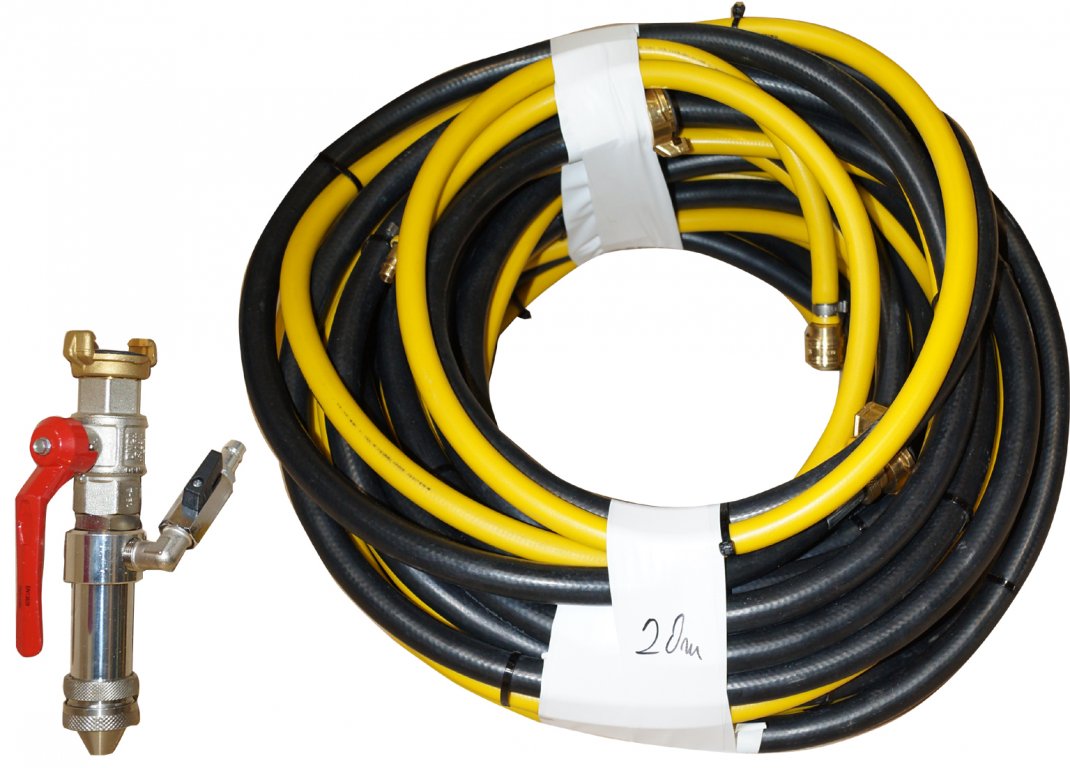

Paint spray set for inoBEAM M8

Paint spray set for inoBEAM M8

Scope of delivery:
20 m combination material hose 1/2” with GEKA coupling (lockable), Spray pipe short (10012700), slit nozzle (10024202), in Systainer

Paint spray set for inoBEAM M8 (Article No. 10044204)

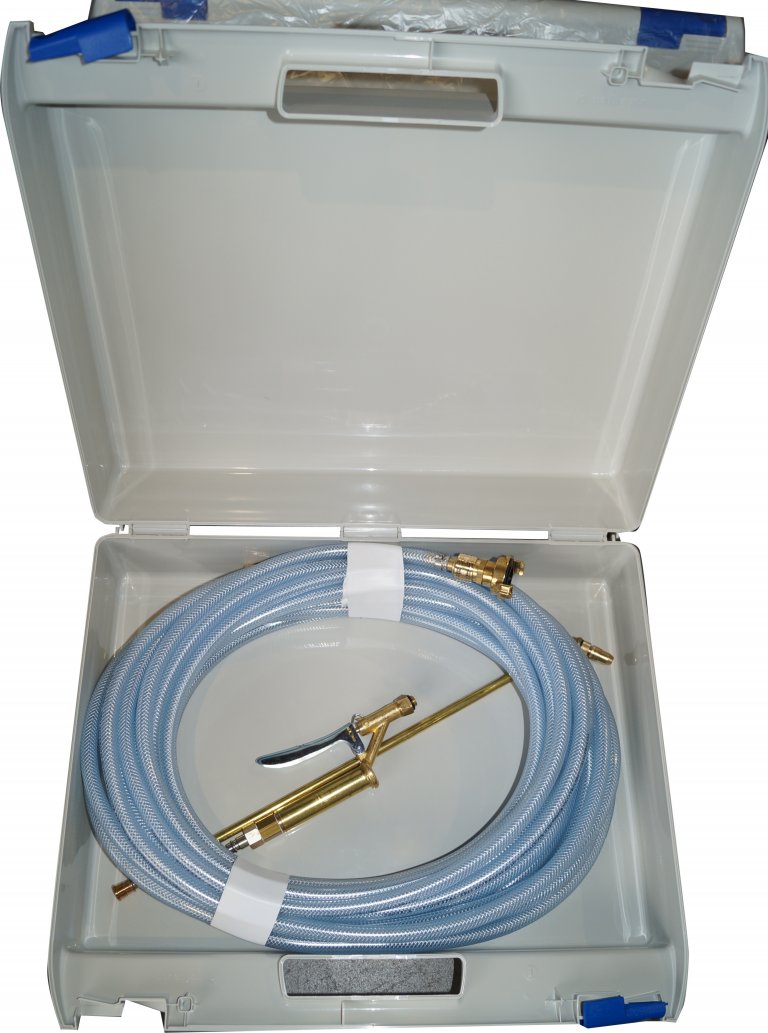

Spray set for inoBEAM M8

Spray set for inoBEAM M8

for any water-based, unfilled base paints and primers and unfilled anti-porosity treatments.
Scope of delivery:
Spray lance, fabric hose, plastic case

Spray set for inoBEAM M8 (Article No. 10044183)

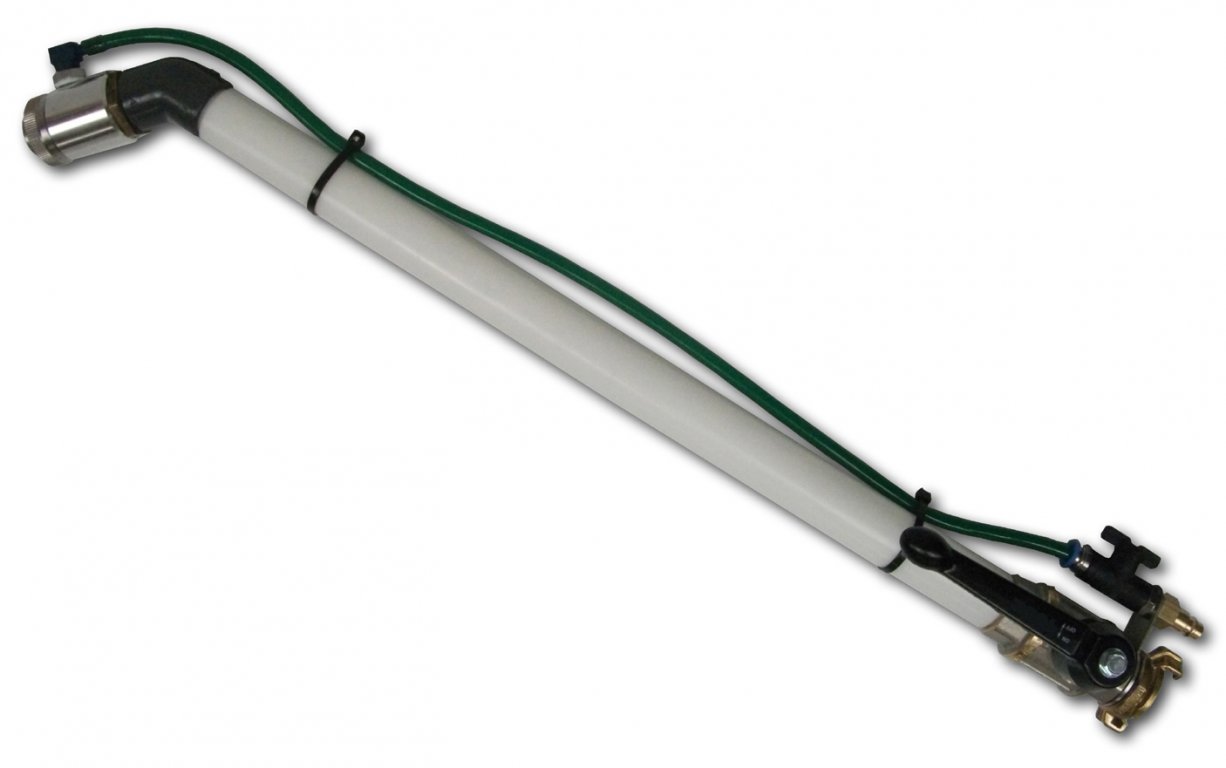

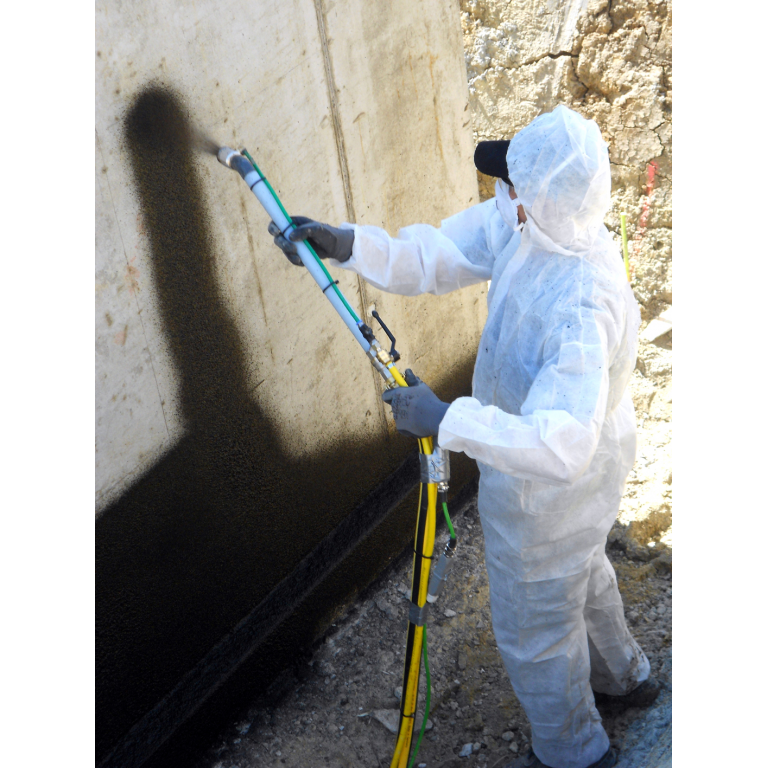

Angled spray head with GEKA coupling

Angled spray head with GEKA coupling

  • E.g. for spraying bitumen, etc.
  • Length: 65 cm
  • At an angle of 45°

Scope of delivery:
Spray head including 8 mm nozzle

Angled spray head with GEKA coupling (Article No. 10039457)

(Article No. 10044317)

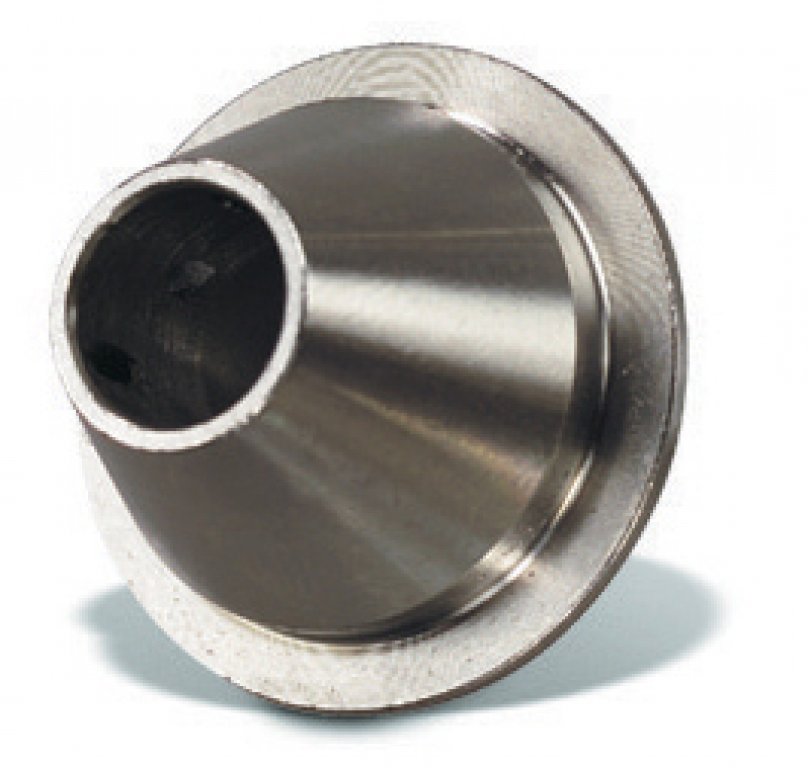

Nozzles for Item no. 10039322 / 10039887 / 10039457

Nozzles for Item no. 10039322 / 10039887 / 10039457

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)

  • Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10044450)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10044445)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10044446)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10044447)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10044448)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10044449)

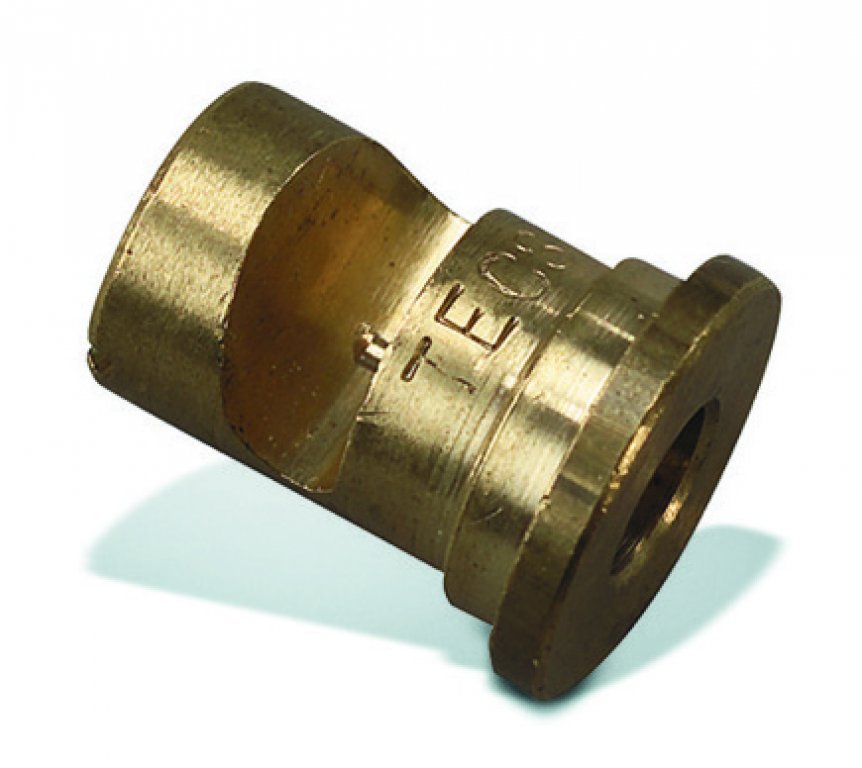

Nozzles for spray pipe short in a set ( 10012707)

Nozzles for spray pipe short in a set ( 10012707)

  • Made of stainless steel

Nozzles - Ø 4,5 mm (Article No. 10024060)

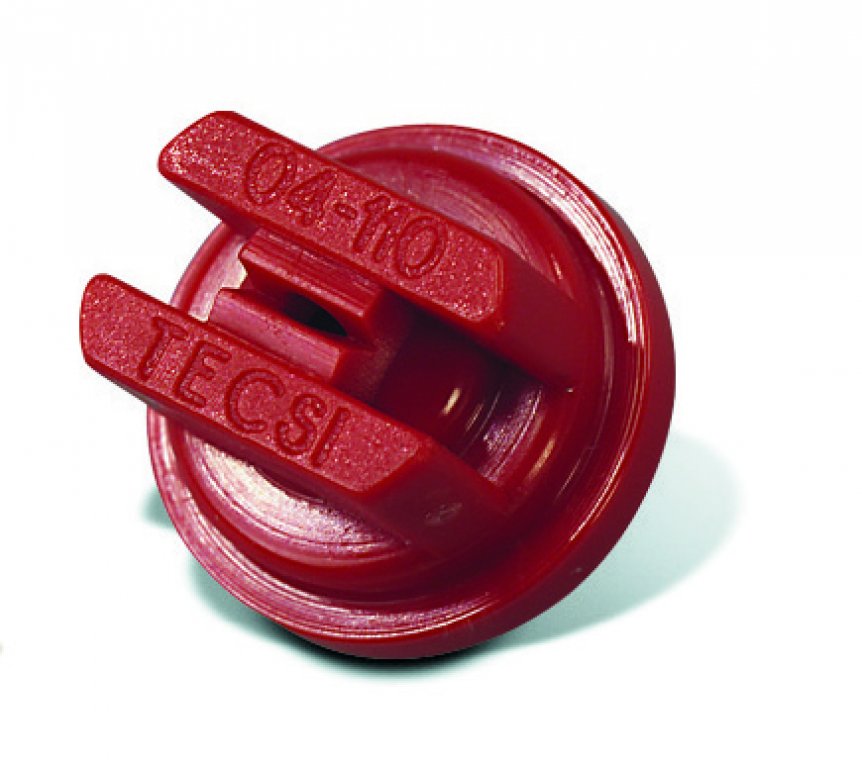

Nozzles - Ø 4,5 mm - Slot nozzle (for paint) (Article No. 10024202)
Nozzles- Ø 10,5 mm (Article No. 10024058)
Nozzles- Ø 6,5 mm (Article No. 10024062)
Nozzles- Ø 8,5 mm (Article No. 10024064)

(Article No. 10040422)

(Article No. 10015116)

(Article No. 10015069)

(Article No. 10015021)

(Article No. 10014979)

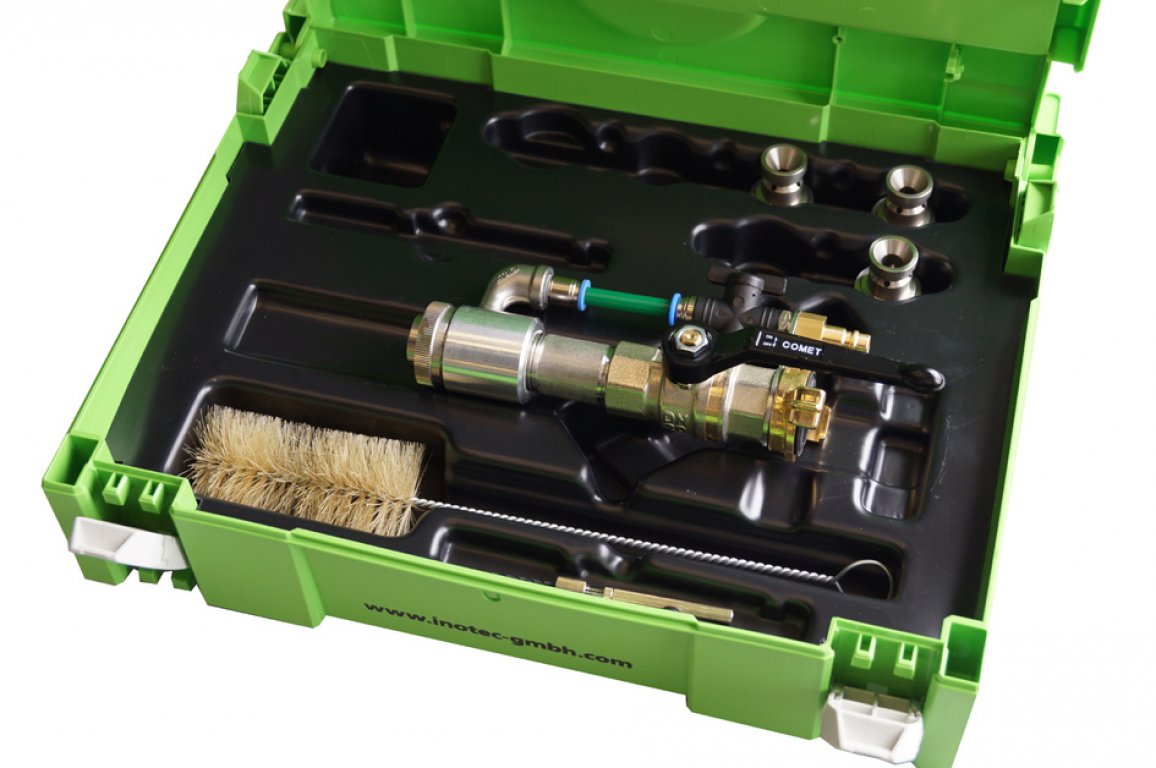

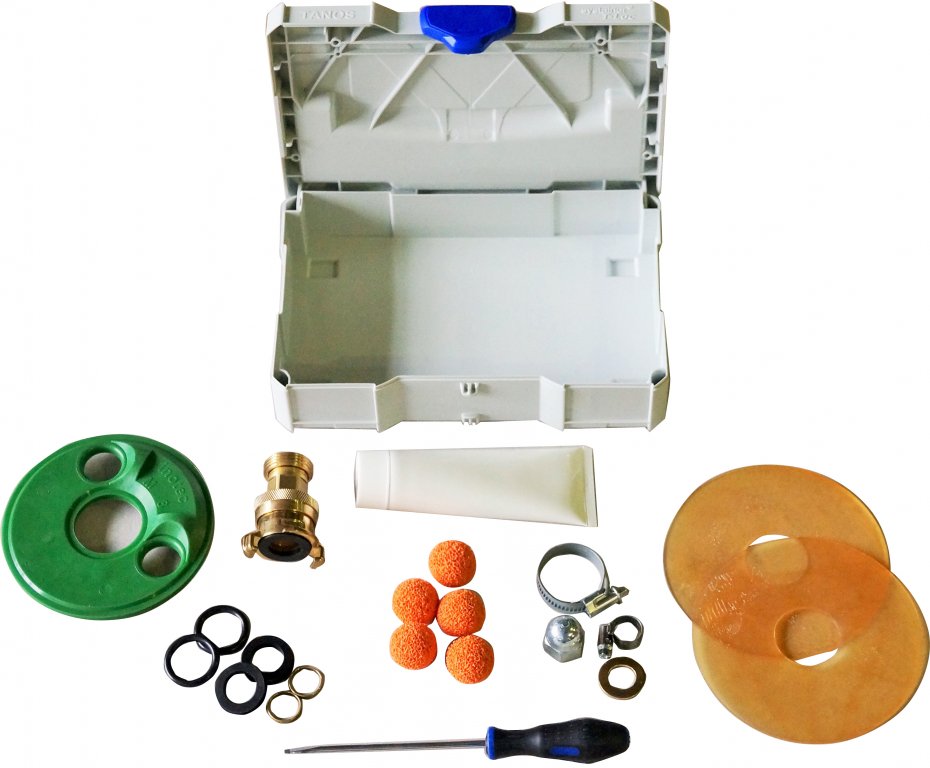

inoBEAM M 8 service systainer

inoBEAM M 8 service systainer

  • Contains all the key wearing parts and accessories such as the diaphragm, conveyor disc, GEKA couplings, seals, etc., for rapid replacement on the construction site.

inoBEAM M 8 service systainer (Article No. 10042613)

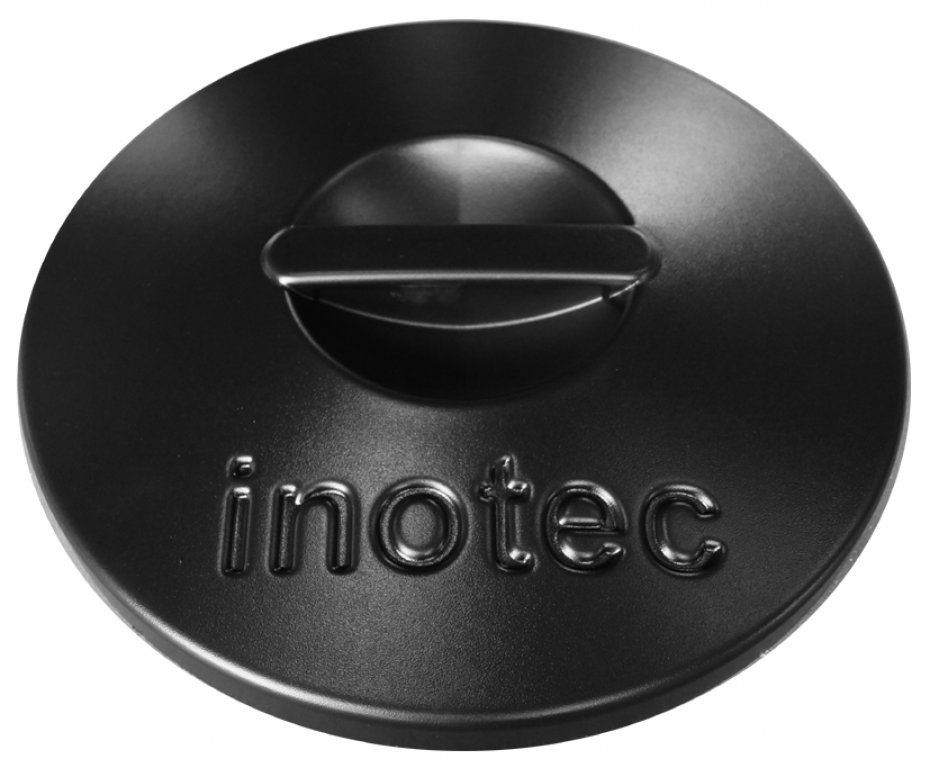

Cover for material hopper

Cover for material hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for material hopper (Article No. 10011830)

(Article No. 10011958)

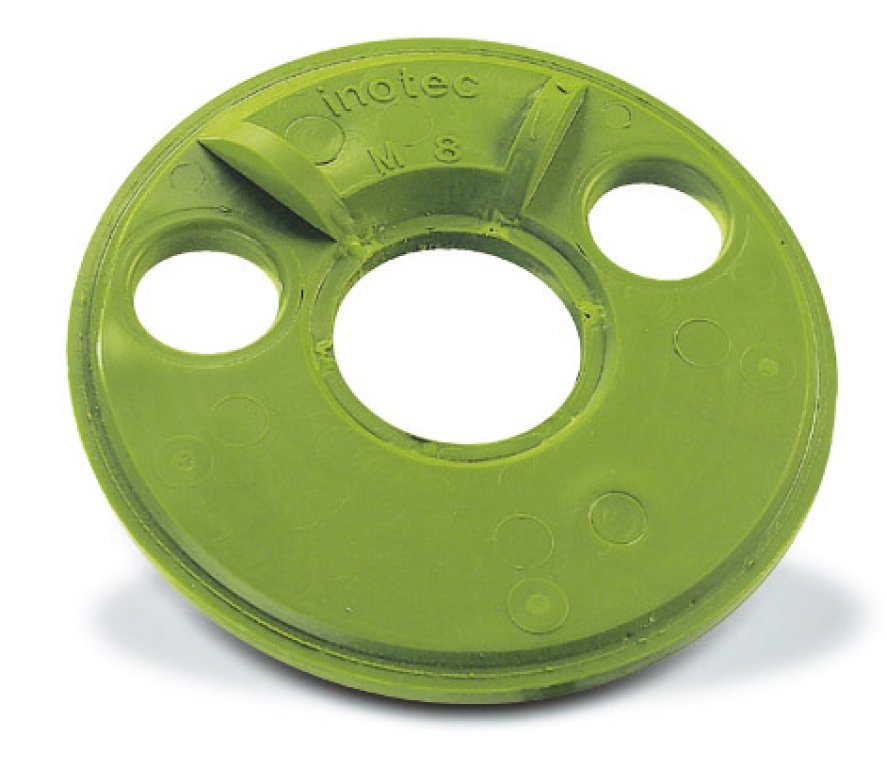

Green conveyor disc

Green conveyor disc

Green conveyor disc (Article No. 10011858)

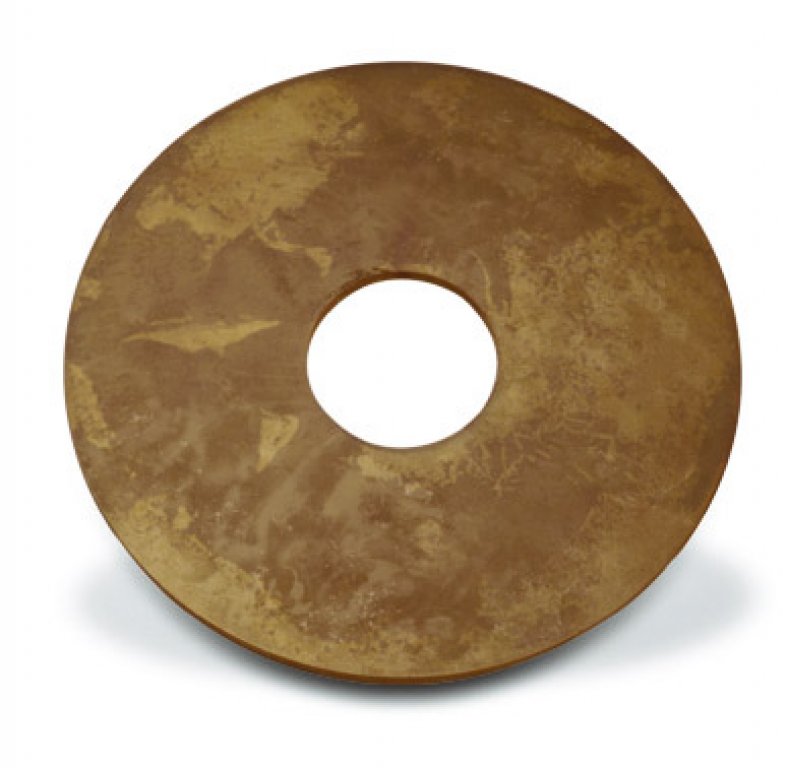

Diaphragm (price per pair)

Diaphragm (price per pair)

Diaphragm (Article No. 10011890)

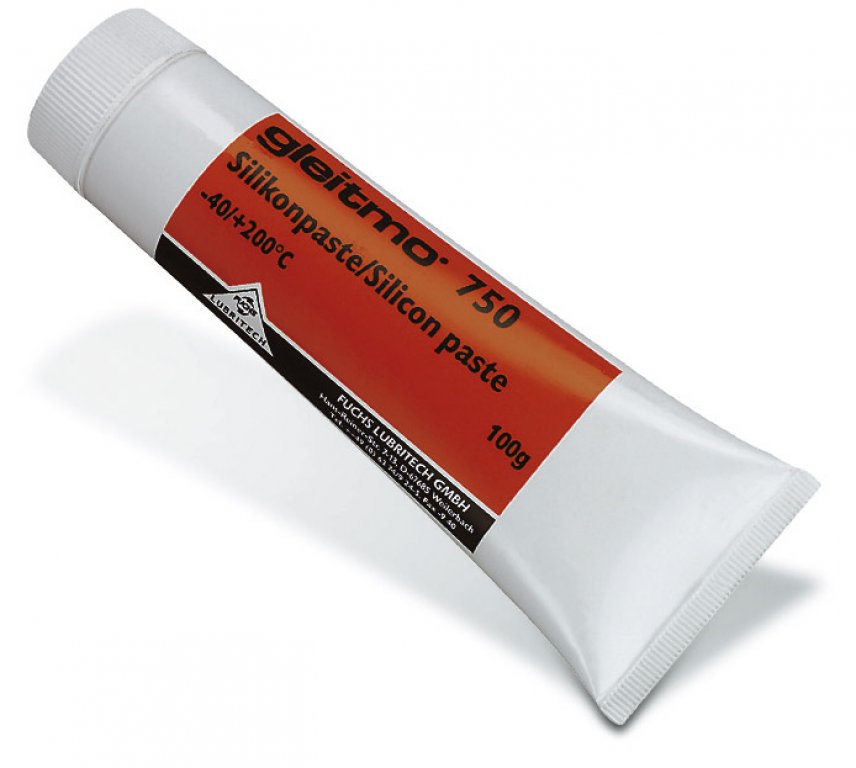

GLEITMO silicone paste

GLEITMO silicone paste

  • 100 g tube
  • For inoBEAM M8 diaphragm

GLEITMO silicone paste (Article No. 10004505)
Air quantity controller with EWO couplings

Air quantity controller with EWO couplings

  • For precisely adjusting the air quantity when spraying.
  • Is connected between the air hose and spraying device.

Air quantity controller with EWO couplings (Article No. 10017793)

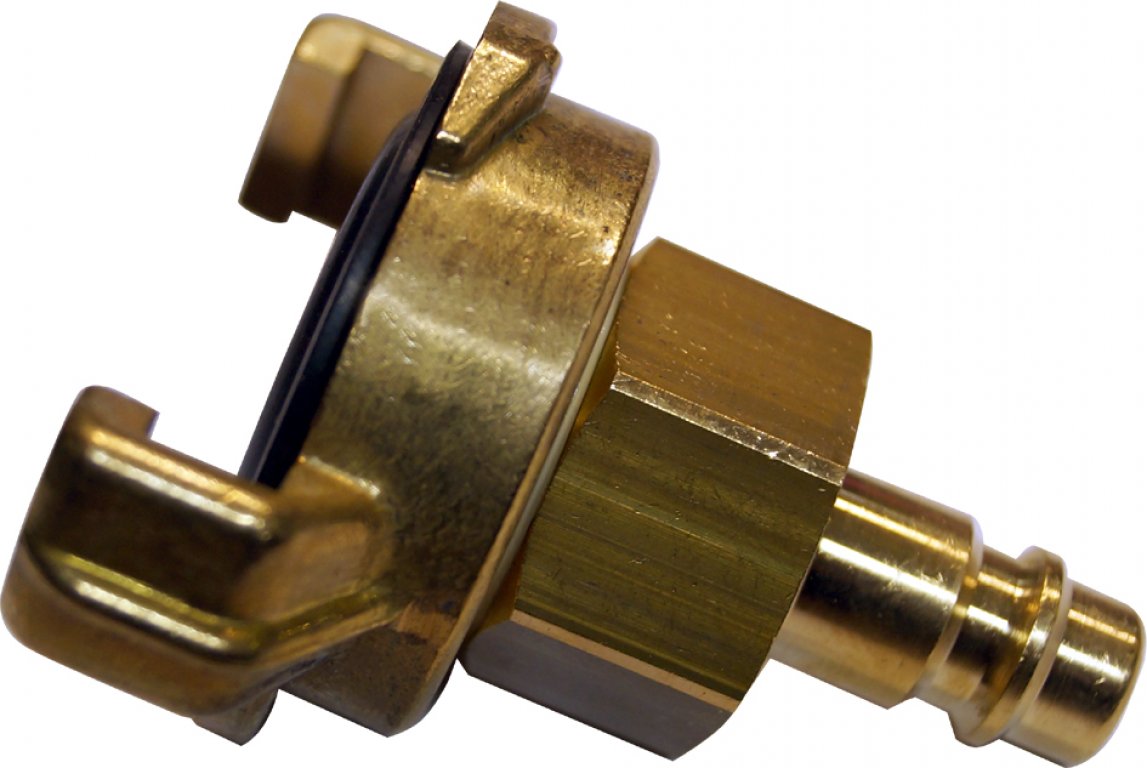

Connecting coupling for compressors

Connecting coupling for compressors

  • EWO V-piece on GEKA

Connecting coupling for compressors (Article No. 10022353)

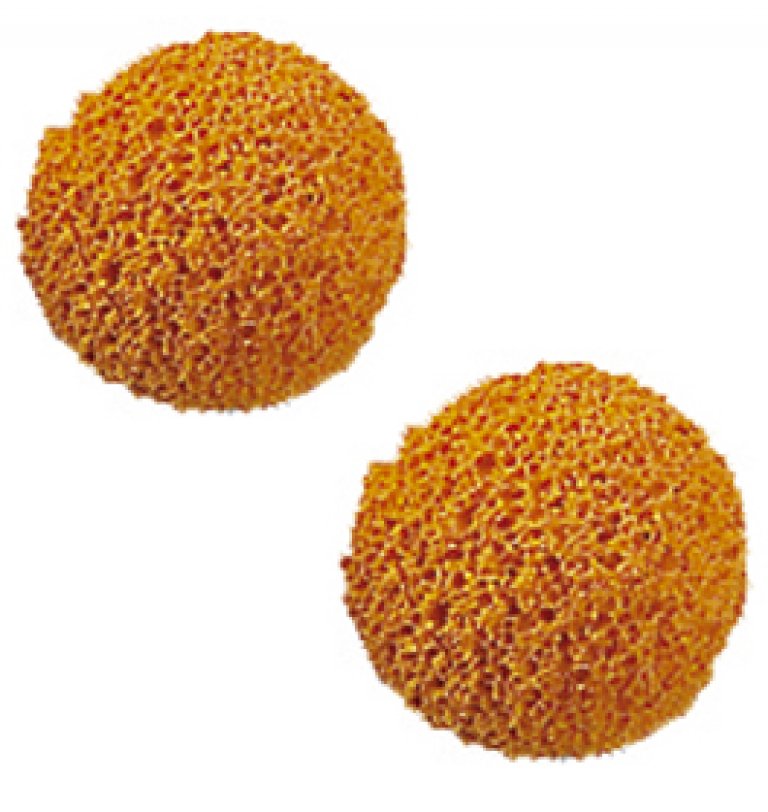

Sponge balls (soft version)

Sponge balls (soft version)

  • For cleaningmaterial / mortar hoses

Sponge balls (soft version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-004)
KAESER 230 V Compressor Premium Car 450/30W

KAESER 230 V Compressor Premium Car 450/30W

The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.

Technical data:

Operating pressure: 10 bar
Suction capacity: 450 l/min
Output: 2,2 kW
Dimensions (L x W x H): 870 x 560 x 590 mm
Weight: 86 kg

KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)

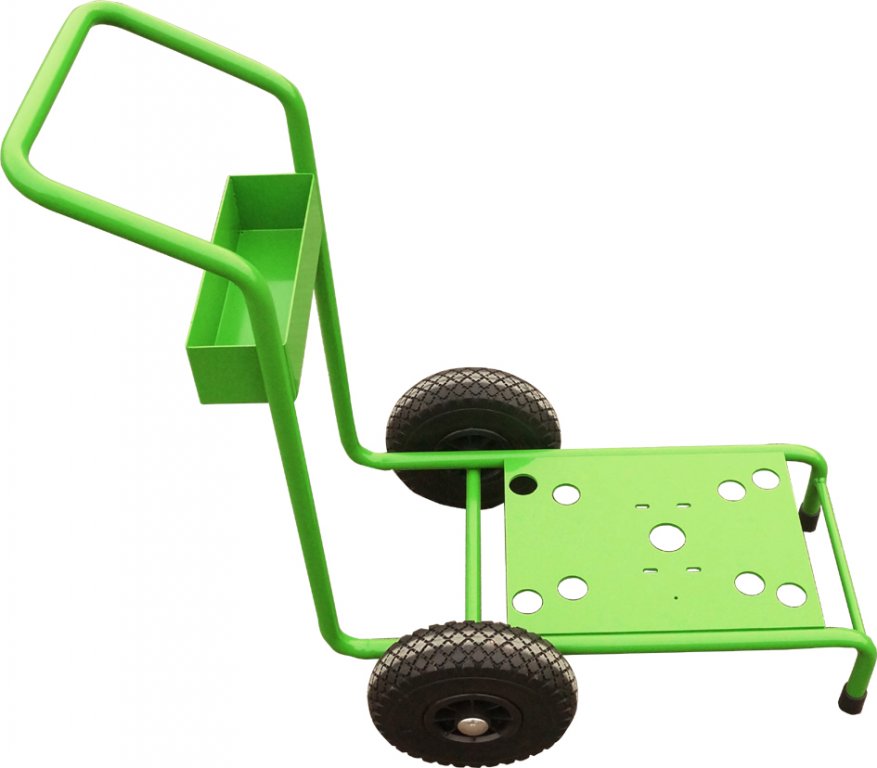

Trolley with 2 plastic wheels for inoSPRAY A4000 and A5000 airless device

Trolley with 2 plastic wheels for inoSPRAY A4000 and A5000 airless device

Trolley with 2 plastic wheels for inoBEAM M8 delivery pump (Article No. 10030015)
230 V INOTEC Compact 330 compressor

230 V INOTEC Compact 330 compressor

The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.

Technical data:
Operating pressure: 10 bar
Suction capacity: 330 l/min
Output: 2,05 kW
Dimensions (L x W x H): 396 x 473 x 598 mm
Weight: 32 kg

230 V INOTEC Compact 330 compressor (Article No. 10034389)
Connection unit for 2 INOTEC Compact 330 compressors

Connection unit for 2 INOTEC Compact 330 compressors

consisting of check valve and EWO coupling

  • 2 x V parts
  • 1 x M part

Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)

Inquiry: inoBEAM M8



* Required
