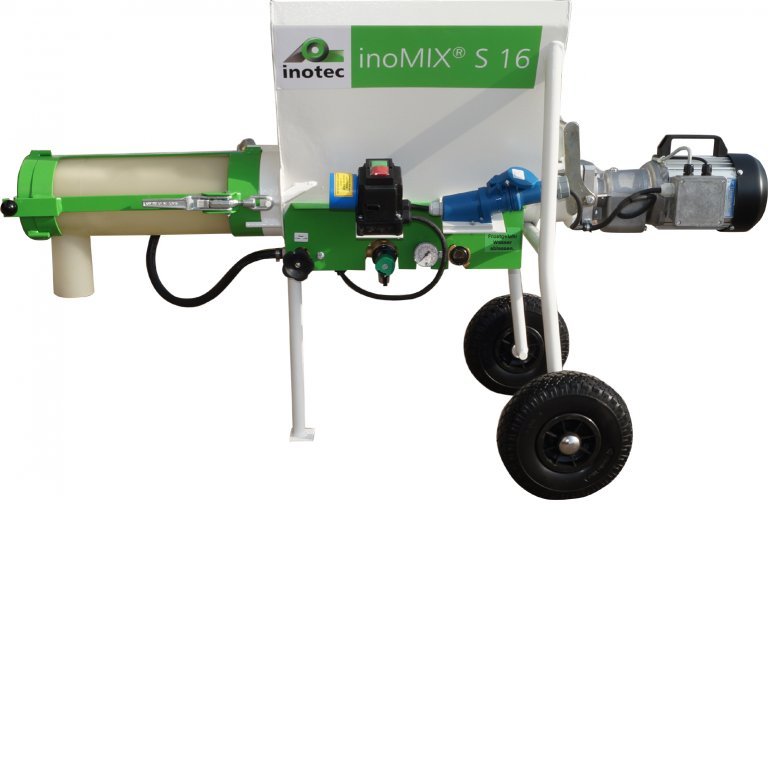

The compact and handy 230 V* continuous mixer for powdery materials
Benefits at a glance
- Considerable time saving compared with mixing material using handheld agitators
- Simple operation
- Constant material consistency
- High mixing rate (approx. 1 bucket/minute)
- The material hopper is the heaviest individual part, weighing 27 kg
- Simple one-person transport
- The machine can be quickly dismantled into individual components without the need for tools, which makes for short setup times
- Low-maintenance technology
- PU mixing pipe (detachable)
- Simple cleaning
- Compatible with delivery pumps

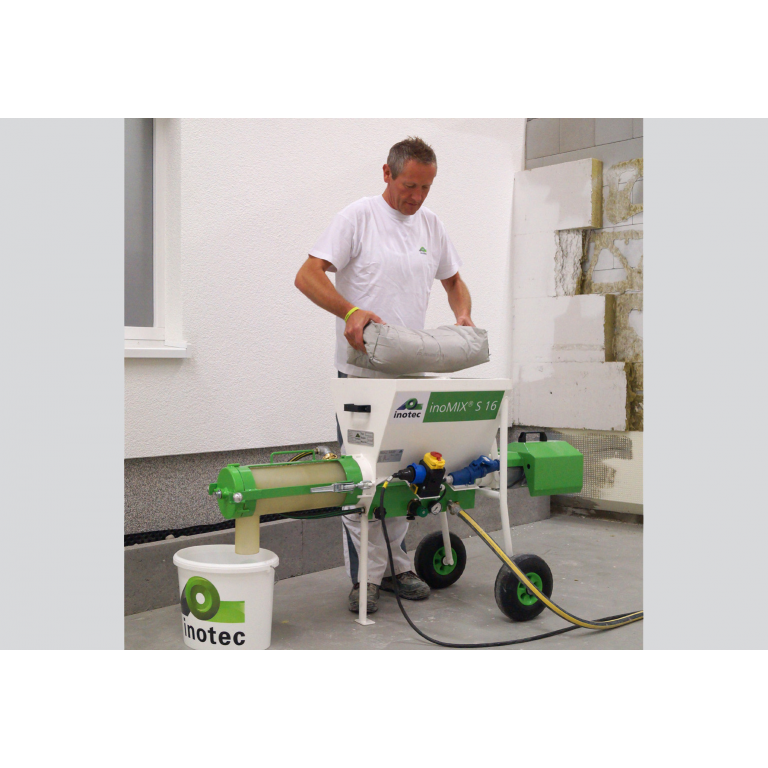

The simple handling of the newly developed inoMIX S16 continuous mixer is revolutionising the mixing of powdery materials. It is handy, powerful and can be assembled and dismantled again in just a few steps.
The fact that the inoMIX S16 is also suitable for tough materials, such as earth-moist concrete screed, deserves special mention.
_______________
* The machine is also available in 110 V
Video
Service details
Services
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 1,1 |
| Mixing performance | l/min | max. 16 |
| Material container | l | 45 |
| Machine technique | Mixers | |
| Dimensions (L x W x H) | mm | 1470 x 600 x 885 |
| Weight | kg | approx. 58 |
inoMIX S16 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery
inoMIX S16
Item no. 10039462
- Frame
- 2 running wheels
- Material hopper
- Gear motor
- PU mixing pipe
- Mixing shaft
- Metering shaft
- Water fitting
- Operating instructions
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)

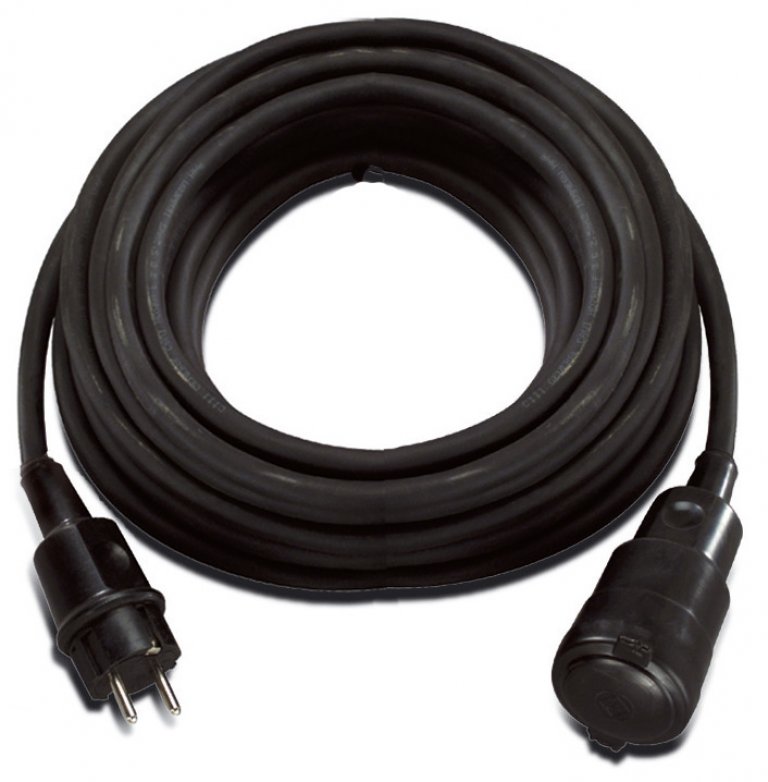

230 V / 3 x 2.5 mm² extension cable
- 16 A Schuko plug and coupling
230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)

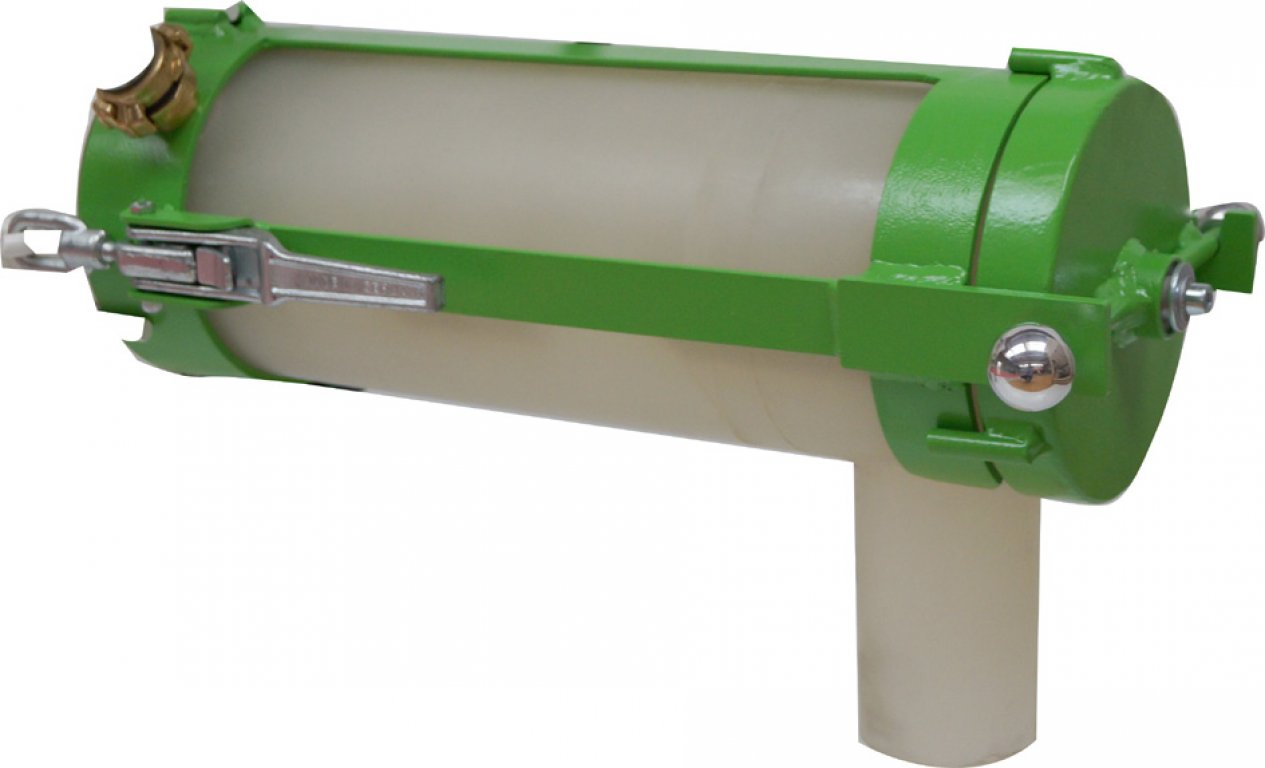

PU mixing pipe for inoMIX S16
- Including mixing shaft, mixing pipe cover and holders
PU mixing pipe for inoMIX S16 (Article No. 10039949)

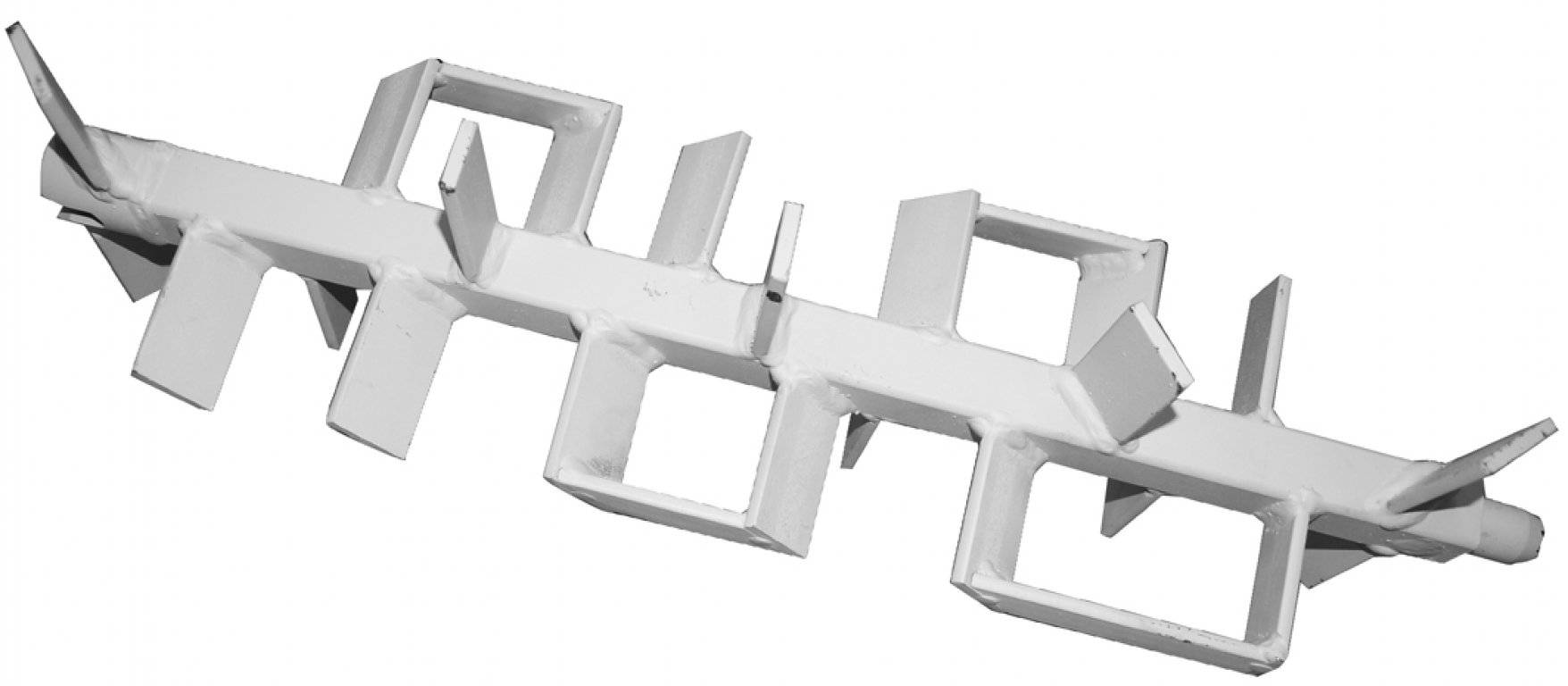

Mixing shaft for inoMIX S16
Mixing shaft for inoMIX S16 (Article No. 10039948)

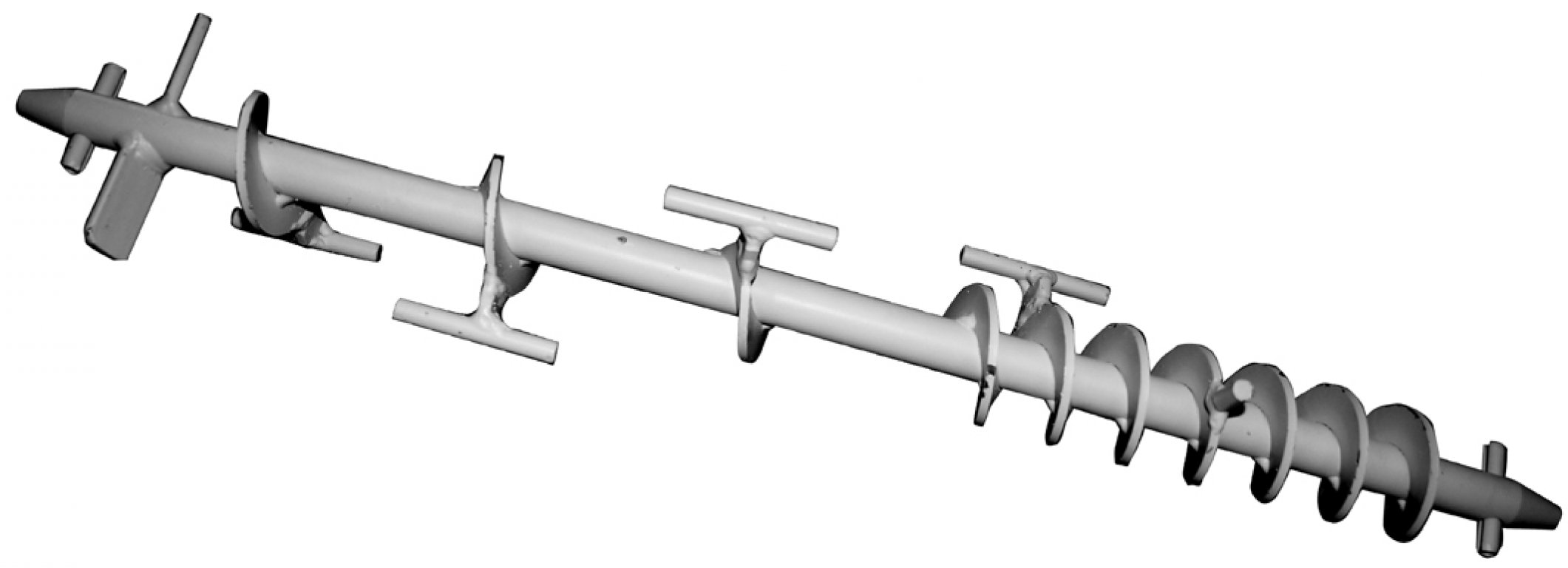

Metering shaft for inoMIX S16
- complete with two dowel pins (M8 x 50)
Metering shaft for inoMIX S16 - complete with two dowel pins (M8 x 50) (Article No. 10039947)
Flow meter with holder
- For visual control of the water volume
Flow meter with holder (100 - 1.000 l) (Article No. 10040799)
